generate streamline in arbitrary dataset More...
#include <vtkStreamLine.h>

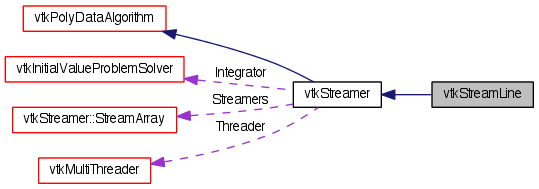

Public Types | |
| typedef vtkStreamer | Superclass |
Public Member Functions | |
| virtual int | IsA (const char *type) |
| vtkStreamLine * | NewInstance () const |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| virtual void | SetStepLength (double) |
| virtual double | GetStepLength () |
Static Public Member Functions | |
| static int | IsTypeOf (const char *type) |
| static vtkStreamLine * | SafeDownCast (vtkObjectBase *o) |
| static vtkStreamLine * | New () |
Protected Member Functions | |
| virtual vtkObjectBase * | NewInstanceInternal () const |
| vtkStreamLine () | |
| ~vtkStreamLine () | |
| virtual int | RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
Protected Attributes | |
| double | StepLength |
Detailed Description
generate streamline in arbitrary dataset
vtkStreamLine is a filter that generates a streamline for an arbitrary dataset. A streamline is a line that is everywhere tangent to the vector field. Scalar values also are calculated along the streamline and can be used to color the line. Streamlines are calculated by integrating from a starting point through the vector field. Integration can be performed forward in time (see where the line goes), backward in time (see where the line came from), or in both directions. It also is possible to compute vorticity along the streamline. Vorticity is the projection (i.e., dot product) of the flow rotation on the velocity vector, i.e., the rotation of flow around the streamline.
vtkStreamLine defines the instance variable StepLength. This parameter controls the time increment used to generate individual points along the streamline(s). Smaller values result in more line primitives but smoother streamlines. The StepLength instance variable is defined in terms of time (i.e., the distance that the particle travels in the specified time period). Thus, the line segments will be smaller in areas of low velocity and larger in regions of high velocity. (NOTE: This is different than the IntegrationStepLength defined by the superclass vtkStreamer. IntegrationStepLength is used to control integration step size and is expressed as a fraction of the cell length.) The StepLength instance variable is important because subclasses of vtkStreamLine (e.g., vtkDashedStreamLine) depend on this value to build their representation.
- Examples:
- vtkStreamLine (Examples)
- Tests:
- vtkStreamLine (Tests)
Definition at line 58 of file vtkStreamLine.h.
Member Typedef Documentation
| typedef vtkStreamer vtkStreamLine::Superclass |
Reimplemented from vtkStreamer.
Reimplemented in vtkDashedStreamLine.
Definition at line 61 of file vtkStreamLine.h.
Constructor & Destructor Documentation
| vtkStreamLine::vtkStreamLine | ( | ) | [protected] |
| vtkStreamLine::~vtkStreamLine | ( | ) | [inline, protected] |
Definition at line 77 of file vtkStreamLine.h.
Member Function Documentation
| static int vtkStreamLine::IsTypeOf | ( | const char * | name | ) | [static] |
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkStreamer.
Reimplemented in vtkDashedStreamLine.
| virtual int vtkStreamLine::IsA | ( | const char * | name | ) | [virtual] |
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkStreamer.
Reimplemented in vtkDashedStreamLine.
| static vtkStreamLine* vtkStreamLine::SafeDownCast | ( | vtkObjectBase * | o | ) | [static] |
Reimplemented from vtkStreamer.
Reimplemented in vtkDashedStreamLine.
| virtual vtkObjectBase* vtkStreamLine::NewInstanceInternal | ( | ) | const [protected, virtual] |
Reimplemented from vtkStreamer.
Reimplemented in vtkDashedStreamLine.
| vtkStreamLine* vtkStreamLine::NewInstance | ( | ) | const |
Reimplemented from vtkStreamer.
Reimplemented in vtkDashedStreamLine.
| void vtkStreamLine::PrintSelf | ( | ostream & | os, |
| vtkIndent | indent | ||
| ) | [virtual] |
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkStreamer.
Reimplemented in vtkDashedStreamLine.
| static vtkStreamLine* vtkStreamLine::New | ( | ) | [static] |
Construct object with step size set to 1.0.
Reimplemented from vtkPolyDataAlgorithm.
Reimplemented in vtkDashedStreamLine.
| virtual void vtkStreamLine::SetStepLength | ( | double | ) | [virtual] |
Specify the length of a line segment. The length is expressed in terms of elapsed time. Smaller values result in smoother appearing streamlines, but greater numbers of line primitives.
| virtual double vtkStreamLine::GetStepLength | ( | ) | [virtual] |
Specify the length of a line segment. The length is expressed in terms of elapsed time. Smaller values result in smoother appearing streamlines, but greater numbers of line primitives.
| virtual int vtkStreamLine::RequestData | ( | vtkInformation * | request, |
| vtkInformationVector ** | inputVector, | ||
| vtkInformationVector * | outputVector | ||
| ) | [protected, virtual] |
This is called by the superclass. This is the method you should override.
Reimplemented from vtkPolyDataAlgorithm.
Reimplemented in vtkDashedStreamLine.
Member Data Documentation
double vtkStreamLine::StepLength [protected] |
Definition at line 83 of file vtkStreamLine.h.
The documentation for this class was generated from the following file:
- dox/Filters/FlowPaths/vtkStreamLine.h
