Return specified piece, including specified number of ghost levels. More...

#include <vtkTransmitUnstructuredGridPiece.h>

Inheritance diagram for vtkTransmitUnstructuredGridPiece:

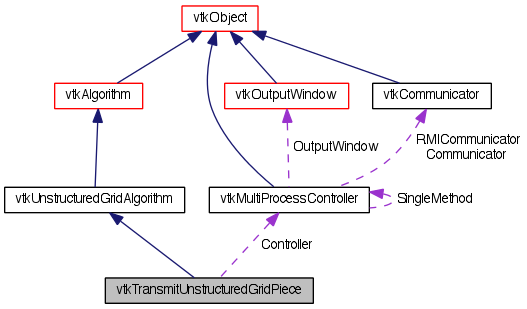

Collaboration diagram for vtkTransmitUnstructuredGridPiece:

Public Types
typedef vtkUnstructuredGridAlgorithm	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkTransmitUnstructuredGridPiece *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetController (vtkMultiProcessController *)
virtual vtkMultiProcessController *	GetController ()

virtual void	SetCreateGhostCells (int)
virtual int	GetCreateGhostCells ()
virtual void	CreateGhostCellsOn ()
virtual void	CreateGhostCellsOff ()
Static Public Member Functions
static vtkTransmitUnstructuredGridPiece *	New ()
static int	IsTypeOf (const char *type)
static vtkTransmitUnstructuredGridPiece *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkTransmitUnstructuredGridPiece ()
	~vtkTransmitUnstructuredGridPiece ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
void	RootExecute (vtkUnstructuredGrid input, vtkUnstructuredGrid output, vtkInformation *outInfo)
void	SatelliteExecute (int procId, vtkUnstructuredGrid output, vtkInformation outInfo)
virtual int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	RequestUpdateExtent (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
int	CreateGhostCells
vtkMultiProcessController *	Controller

Detailed Description

Return specified piece, including specified number of ghost levels.

This filter updates the appropriate piece by requesting the piece from process 0. Process 0 always updates all of the data. It is important that Execute get called on all processes, otherwise the filter will deadlock.

Definition at line 32 of file vtkTransmitUnstructuredGridPiece.h.

Member Typedef Documentation

typedef vtkUnstructuredGridAlgorithm vtkTransmitUnstructuredGridPiece::Superclass

Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 36 of file vtkTransmitUnstructuredGridPiece.h.

Constructor & Destructor Documentation

vtkTransmitUnstructuredGridPiece::vtkTransmitUnstructuredGridPiece ( ) [protected]

vtkTransmitUnstructuredGridPiece::~vtkTransmitUnstructuredGridPiece ( ) [protected]

Member Function Documentation

static vtkTransmitUnstructuredGridPiece* vtkTransmitUnstructuredGridPiece::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkTransmitUnstructuredGridPiece::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkTransmitUnstructuredGridPiece::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkTransmitUnstructuredGridPiece* vtkTransmitUnstructuredGridPiece::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual vtkObjectBase* vtkTransmitUnstructuredGridPiece::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

vtkTransmitUnstructuredGridPiece* vtkTransmitUnstructuredGridPiece::NewInstance ( ) const

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkTransmitUnstructuredGridPiece::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkTransmitUnstructuredGridPiece::SetController ( vtkMultiProcessController * ) [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual vtkMultiProcessController* vtkTransmitUnstructuredGridPiece::GetController ( ) [virtual]

By defualt this filter uses the global controller, but this method can be used to set another instead.

virtual void vtkTransmitUnstructuredGridPiece::SetCreateGhostCells ( int ) [virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitUnstructuredGridPiece::GetCreateGhostCells ( ) [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitUnstructuredGridPiece::CreateGhostCellsOn ( ) [virtual]

Turn on/off creating ghost cells (on by default).

virtual void vtkTransmitUnstructuredGridPiece::CreateGhostCellsOff ( ) [virtual]

Turn on/off creating ghost cells (on by default).

virtual int vtkTransmitUnstructuredGridPiece::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)		`[protected, virtual]`

This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkTransmitUnstructuredGridPiece::RootExecute	(	vtkUnstructuredGrid *	input,
		vtkUnstructuredGrid *	output,
		vtkInformation *	outInfo
	)		`[protected]`

void vtkTransmitUnstructuredGridPiece::SatelliteExecute	(	int	procId,
		vtkUnstructuredGrid *	output,
		vtkInformation *	outInfo
	)		`[protected]`

virtual int vtkTransmitUnstructuredGridPiece::RequestInformation	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)		`[protected, virtual]`

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkTransmitUnstructuredGridPiece::RequestUpdateExtent	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)		`[protected, virtual]`
