read EDS Unigraphics facet files More...

#include <vtkUGFacetReader.h>

Inheritance diagram for vtkUGFacetReader:

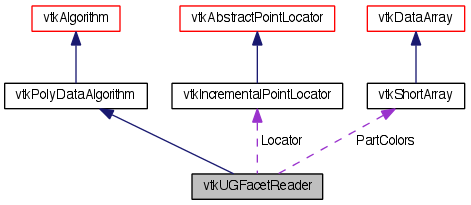

Collaboration diagram for vtkUGFacetReader:

Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkUGFacetReader *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
unsigned long	GetMTime ()
int	GetNumberOfParts ()
short	GetPartColorIndex (int partId)
void	CreateDefaultLocator ()

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()

virtual void	SetPartNumber (int)
virtual int	GetPartNumber ()

virtual void	SetMerging (int)
virtual int	GetMerging ()
virtual void	MergingOn ()
virtual void	MergingOff ()

void	SetLocator (vtkIncrementalPointLocator *locator)
virtual vtkIncrementalPointLocator *	GetLocator ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkUGFacetReader *	SafeDownCast (vtkObjectBase *o)
static vtkUGFacetReader *	New ()
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkUGFacetReader ()
	~vtkUGFacetReader ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
char *	FileName
vtkShortArray *	PartColors
int	PartNumber
int	Merging
vtkIncrementalPointLocator *	Locator

Detailed Description

read EDS Unigraphics facet files

vtkUGFacetReader is a source object that reads Unigraphics facet files. Unigraphics is a solid modeling system; facet files are the polygonal plot files it uses to create 3D plots.

Definition at line 32 of file vtkUGFacetReader.h.

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkUGFacetReader::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 35 of file vtkUGFacetReader.h.

Constructor & Destructor Documentation

vtkUGFacetReader::vtkUGFacetReader ( ) [protected]

vtkUGFacetReader::~vtkUGFacetReader ( ) [protected]

Member Function Documentation

static int vtkUGFacetReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkUGFacetReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkUGFacetReader* vtkUGFacetReader::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

virtual vtkObjectBase* vtkUGFacetReader::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.

vtkUGFacetReader* vtkUGFacetReader::NewInstance ( ) const

Reimplemented from vtkPolyDataAlgorithm.

void vtkUGFacetReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkUGFacetReader* vtkUGFacetReader::New ( ) [static]

Construct object to extract all parts, and with point merging turned on.

Reimplemented from vtkPolyDataAlgorithm.

unsigned long vtkUGFacetReader::GetMTime ( ) [virtual]

Overload standard modified time function. If locator is modified, then this object is modified as well.

Reimplemented from vtkObject.

virtual void vtkUGFacetReader::SetFileName ( const char * ) [virtual]

Specify Unigraphics file name.

virtual char* vtkUGFacetReader::GetFileName ( ) [virtual]

Specify Unigraphics file name.

int vtkUGFacetReader::GetNumberOfParts ( )

Special methods for interrogating the data file.

short vtkUGFacetReader::GetPartColorIndex ( int partId )

Retrieve color index for the parts in the file.

virtual void vtkUGFacetReader::SetPartNumber ( int ) [virtual]

Specify the desired part to extract. The part number must range between [0,NumberOfParts-1]. If the value is =(-1), then all parts will be extracted. If the value is <(-1), then no parts will be extracted but the part colors will be updated.

virtual int vtkUGFacetReader::GetPartNumber ( ) [virtual]

Specify the desired part to extract. The part number must range between [0,NumberOfParts-1]. If the value is =(-1), then all parts will be extracted. If the value is <(-1), then no parts will be extracted but the part colors will be updated.

virtual void vtkUGFacetReader::SetMerging ( int ) [virtual]

Turn on/off merging of points/triangles.

virtual int vtkUGFacetReader::GetMerging ( ) [virtual]

Turn on/off merging of points/triangles.

virtual void vtkUGFacetReader::MergingOn ( ) [virtual]

Turn on/off merging of points/triangles.

virtual void vtkUGFacetReader::MergingOff ( ) [virtual]

Turn on/off merging of points/triangles.

void vtkUGFacetReader::SetLocator ( vtkIncrementalPointLocator * locator )

Specify a spatial locator for merging points. By default an instance of vtkMergePoints is used.

virtual vtkIncrementalPointLocator* vtkUGFacetReader::GetLocator ( ) [virtual]

Specify a spatial locator for merging points. By default an instance of vtkMergePoints is used.

void vtkUGFacetReader::CreateDefaultLocator ( )

Create default locator. Used to create one when none is specified.

int vtkUGFacetReader::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)		`[protected, virtual]`
