vtkUnstructuredGridHomogeneousRayIntegrator Class Reference

performs peicewise constant ray integration. More...

#include <vtkUnstructuredGridHomogeneousRayIntegrator.h>

Inheritance diagram for vtkUnstructuredGridHomogeneousRayIntegrator:
Inheritance graph
[legend]

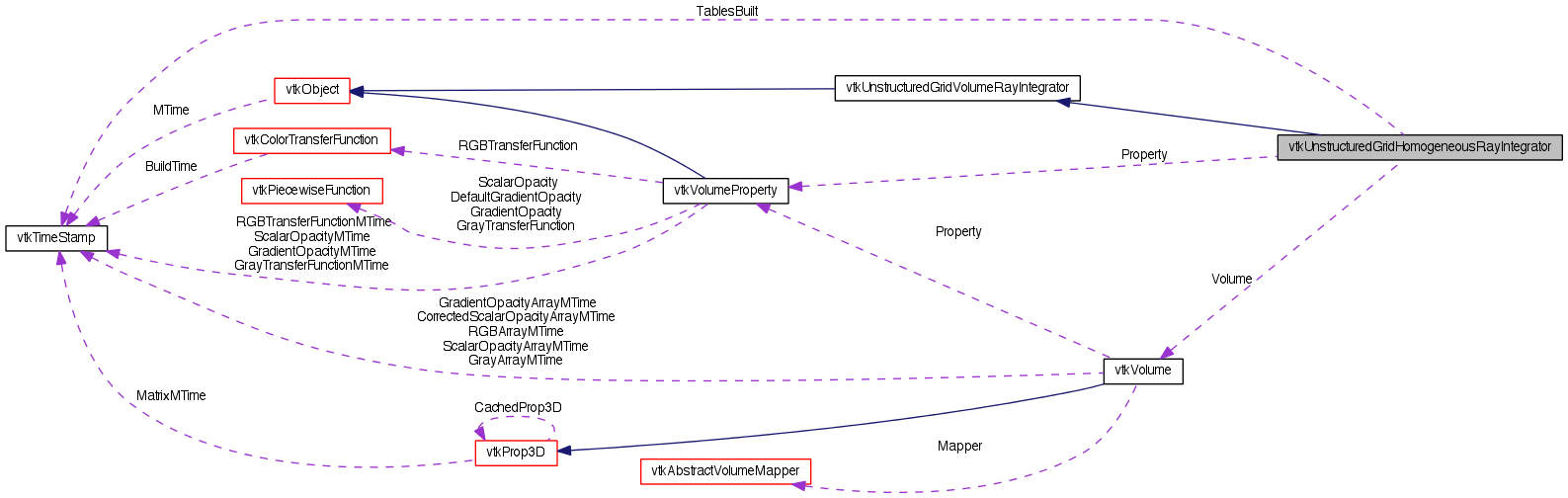

Collaboration diagram for vtkUnstructuredGridHomogeneousRayIntegrator:
Collaboration graph
[legend]

List of all members.

Public Types

typedef
vtkUnstructuredGridVolumeRayIntegrator
Superclass

Public Member Functions

virtual int IsA (const char *type)
vtkUnstructuredGridHomogeneousRayIntegratorNewInstance () const
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual void Initialize (vtkVolume *volume, vtkDataArray *scalars)
virtual void Integrate (vtkDoubleArray *intersectionLengths, vtkDataArray *nearIntersections, vtkDataArray *farIntersections, float color[4])
virtual void SetTransferFunctionTableSize (int)
virtual int GetTransferFunctionTableSize ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkUnstructuredGridHomogeneousRayIntegrator
SafeDownCast (vtkObjectBase *o)
static
vtkUnstructuredGridHomogeneousRayIntegrator
New ()

Protected Member Functions

virtual vtkObjectBaseNewInstanceInternal () const
 vtkUnstructuredGridHomogeneousRayIntegrator ()
 ~vtkUnstructuredGridHomogeneousRayIntegrator ()
virtual void GetTransferFunctionTables (vtkDataArray *scalars)

Protected Attributes

vtkVolumeVolume
vtkVolumePropertyProperty
int NumComponents
float ** ColorTable
float ** AttenuationTable
doubleTableShift
doubleTableScale
vtkTimeStamp TablesBuilt
int UseAverageColor
int TransferFunctionTableSize

Detailed Description

performs peicewise constant ray integration.

vtkUnstructuredGridHomogeneousRayIntegrator performs homogeneous ray integration. This is a good method to use when volume rendering scalars that are defined on cells.

Tests:
vtkUnstructuredGridHomogeneousRayIntegrator (Tests)

Definition at line 47 of file vtkUnstructuredGridHomogeneousRayIntegrator.h.


Member Typedef Documentation


Constructor & Destructor Documentation


Member Function Documentation

static int vtkUnstructuredGridHomogeneousRayIntegrator::IsTypeOf ( const char *  name) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

virtual int vtkUnstructuredGridHomogeneousRayIntegrator::IsA ( const char *  name) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual void vtkUnstructuredGridHomogeneousRayIntegrator::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

virtual void vtkUnstructuredGridHomogeneousRayIntegrator::Initialize ( vtkVolume volume,
vtkDataArray scalars
) [virtual]

Set up the integrator with the given properties and scalars.

Implements vtkUnstructuredGridVolumeRayIntegrator.

virtual void vtkUnstructuredGridHomogeneousRayIntegrator::Integrate ( vtkDoubleArray intersectionLengths,
vtkDataArray nearIntersections,
vtkDataArray farIntersections,
float  color[4]
) [virtual]

Given a set of intersections (defined by the three arrays), compute the peicewise integration of the array in front to back order. /c intersectionLengths holds the lengths of each peicewise segment. /c nearIntersections and /c farIntersections hold the scalar values at the front and back of each segment. /c color should contain the RGBA value of the volume in front of the segments passed in, and the result will be placed back into /c color.

Implements vtkUnstructuredGridVolumeRayIntegrator.

For quick lookup, the transfer function is sampled into a table. This parameter sets how big of a table to use. By default, 1024 entries are used.

For quick lookup, the transfer function is sampled into a table. This parameter sets how big of a table to use. By default, 1024 entries are used.


Member Data Documentation


The documentation for this class was generated from the following file:
