X3D Exporter Writer. More...

#include <vtkX3DExporterWriter.h>

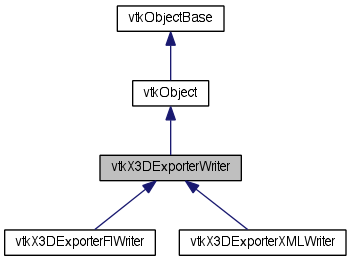

Inheritance diagram for vtkX3DExporterWriter:

Collaboration diagram for vtkX3DExporterWriter:

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkX3DExporterWriter *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	OpenFile (const char *file)=0
virtual int	OpenStream ()=0
char *	RegisterAndGetOutputString ()
virtual void	CloseFile ()=0
virtual void	Flush ()
virtual void	StartDocument ()=0
virtual void	EndDocument ()=0
virtual void	SetField (int attributeID, const char *value, bool mfstring=false)=0
virtual void	SetField (int attributeID, int)=0
virtual void	SetField (int attributeID, float)=0
virtual void	SetField (int attributeID, double)=0
virtual void	SetField (int attributeID, bool)=0
virtual void	SetField (int attributeID, int type, const double *a)=0
virtual void	SetField (int attributeID, int type, vtkDataArray *a)=0
virtual void	SetField (int attributeID, const double *values, size_t size)=0
virtual void	SetField (int attributeID, const int *values, size_t size, bool image=false)=0

virtual void	SetWriteToOutputString (int)
virtual int	GetWriteToOutputString ()
virtual void	WriteToOutputStringOn ()
virtual void	WriteToOutputStringOff ()

virtual int	GetOutputStringLength ()
virtual char *	GetOutputString ()
unsigned char *	GetBinaryOutputString ()

virtual void	StartNode (int nodeID)=0
virtual void	EndNode ()=0
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkX3DExporterWriter *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const

	vtkX3DExporterWriter ()
	~vtkX3DExporterWriter ()
Protected Attributes
char *	OutputString
int	OutputStringLength
int	WriteToOutputString

Detailed Description

X3D Exporter Writer.

vtkX3DExporterWriter is the definition for classes that implement a encoding for the X3D exporter

Definition at line 34 of file vtkX3DExporterWriter.h.

Member Typedef Documentation

typedef vtkObject vtkX3DExporterWriter::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

Definition at line 37 of file vtkX3DExporterWriter.h.

Constructor & Destructor Documentation

vtkX3DExporterWriter::vtkX3DExporterWriter ( ) [protected]

Sets the field specified with attributeID of the active node to the given value. The type of the field is specified with type Supported types: MFString virtual void SetField(int attributeID, int type, std::string) = 0;

vtkX3DExporterWriter::~vtkX3DExporterWriter ( ) [protected]

Sets the field specified with attributeID of the active node to the given value. The type of the field is specified with type Supported types: MFString virtual void SetField(int attributeID, int type, std::string) = 0;

Member Function Documentation

static int vtkX3DExporterWriter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

virtual int vtkX3DExporterWriter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

static vtkX3DExporterWriter* vtkX3DExporterWriter::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkObject.

Reimplemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

virtual vtkObjectBase* vtkX3DExporterWriter::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkObject.

Reimplemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

vtkX3DExporterWriter* vtkX3DExporterWriter::NewInstance ( ) const

Reimplemented from vtkObject.

Reimplemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

void vtkX3DExporterWriter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

virtual int vtkX3DExporterWriter::OpenFile ( const char * file ) [pure virtual]

Opens the file specified with file returns 1 if successful otherwise 0

Implemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

virtual int vtkX3DExporterWriter::OpenStream ( ) [pure virtual]

Init data support to be a stream instead of a file

Implemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

virtual void vtkX3DExporterWriter::SetWriteToOutputString ( int ) [virtual]

Enable writing to an OutputString instead of the default, a file.

virtual int vtkX3DExporterWriter::GetWriteToOutputString ( ) [virtual]

Enable writing to an OutputString instead of the default, a file.

virtual void vtkX3DExporterWriter::WriteToOutputStringOn ( ) [virtual]

Enable writing to an OutputString instead of the default, a file.

virtual void vtkX3DExporterWriter::WriteToOutputStringOff ( ) [virtual]

Enable writing to an OutputString instead of the default, a file.

virtual int vtkX3DExporterWriter::GetOutputStringLength ( ) [virtual]

When WriteToOutputString in on, then a string is allocated, written to, and can be retrieved with these methods. The string is deleted during the next call to write ...

virtual char* vtkX3DExporterWriter::GetOutputString ( ) [virtual]

When WriteToOutputString in on, then a string is allocated, written to, and can be retrieved with these methods. The string is deleted during the next call to write ...

unsigned char* vtkX3DExporterWriter::GetBinaryOutputString ( ) [inline]

When WriteToOutputString in on, then a string is allocated, written to, and can be retrieved with these methods. The string is deleted during the next call to write ...

Definition at line 60 of file vtkX3DExporterWriter.h.

char* vtkX3DExporterWriter::RegisterAndGetOutputString ( )

This convenience method returns the string, sets the IVAR to NULL, so that the user is responsible for deleting the string. I am not sure what the name should be, so it may change in the future.

virtual void vtkX3DExporterWriter::CloseFile ( ) [pure virtual]

Implemented in vtkX3DExporterXMLWriter, and vtkX3DExporterFIWriter.

virtual void vtkX3DExporterWriter::Flush ( ) [inline, virtual]

Reimplemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

Definition at line 76 of file vtkX3DExporterWriter.h.

virtual void vtkX3DExporterWriter::StartDocument ( ) [pure virtual]

Starts a document and sets all necessary informations, i.e. the header of the implemented encoding

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::EndDocument ( ) [pure virtual]

Ends a document and sets all necessary informations or necessary bytes to finish the encoding correctly

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::StartNode ( int nodeID ) [pure virtual]

Starts/ends a new X3D node specified via nodeID. The list of nodeIds can be found in vtkX3DExportWriterSymbols.h. The EndNode function closes the last open node. So there must be corresponding Start/EndNode() calls for every node

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::EndNode ( ) [pure virtual]

Starts/ends a new X3D node specified via nodeID. The list of nodeIds can be found in vtkX3DExportWriterSymbols.h. The EndNode function closes the last open node. So there must be corresponding Start/EndNode() calls for every node

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::SetField	(	int	attributeID,
		const char *	value,
		bool	mfstring = `false`
	)		`[pure virtual]`

Sets the field specified with attributeID of the active node to the given value. The type of the field is SFString and MFString virtual void SetField(int attributeID, const std::string &value) = 0;

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::SetField	(	int	attributeID,
		int
	)		`[pure virtual]`

Sets the field specified with attributeID of the active node to the given value. The type of the field is SFInt32

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::SetField	(	int	attributeID,
		float
	)		`[pure virtual]`

Sets the field specified with attributeID of the active node to the given value. The type of the field is SFFloat

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::SetField	(	int	attributeID,
		double
	)		`[pure virtual]`

Sets the field specified with attributeID of the active node to the given value. The type of the field is SFDouble

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::SetField	(	int	attributeID,
		bool
	)		`[pure virtual]`

Sets the field specified with attributeID of the active node to the given value. The type of the field is SFBool

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::SetField	(	int	attributeID,
		int	type,
		const double *	a
	)		`[pure virtual]`

Sets the field specified with attributeID of the active node to the given value. The type of the field is specified with type Supported types: SFVEC3F, SFCOLOR, SFROTATION

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::SetField	(	int	attributeID,
		int	type,
		vtkDataArray *	a
	)		`[pure virtual]`

Sets the field specified with attributeID of the active node to the given value. The type of the field is specified with type Supported types: MFVEC3F, MFVEC2F

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::SetField	(	int	attributeID,
		const double *	values,
		size_t	size
	)		`[pure virtual]`

Sets the field specified with attributeID of the active node to the given value. The type of the field is specified with type Supported types: MFCOLOR

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.

virtual void vtkX3DExporterWriter::SetField	(	int	attributeID,
		const int *	values,
		size_t	size,
		bool	image = `false`
	)		`[pure virtual]`

Sets the field specified with attributeID of the active node to the given value. The type of the field is specified with type It is possible to specify that the field is an image for optimized formating or compression Supported types: MFINT32, SFIMAGE

Implemented in vtkX3DExporterFIWriter, and vtkX3DExporterXMLWriter.
