vtkBridgePointIteratorOnCell Class Reference

Implementation of vtkGenericPointIterator. More...

#include <vtkBridgePointIteratorOnCell.h>

Inheritance diagram for vtkBridgePointIteratorOnCell:

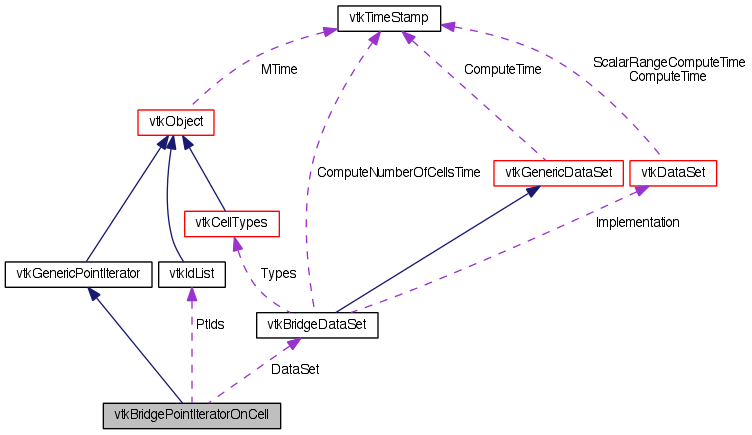

Collaboration diagram for vtkBridgePointIteratorOnCell:

List of all members.

Public Types
typedef vtkGenericPointIterator	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkBridgePointIteratorOnCell *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
void	Begin ()
int	IsAtEnd ()
void	Next ()
double *	GetPosition ()
void	GetPosition (double x[3])
vtkIdType	GetId ()
void	InitWithCell (vtkBridgeCell *cell)
Static Public Member Functions
static vtkBridgePointIteratorOnCell *	New ()
static int	IsTypeOf (const char *type)
static vtkBridgePointIteratorOnCell *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkBridgePointIteratorOnCell ()
virtual	~vtkBridgePointIteratorOnCell ()
Protected Attributes
vtkBridgeDataSet *	DataSet
vtkIdType	Cursor
vtkIdList *	PtIds

---

Detailed Description

Implementation of vtkGenericPointIterator.

It iterates over the corner points of a cell.

See also:

vtkGenericPointIterator, vtkBridgeDataSet

Tests:

vtkBridgePointIteratorOnCell (Tests)

Definition at line 36 of file vtkBridgePointIteratorOnCell.h.

---

Member Typedef Documentation

typedef vtkGenericPointIterator vtkBridgePointIteratorOnCell::Superclass

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

Definition at line 40 of file vtkBridgePointIteratorOnCell.h.

---

Constructor & Destructor Documentation

vtkBridgePointIteratorOnCell::vtkBridgePointIteratorOnCell

(

)

[protected]

Default constructor.

virtual vtkBridgePointIteratorOnCell::~vtkBridgePointIteratorOnCell

(

)

[protected, virtual]

Destructor.

---

Member Function Documentation

static vtkBridgePointIteratorOnCell* vtkBridgePointIteratorOnCell::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

static int vtkBridgePointIteratorOnCell::IsTypeOf

(

const char *

type

)

[static]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

virtual int vtkBridgePointIteratorOnCell::IsA

(

const char *

type

)

[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

static vtkBridgePointIteratorOnCell* vtkBridgePointIteratorOnCell::SafeDownCast

(

vtkObjectBase *

o

)

[static]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

virtual vtkObjectBase* vtkBridgePointIteratorOnCell::NewInstanceInternal

(

)

const [protected, virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

vtkBridgePointIteratorOnCell* vtkBridgePointIteratorOnCell::NewInstance

(

)

const

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

void vtkBridgePointIteratorOnCell::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Standard VTK construction and type macros.

Reimplemented from vtkGenericPointIterator.

void vtkBridgePointIteratorOnCell::Begin

(

)

[virtual]

Move iterator to first position if any (loop initialization).

Implements vtkGenericPointIterator.

int vtkBridgePointIteratorOnCell::IsAtEnd

(

)

[virtual]

Is there no point at iterator position? (exit condition).

Implements vtkGenericPointIterator.

void vtkBridgePointIteratorOnCell::Next

(

)

[virtual]

Move iterator to next position. (loop progression).

Precondition:

not_off: !IsAtEnd()

Implements vtkGenericPointIterator.

double* vtkBridgePointIteratorOnCell::GetPosition

(

)

[virtual]

Point at iterator position.

Precondition:

not_off: !IsAtEnd()

Postcondition:

result_exists: result!=0

Implements vtkGenericPointIterator.

void vtkBridgePointIteratorOnCell::GetPosition

(

double

x[3]

)

[virtual]

Point at iterator position.

Precondition:

not_off: !IsAtEnd()

x_exists: x!=0

Implements vtkGenericPointIterator.

vtkIdType vtkBridgePointIteratorOnCell::GetId

(

)

[virtual]

Unique identifier for the point, could be non-contiguous

Precondition:

not_off: !IsAtEnd()

Implements vtkGenericPointIterator.

void vtkBridgePointIteratorOnCell::InitWithCell

(

vtkBridgeCell *

cell

)

The iterator will iterate over the point of a cell

Precondition:

cell_exists: cell!=0

---

Member Data Documentation

vtkBridgeDataSet* vtkBridgePointIteratorOnCell::DataSet [protected]

Definition at line 76 of file vtkBridgePointIteratorOnCell.h.

vtkIdType vtkBridgePointIteratorOnCell::Cursor [protected]

Definition at line 77 of file vtkBridgePointIteratorOnCell.h.

vtkIdList* vtkBridgePointIteratorOnCell::PtIds [protected]

Definition at line 79 of file vtkBridgePointIteratorOnCell.h.

---

The documentation for this class was generated from the following file:

• dox/Testing/GenericBridge/vtkBridgePointIteratorOnCell.h
