Class for drawing an XY line plot or bag given two columns from a vtkTable. More...

#include <vtkPlotFunctionalBag.h>

Inheritance diagram for vtkPlotFunctionalBag:

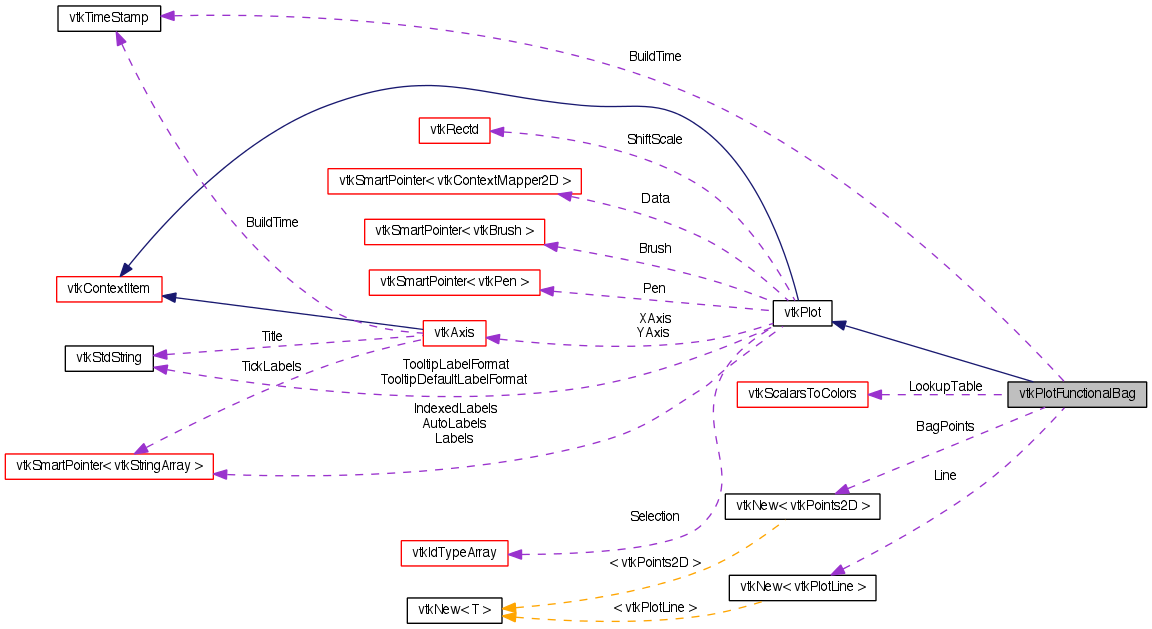

Collaboration diagram for vtkPlotFunctionalBag:

Public Types
typedef vtkPlot	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkPlotFunctionalBag *	NewInstance () const
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Update ()
virtual bool	Paint (vtkContext2D *painter)
virtual void	GetBounds (double bounds[4])
virtual void	GetUnscaledInputBounds (double bounds[4])
virtual void	CreateDefaultLookupTable ()

virtual bool	PaintLegend (vtkContext2D *painter, const vtkRectf &rect, int legendIndex)

void	SetLookupTable (vtkScalarsToColors *lut)
vtkScalarsToColors *	GetLookupTable ()

virtual vtkIdType	GetNearestPoint (const vtkVector2f &point, const vtkVector2f &tolerance, vtkVector2f *location)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkPlotFunctionalBag *	SafeDownCast (vtkObjectBase *o)
static vtkPlotFunctionalBag *	New ()
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkPlotFunctionalBag ()
	~vtkPlotFunctionalBag ()
bool	GetDataArrays (vtkTable table, vtkDataArray array[2])
bool	UpdateTableCache (vtkTable *)
Protected Attributes
vtkTimeStamp	BuildTime
vtkScalarsToColors *	LookupTable
vtkNew< vtkPlotLine >	Line
vtkNew< vtkPoints2D >	BagPoints
bool	LogX
bool	LogY

Detailed Description

Class for drawing an XY line plot or bag given two columns from a vtkTable.

Depending on the number of components, this class will draw either a line plot (for 1 component column) or, for two components columns, a filled polygonal band (the bag) going from the first to the second component on the Y-axis along the X-axis. The filter vtkExtractFunctionalBagPlot is intended to create such "bag" columns.

See also:: vtkExtractFunctionalBagPlot

Tests:: vtkPlotFunctionalBag (Tests)

Definition at line 47 of file vtkPlotFunctionalBag.h.

Member Typedef Documentation

typedef vtkPlot vtkPlotFunctionalBag::Superclass

Reimplemented from vtkPlot.

Definition at line 50 of file vtkPlotFunctionalBag.h.

Constructor & Destructor Documentation

vtkPlotFunctionalBag::vtkPlotFunctionalBag ( ) [protected]

vtkPlotFunctionalBag::~vtkPlotFunctionalBag ( ) [protected]

Member Function Documentation

static int vtkPlotFunctionalBag::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPlot.

virtual int vtkPlotFunctionalBag::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPlot.

static vtkPlotFunctionalBag* vtkPlotFunctionalBag::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkPlot.

virtual vtkObjectBase* vtkPlotFunctionalBag::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkPlot.

vtkPlotFunctionalBag* vtkPlotFunctionalBag::NewInstance ( ) const

Reimplemented from vtkPlot.

virtual void vtkPlotFunctionalBag::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPlot.

static vtkPlotFunctionalBag* vtkPlotFunctionalBag::New ( ) [static]

Creates a functional bag plot object.

Reimplemented from vtkObject.

virtual void vtkPlotFunctionalBag::Update ( ) [virtual]

Perform any updates to the item that may be necessary before rendering. The scene should take care of calling this on all items before their Paint function is invoked.

Reimplemented from vtkAbstractContextItem.

virtual bool vtkPlotFunctionalBag::Paint ( vtkContext2D * painter ) [virtual]

Paint event for the plot, called whenever the chart needs to be drawn.

Reimplemented from vtkAbstractContextItem.

virtual bool vtkPlotFunctionalBag::PaintLegend	(	vtkContext2D *	painter,
		const vtkRectf &	rect,
		int	legendIndex
	)		`[virtual]`

Paint legend event for the plot, called whenever the legend needs the plot items symbol/mark/line drawn. A rect is supplied with the lower left corner of the rect (elements 0 and 1) and with width x height (elements 2 and 3). The plot can choose how to fill the space supplied.

Reimplemented from vtkPlot.

virtual void vtkPlotFunctionalBag::GetBounds ( double bounds[4] ) [virtual]

Get the bounds for this plot as (Xmin, Xmax, Ymin, Ymax).

Reimplemented from vtkPlot.

virtual void vtkPlotFunctionalBag::GetUnscaledInputBounds ( double bounds[4] ) [virtual]

Get the non-log-scaled bounds on chart inputs for this plot as (Xmin, Xmax, Ymin, Ymax).

Reimplemented from vtkPlot.

void vtkPlotFunctionalBag::SetLookupTable ( vtkScalarsToColors * lut )

Specify a lookup table for the mapper to use.

vtkScalarsToColors* vtkPlotFunctionalBag::GetLookupTable ( )

Specify a lookup table for the mapper to use.

virtual void vtkPlotFunctionalBag::CreateDefaultLookupTable ( ) [virtual]

Create default lookup table. Generally used to create one when none is available with the scalar data.

virtual vtkIdType vtkPlotFunctionalBag::GetNearestPoint	(	const vtkVector2f &	point,
		const vtkVector2f &	tolerance,
		vtkVector2f *	location
	)		`[virtual]`

Function to query a plot for the nearest point to the specified coordinate. Returns the index of the data series with which the point is associated or -1.

Reimplemented from vtkPlot.
