| Summary | 0010052: newer freetypes render differently and breaks VTK unit tests / VTK fonts are incorrect(?) | ||||||||
| Description | If you use VTK_USE_SYSTEM_FREETYPE and your freetype is 2.3.6 or newer, some VTK unit tests will fail. See attached images. This problem exists, but is worked around, in VTK's CVS version of freetype (2.3.11 at this time). After painstaking regression through freetype CVS, the source of the problem was committed on 2008-05-18: * src/pshinter/pshalgo.c (ps_hints_apply): Reset scale values after correction for pixel boundary. Without this patch, the effect can be cumulative under certain circumstances, making glyphs taller and taller after each call. This fixes Savannah bug #19976. https://savannah.nongnu.org/bugs/?19976 [^] Werner (a freetype dev) thinks: "I suspect that the font is badly hinted; it seems to miss hints (both ghost and normal) at least for the `i'. This, in combination with a not-yet fixed problem within FreeType (which sometimes displaces horizontal strokes too much vertically) probably causes the effects you can see." We need to convert the VTK C++-ified fonts to a standard format so that Werner can debug. I have no idea how. Anyone? | ||||||||
| Tags | No tags attached. | ||||||||
| Project | |||||||||
| Type | |||||||||
| Attached Files |  multiLineText2.3.5.png [^] (15,969 bytes) 2009-12-14 15:41

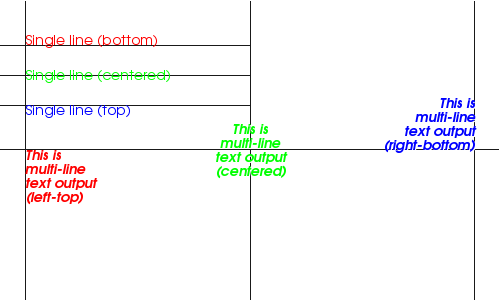

 multiLineText2.3.7.png [^] (15,150 bytes) 2009-12-14 15:42
| ||||||||
| Relationships | |||||||||||
|
|||||||||||
| Relationships |
| Notes | |
|
(0018941) Sean McBride (developer) 2009-12-17 11:01 |
from Werner: "I'm now rather convinced that there is no bug. I've attached a small PDF file which uses uagk8a.pfb as in the two multiLineText images, displaying the two letter `S' and `e'. I've also attached an image of acroread 7.0.8 (on GNU/Linux), rendering the small document so that the glyphs have approximately the same size. It looks (almost) the same as with FreeType 2.3.7 -- considering acroread as one of the reference implementations for rendering PS fonts natively, I doubt that this result can be improved. " |
|
(0037129) Kitware Robot (administrator) 2016-08-12 09:55 |
Resolving issue as `moved`. This issue tracker is no longer used. Further discussion of this issue may take place in the current VTK Issues page linked in the banner at the top of this page. |
