View Issue Details [ Jump to Notes ] [ Print ]
IDProjectCategoryView StatusDate SubmittedLast Update
0015841VTK(No Category)public2015-11-18 17:412016-08-12 09:55
ReporterFrank Conradie
Assigned ToKitware Robot
PriorityhighSeverityminorReproducibilityhave not tried
StatusclosedResolutionmoved
PlatformOSOS Version
Product Version6.2.0
Target VersionFixed in Version
Summary0015841: vtkCutter not cutting vtkPolyhedron cells correctly

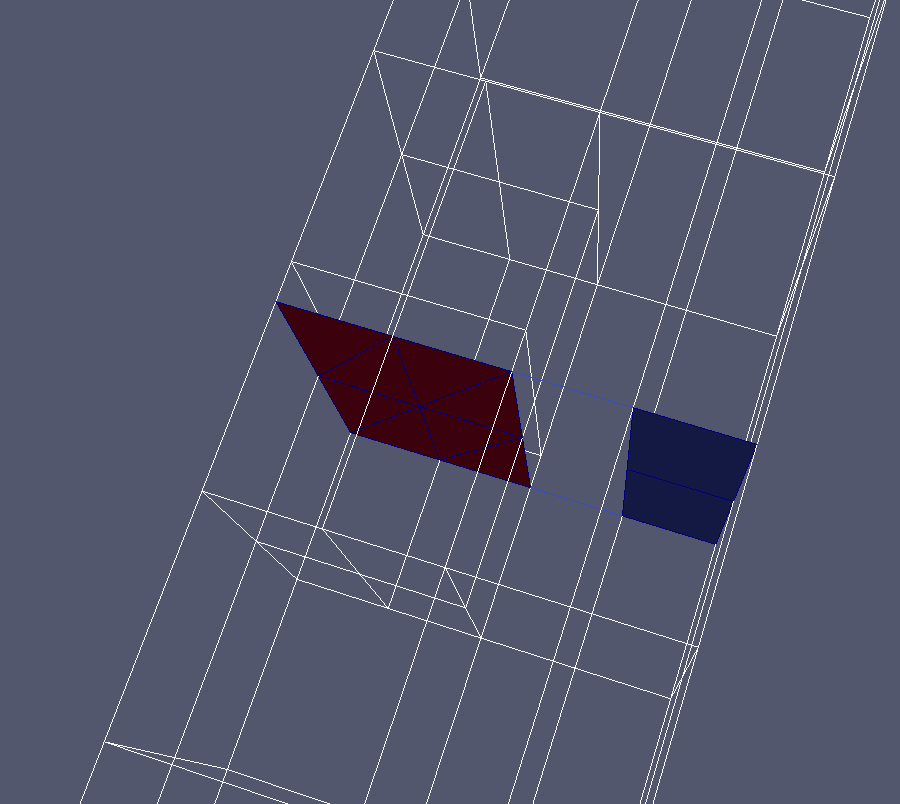

DescriptionIn unstructured grids with a mix of polyhedral and hexahedral cells, vtkCutter produces a cut with missing faces - and it seems as if these missing faces are in the polyhedral cells next to hex cells.

See attached screenshot and vtu file.
TagsNo tags attached.
ProjectTBD
Typeincorrect functionality
Attached Files? file icon mesh.vtu [^] (5,824 bytes) 2015-11-18 17:41
png file icon vtk_polyhedral_hex_cut.png [^] (27,720 bytes) 2015-11-18 17:42

 Relationships
related to 0014237closedT.J. Corona Concave polyhedron not likely to be clipped correctly.
related to 0014485closedWill Schroeder vtkCutter produces incorrect results (gaps) in output of unstructured grids containing polyhedron cells

  Notes
(0037435)
Kitware Robot (administrator)
2016-08-12 09:55

 Resolving issue as `moved`.

This issue tracker is no longer used. Further discussion of this issue may take place in the current VTK Issues page linked in the banner at the top of this page.

 Issue History
Date Modified Username Field Change
2015-11-18 17:41 Frank Conradie New Issue
2015-11-18 17:41 Frank Conradie File Added: mesh.vtu
2015-11-18 17:42 Frank Conradie File Added: vtk_polyhedral_hex_cut.png
2015-11-30 09:36 T.J. Corona Relationship added related to 0014237
2016-07-06 15:27 Cory Quammen Relationship added related to 0014485
2016-08-12 09:55 Kitware Robot Note Added: 0037435
2016-08-12 09:55 Kitware Robot Status backlog => closed
2016-08-12 09:55 Kitware Robot Resolution open => moved
2016-08-12 09:55 Kitware Robot Assigned To => Kitware Robot
