vtkArrayCalculator Class Reference

perform mathematical operations on data in field data arrays. More...

#include <vtkArrayCalculator.h>

Inheritance diagram for vtkArrayCalculator:

Inheritance graph
[legend]

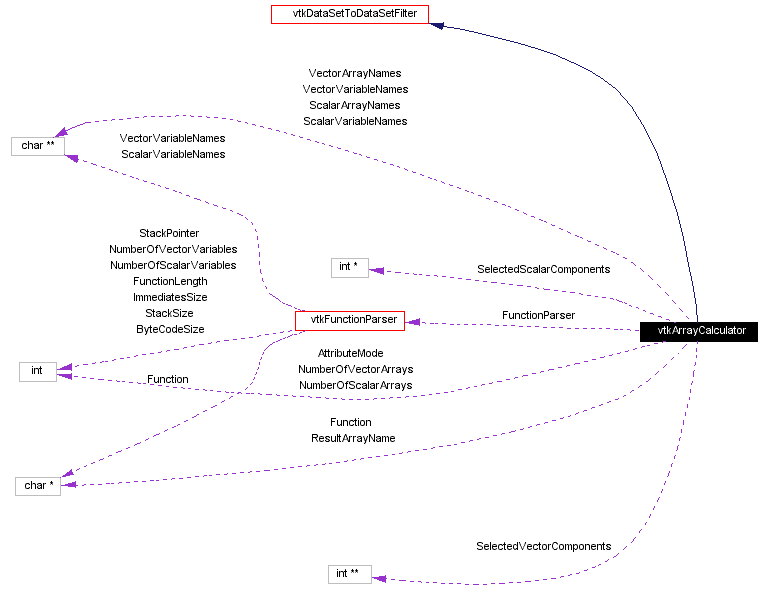

Collaboration diagram for vtkArrayCalculator:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void RemoveAllVariables ()
void SetFunction (const char *function)
virtual char * GetFunction ()
void AddScalarArrayName (const char *arrayName, int component=0)
void AddVectorArrayName (const char *arrayName, int component0=0, int component1=1, int component2=2)
void AddScalarVariable (const char *variableName, const char *arrayName, int component=0)
void AddVectorVariable (const char *variableName, const char *arrayName, int component0=0, int component1=1, int component2=2)
void SetResultArrayName (const char *name)
virtual char * GetResultArrayName ()
virtual void SetAttributeMode (int)
virtual int GetAttributeMode ()
void SetAttributeModeToDefault ()
void SetAttributeModeToUsePointData ()
void SetAttributeModeToUseCellData ()
const char * GetAttributeModeAsString ()
char ** GetScalarArrayNames ()
char * GetScalarArrayName (int i)
char ** GetVectorArrayNames ()
char * GetVectorArrayName (int i)
char ** GetScalarVariableNames ()
char * GetScalarVariableName (int i)
char ** GetVectorVariableNames ()
char * GetVectorVariableName (int i)
int * GetSelectedScalarComponents ()
int GetSelectedScalarComponent (int i)
int ** GetSelectedVectorComponents ()
int * GetSelectedVectorComponents (int i)
virtual int GetNumberOfScalarArrays ()
virtual int GetNumberOfVectorArrays ()

Static Public Methods

int IsTypeOf (const char *type)
vtkArrayCalculator * SafeDownCast (vtkObject *o)
vtkArrayCalculator * New ()

Protected Methods

 vtkArrayCalculator ()
 ~vtkArrayCalculator ()
void Execute ()

Protected Attributes

char * Function
char * ResultArrayName
char ** ScalarArrayNames
char ** VectorArrayNames
char ** ScalarVariableNames
char ** VectorVariableNames
int NumberOfScalarArrays
int NumberOfVectorArrays
int AttributeMode
int * SelectedScalarComponents
int ** SelectedVectorComponents
vtkFunctionParser * FunctionParser

Detailed Description

perform mathematical operations on data in field data arrays.

Date:
2001/11/27 19:48:36
Revision:
1.9

vtkArrayCalculator performs operations on vectors or scalars in field data arrays. It uses vtkFunctionParser to do the parsing and to evaluate the function for each entry in the input arrays. The arrays used in a given function must be all in point data or all in cell data. The resulting array will be stored as a field data array. The result array can either be stored in a new array or it can overwrite an existing array.

See also:
vtkFunctionParser
Examples:
vtkArrayCalculator (Examples)
Tests:
vtkArrayCalculator (Tests)

Definition at line 74 of file vtkArrayCalculator.h.

Constructor & Destructor Documentation

vtkArrayCalculator::vtkArrayCalculator (    )  [protected]


vtkArrayCalculator::~vtkArrayCalculator (    )  [protected]


Member Function Documentation

virtual const char* vtkArrayCalculator::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToDataSetFilter.

int vtkArrayCalculator::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkArrayCalculator::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToDataSetFilter.

vtkArrayCalculator* vtkArrayCalculator::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetToDataSetFilter.

void vtkArrayCalculator::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

vtkArrayCalculator* vtkArrayCalculator::New (    )  [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkDataSetSource.

void vtkArrayCalculator::SetFunction (  const char *    function )


Set/Get the function to be evaluated.

virtual char* vtkArrayCalculator::GetFunction (    )  [virtual]


Set/Get the function to be evaluated.

void vtkArrayCalculator::AddScalarArrayName (  const char *    arrayName,
int    component = 0
)


Add an array name to the list of arrays used in the function and specify which components of the array to use in evaluating the function. The array name must match the name in the function. Use AddScalarVariable or AddVectorVariable to use a variable name different from the array name.

void vtkArrayCalculator::AddVectorArrayName (  const char *    arrayName,
int    component0 = 0,
int    component1 = 1,
int    component2 = 2
)


Add an array name to the list of arrays used in the function and specify which components of the array to use in evaluating the function. The array name must match the name in the function. Use AddScalarVariable or AddVectorVariable to use a variable name different from the array name.

void vtkArrayCalculator::AddScalarVariable (  const char *    variableName,
const char *    arrayName,
int    component = 0
)


Add a variable name, a corresponding array name, and which components of the array to use.

void vtkArrayCalculator::AddVectorVariable (  const char *    variableName,
const char *    arrayName,
int    component0 = 0,
int    component1 = 1,
int    component2 = 2
)


Add a variable name, a corresponding array name, and which components of the array to use.

void vtkArrayCalculator::SetResultArrayName (  const char *    name )


Set the name of the array in which to store the result of evaluating this function. If this is the name of an existing array, that array will be overwritten. Otherwise a new array will be created with the specified name.

virtual char* vtkArrayCalculator::GetResultArrayName (    )  [virtual]


Set the name of the array in which to store the result of evaluating this function. If this is the name of an existing array, that array will be overwritten. Otherwise a new array will be created with the specified name.

virtual void vtkArrayCalculator::SetAttributeMode (  int    )  [virtual]


Control whether the filter operates on point data or cell data. By default (AttributeModeToDefault), the filter uses point data. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

virtual int vtkArrayCalculator::GetAttributeMode (    )  [virtual]


Control whether the filter operates on point data or cell data. By default (AttributeModeToDefault), the filter uses point data. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

void vtkArrayCalculator::SetAttributeModeToDefault (    )  [inline]


Control whether the filter operates on point data or cell data. By default (AttributeModeToDefault), the filter uses point data. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

Definition at line 126 of file vtkArrayCalculator.h.

void vtkArrayCalculator::SetAttributeModeToUsePointData (    )  [inline]


Control whether the filter operates on point data or cell data. By default (AttributeModeToDefault), the filter uses point data. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

Definition at line 128 of file vtkArrayCalculator.h.

void vtkArrayCalculator::SetAttributeModeToUseCellData (    )  [inline]


Control whether the filter operates on point data or cell data. By default (AttributeModeToDefault), the filter uses point data. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

Definition at line 130 of file vtkArrayCalculator.h.

const char* vtkArrayCalculator::GetAttributeModeAsString (    )


Control whether the filter operates on point data or cell data. By default (AttributeModeToDefault), the filter uses point data. Alternatively you can explicitly set the filter to use point data (AttributeModeToUsePointData) or cell data (AttributeModeToUseCellData).

void vtkArrayCalculator::RemoveAllVariables (    )


Remove all the variable names and their associated array names.

char** vtkArrayCalculator::GetScalarArrayNames (    )  [inline]


Methods to get information about the current variables.

Definition at line 140 of file vtkArrayCalculator.h.

char* vtkArrayCalculator::GetScalarArrayName (  int    i )


Methods to get information about the current variables.

char** vtkArrayCalculator::GetVectorArrayNames (    )  [inline]


Methods to get information about the current variables.

Definition at line 142 of file vtkArrayCalculator.h.

char* vtkArrayCalculator::GetVectorArrayName (  int    i )


Methods to get information about the current variables.

char** vtkArrayCalculator::GetScalarVariableNames (    )  [inline]


Methods to get information about the current variables.

Definition at line 144 of file vtkArrayCalculator.h.

char* vtkArrayCalculator::GetScalarVariableName (  int    i )


Methods to get information about the current variables.

char** vtkArrayCalculator::GetVectorVariableNames (    )  [inline]


Methods to get information about the current variables.

Definition at line 146 of file vtkArrayCalculator.h.

char* vtkArrayCalculator::GetVectorVariableName (  int    i )


Methods to get information about the current variables.

int* vtkArrayCalculator::GetSelectedScalarComponents (    )  [inline]


Methods to get information about the current variables.

Definition at line 148 of file vtkArrayCalculator.h.

int vtkArrayCalculator::GetSelectedScalarComponent (  int    i )


Methods to get information about the current variables.

int** vtkArrayCalculator::GetSelectedVectorComponents (    )  [inline]


Methods to get information about the current variables.

Definition at line 150 of file vtkArrayCalculator.h.

int* vtkArrayCalculator::GetSelectedVectorComponents (  int    i )


Methods to get information about the current variables.

virtual int vtkArrayCalculator::GetNumberOfScalarArrays (    )  [virtual]


Methods to get information about the current variables.

virtual int vtkArrayCalculator::GetNumberOfVectorArrays (    )  [virtual]


Methods to get information about the current variables.

void vtkArrayCalculator::Execute (    )  [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.

Member Data Documentation

char* vtkArrayCalculator::Function [protected]


Definition at line 162 of file vtkArrayCalculator.h.

char* vtkArrayCalculator::ResultArrayName [protected]


Definition at line 163 of file vtkArrayCalculator.h.

char** vtkArrayCalculator::ScalarArrayNames [protected]


Definition at line 164 of file vtkArrayCalculator.h.

char** vtkArrayCalculator::VectorArrayNames [protected]


Definition at line 165 of file vtkArrayCalculator.h.

char** vtkArrayCalculator::ScalarVariableNames [protected]


Definition at line 166 of file vtkArrayCalculator.h.

char** vtkArrayCalculator::VectorVariableNames [protected]


Definition at line 167 of file vtkArrayCalculator.h.

int vtkArrayCalculator::NumberOfScalarArrays [protected]


Definition at line 168 of file vtkArrayCalculator.h.

int vtkArrayCalculator::NumberOfVectorArrays [protected]


Definition at line 169 of file vtkArrayCalculator.h.

int vtkArrayCalculator::AttributeMode [protected]


Definition at line 170 of file vtkArrayCalculator.h.

int* vtkArrayCalculator::SelectedScalarComponents [protected]


Definition at line 171 of file vtkArrayCalculator.h.

int** vtkArrayCalculator::SelectedVectorComponents [protected]


Definition at line 172 of file vtkArrayCalculator.h.

vtkFunctionParser* vtkArrayCalculator::FunctionParser [protected]


Definition at line 173 of file vtkArrayCalculator.h.

The documentation for this class was generated from the following file:
