vtkDataSetToDataSetFilter Class Reference

abstract filter class. More...

#include <vtkDataSetToDataSetFilter.h>

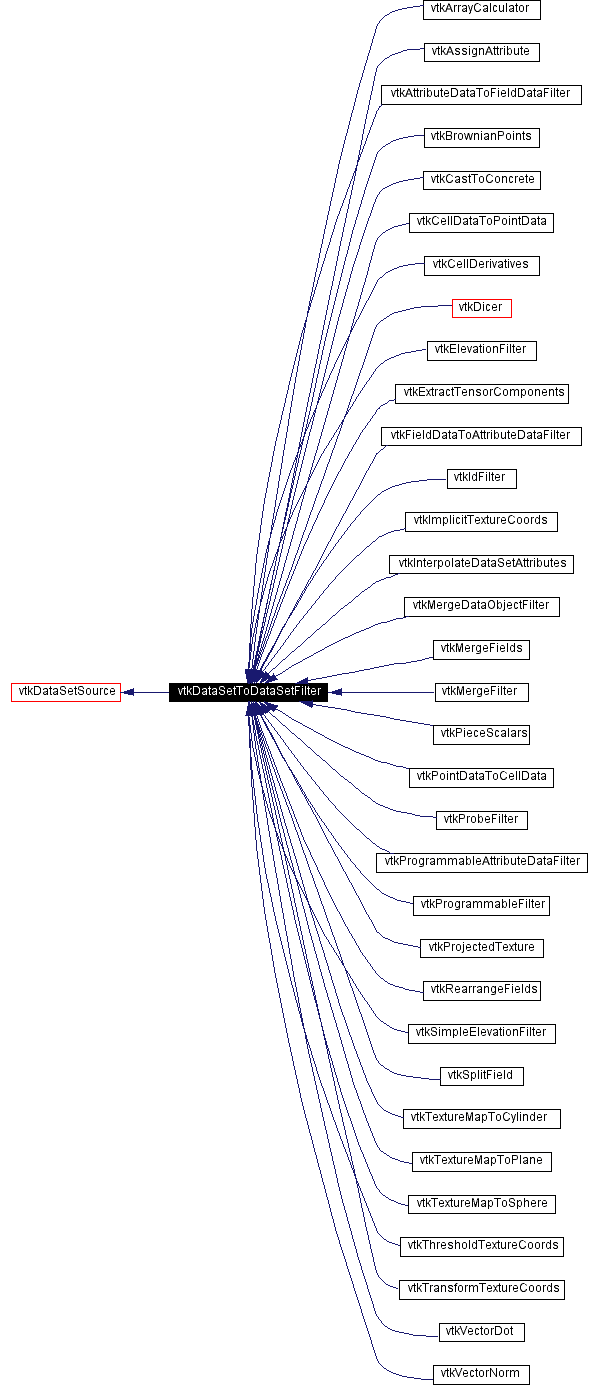

Inheritance diagram for vtkDataSetToDataSetFilter:

[legend]Collaboration diagram for vtkDataSetToDataSetFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	SetInput (vtkDataSet *input)
vtkPolyData *	GetPolyDataOutput ()
vtkStructuredPoints *	GetStructuredPointsOutput ()
vtkStructuredGrid *	GetStructuredGridOutput ()
vtkUnstructuredGrid *	GetUnstructuredGridOutput ()
vtkRectilinearGrid *	GetRectilinearGridOutput ()
vtkDataSet *	GetInput ()
virtual void	ComputeInputUpdateExtents (vtkDataObject *output)
vtkDataSet *	GetOutput ()
vtkDataSet *	GetOutput (int idx)
Static Public Methods
int	IsTypeOf (const char *type)
vtkDataSetToDataSetFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkDataSetToDataSetFilter ()
	~vtkDataSetToDataSetFilter ()
void	ExecuteInformation ()

---

Detailed Description

abstract filter class.

2/17/94 1.8

vtkDataSetToDataSetFilter is an abstract filter class. Subclasses of vtkDataSetToDataSetFilter take a dataset as input and create a dataset as output. The form of the input geometry is not changed in these filters, only the point attributes (e.g. scalars, vectors, etc.).

This is an abstract filter type. What that means is that the output of the filter is an abstract type (i.e., vtkDataSet), no matter what the input of the filter is. This can cause problems connecting together filters due to the change in dataset type. (For example, in a series of filters processing vtkPolyData, when a vtkDataSetToDataSetFilter or subclass is introduced into the pipeline, if the filter downstream of it takes vtkPolyData as input, the pipeline connection cannot be made.) To get around this problem, use one of the convenience methods to return a concrete type (e.g., vtkGetPolyDataOutput(), GetStructuredPointsOutput(), etc.).

See also:

vtkBrownianPoints vtkProbeFilter vtkThresholdTextureCoords vtkDicer vtkElevationFilter vtkImplicitTextureCoords vtkTextureMapToBox vtkTextureMapToPlane vtkVectorDot vtkVectorNorm

Definition at line 80 of file vtkDataSetToDataSetFilter.h.

---

Constructor & Destructor Documentation

vtkDataSetToDataSetFilter::vtkDataSetToDataSetFilter (    )  [protected]

vtkDataSetToDataSetFilter::~vtkDataSetToDataSetFilter (    )  [protected]

---

Member Function Documentation

virtual const char* vtkDataSetToDataSetFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSource. Reimplemented in vtkCastToConcrete, vtkArrayCalculator, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkBrownianPoints, vtkCellDataToPointData, vtkCellDerivatives, vtkDicer, vtkElevationFilter, vtkExtractTensorComponents, vtkFieldDataToAttributeDataFilter, vtkIdFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkPointDataToCellData, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableFilter, vtkProjectedTexture, vtkRearrangeFields, vtkSimpleElevationFilter, vtkSplitField, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThresholdTextureCoords, vtkTransformTextureCoords, vtkVectorDot, vtkVectorNorm, and vtkPieceScalars.

int vtkDataSetToDataSetFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSource. Reimplemented in vtkCastToConcrete, vtkArrayCalculator, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkBrownianPoints, vtkCellDataToPointData, vtkCellDerivatives, vtkDicer, vtkElevationFilter, vtkExtractTensorComponents, vtkFieldDataToAttributeDataFilter, vtkIdFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkPointDataToCellData, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableFilter, vtkProjectedTexture, vtkRearrangeFields, vtkSimpleElevationFilter, vtkSplitField, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThresholdTextureCoords, vtkTransformTextureCoords, vtkVectorDot, vtkVectorNorm, and vtkPieceScalars.

virtual int vtkDataSetToDataSetFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSource. Reimplemented in vtkCastToConcrete, vtkArrayCalculator, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkBrownianPoints, vtkCellDataToPointData, vtkCellDerivatives, vtkDicer, vtkElevationFilter, vtkExtractTensorComponents, vtkFieldDataToAttributeDataFilter, vtkIdFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkPointDataToCellData, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableFilter, vtkProjectedTexture, vtkRearrangeFields, vtkSimpleElevationFilter, vtkSplitField, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThresholdTextureCoords, vtkTransformTextureCoords, vtkVectorDot, vtkVectorNorm, and vtkPieceScalars.

vtkDataSetToDataSetFilter* vtkDataSetToDataSetFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetSource. Reimplemented in vtkCastToConcrete, vtkArrayCalculator, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkBrownianPoints, vtkCellDataToPointData, vtkCellDerivatives, vtkDicer, vtkElevationFilter, vtkExtractTensorComponents, vtkFieldDataToAttributeDataFilter, vtkIdFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkOBBDicer, vtkPointDataToCellData, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableFilter, vtkProjectedTexture, vtkRearrangeFields, vtkSimpleElevationFilter, vtkSplitField, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThresholdTextureCoords, vtkTransformTextureCoords, vtkVectorDot, vtkVectorNorm, and vtkPieceScalars.

void vtkDataSetToDataSetFilter::SetInput (  vtkDataSet *    input )

Specify the input data or filter. Referenced by vtkMergeFilter::SetGeometry().

vtkDataSet* vtkDataSetToDataSetFilter::GetOutput (    )

Get the output of this filter. If output is NULL then input hasn't been set which is necessary for abstract objects. Reimplemented from vtkDataSetSource.

vtkDataSet* vtkDataSetToDataSetFilter::GetOutput (  int    idx )  [inline]

Get the output of this filter. If output is NULL then input hasn't been set which is necessary for abstract objects. Reimplemented from vtkDataSetSource. Definition at line 93 of file vtkDataSetToDataSetFilter.h.

vtkPolyData* vtkDataSetToDataSetFilter::GetPolyDataOutput (    )

Get the output as vtkPolyData.

vtkStructuredPoints* vtkDataSetToDataSetFilter::GetStructuredPointsOutput (    )

Get the output as vtkStructuredPoints.

vtkStructuredGrid* vtkDataSetToDataSetFilter::GetStructuredGridOutput (    )

Get the output as vtkStructuredGrid.

vtkUnstructuredGrid* vtkDataSetToDataSetFilter::GetUnstructuredGridOutput (    )

Get the output as vtkUnstructuredGrid.

vtkRectilinearGrid* vtkDataSetToDataSetFilter::GetRectilinearGridOutput (    )

Get the output as vtkRectilinearGrid.

vtkDataSet* vtkDataSetToDataSetFilter::GetInput (    )

Get the input data or filter. Referenced by vtkMergeFilter::GetGeometry().

virtual void vtkDataSetToDataSetFilter::ComputeInputUpdateExtents (  vtkDataObject *    output )  [virtual]

By default copy the output update extent to the input Reimplemented from vtkSource. Reimplemented in vtkFieldDataToAttributeDataFilter, vtkMergeFilter, and vtkProbeFilter.

void vtkDataSetToDataSetFilter::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource. Reimplemented in vtkCastToConcrete, and vtkProbeFilter.

---

The documentation for this class was generated from the following file:

• Filtering/vtkDataSetToDataSetFilter.h

---
