vtkAssemblyPaths Class Reference

a list of lists of props representing an assembly hierarchy. More...

#include <vtkAssemblyPaths.h>

Inheritance diagram for vtkAssemblyPaths:

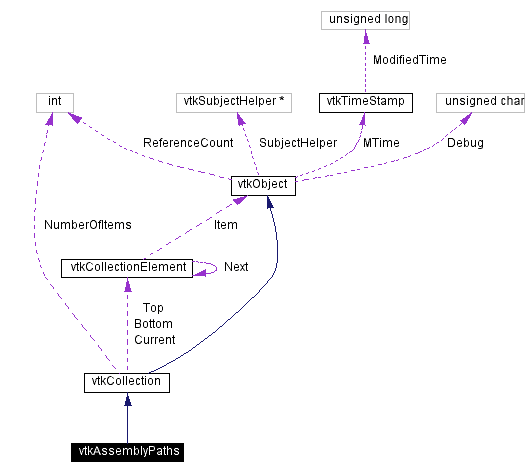

[legend]Collaboration diagram for vtkAssemblyPaths:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	AddItem (vtkAssemblyPath *p)
void	RemoveItem (vtkAssemblyPath *p)
int	IsItemPresent (vtkAssemblyPath *p)
vtkAssemblyPath *	GetNextItem ()
virtual unsigned long	GetMTime ()
Static Public Methods
vtkAssemblyPaths *	New ()
int	IsTypeOf (const char *type)
vtkAssemblyPaths *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkAssemblyPaths ()
	~vtkAssemblyPaths ()

---

Detailed Description

a list of lists of props representing an assembly hierarchy.

Date:

2001/10/11 13:36:00

Revision:

1.7

vtkAssemblyPaths represents an assembly hierarchy as a list of vtkAssemblyPath. Each path represents the complete path from the top level assembly (if any) down to the leaf prop.

See also:

vtkAssemblyPath vtkAssemblyNode vtkPicker vtkAssembly vtkProp

Definition at line 62 of file vtkAssemblyPaths.h.

---

Constructor & Destructor Documentation

vtkAssemblyPaths::vtkAssemblyPaths (    )  [inline, protected]

Definition at line 86 of file vtkAssemblyPaths.h.

vtkAssemblyPaths::~vtkAssemblyPaths (    )  [inline, protected]

Definition at line 87 of file vtkAssemblyPaths.h.

---

Member Function Documentation

vtkAssemblyPaths* vtkAssemblyPaths::New (    )  [static]

Construct with empty list. Reimplemented from vtkCollection.

virtual const char* vtkAssemblyPaths::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkCollection.

int vtkAssemblyPaths::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkCollection.

virtual int vtkAssemblyPaths::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkCollection.

vtkAssemblyPaths* vtkAssemblyPaths::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkCollection.

void vtkAssemblyPaths::AddItem (  vtkAssemblyPath *    p )  [inline]

Add a path to the list. Definition at line 101 of file vtkAssemblyPaths.h.

void vtkAssemblyPaths::RemoveItem (  vtkAssemblyPath *    p )  [inline]

Remove a path from the list. Definition at line 106 of file vtkAssemblyPaths.h.

int vtkAssemblyPaths::IsItemPresent (  vtkAssemblyPath *    p )  [inline]

Determine whether a particular path is present. Returns its position in the list. Definition at line 111 of file vtkAssemblyPaths.h.

vtkAssemblyPath * vtkAssemblyPaths::GetNextItem (    )  [inline]

Get the next path in the list. Definition at line 116 of file vtkAssemblyPaths.h.

virtual unsigned long vtkAssemblyPaths::GetMTime (    )  [virtual]

Override the standard GetMTime() to check for the modified times of the paths. Reimplemented from vtkObject.

---

The documentation for this class was generated from the following file:

• Common/vtkAssemblyPaths.h

---
