vtkCollection Class Reference

create and manipulate unsorted lists of objects. More...

#include <vtkCollection.h>

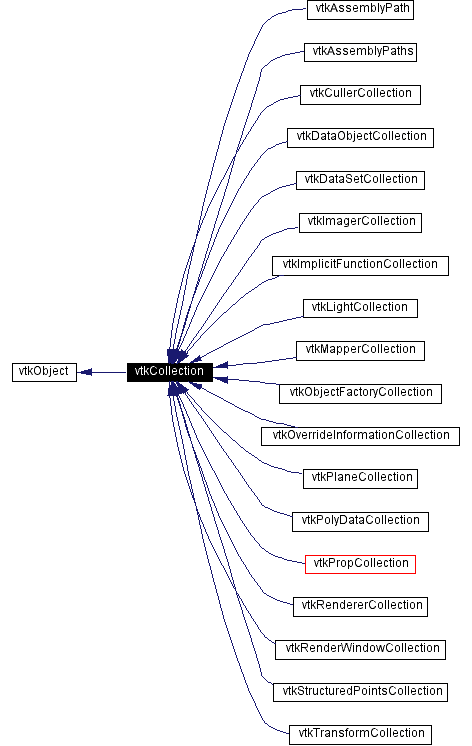

Inheritance diagram for vtkCollection:

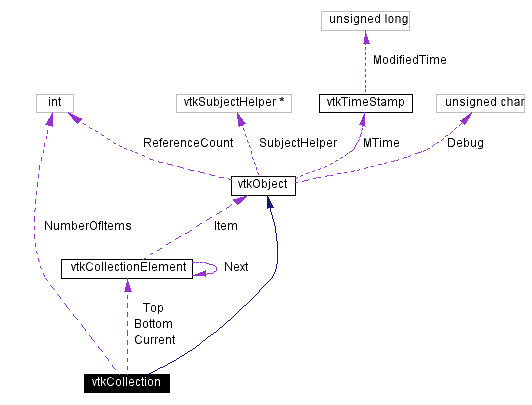

[legend]Collaboration diagram for vtkCollection:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	AddItem (vtkObject *)
void	ReplaceItem (int i, vtkObject *)
void	RemoveItem (int i)
void	RemoveItem (vtkObject *)
void	RemoveAllItems ()
int	IsItemPresent (vtkObject *)
int	GetNumberOfItems ()
void	InitTraversal ()
vtkObject *	GetNextItemAsObject ()
vtkObject *	GetItemAsObject (int i)
Static Public Methods
int	IsTypeOf (const char *type)
vtkCollection *	SafeDownCast (vtkObject *o)
vtkCollection *	New ()
Protected Methods
	vtkCollection ()
	~vtkCollection ()
virtual void	DeleteElement (vtkCollectionElement *)
Protected Attributes
int	NumberOfItems
vtkCollectionElement *	Top
vtkCollectionElement *	Bottom
vtkCollectionElement *	Current

---

Detailed Description

create and manipulate unsorted lists of objects.

Date:

2001/10/11 13:36:05

Revision:

1.42

vtkCollection is a general object for creating and manipulating lists of objects. The lists are unsorted and allow duplicate entries. vtkCollection also serves as a base class for lists of specific types of objects.

See also:

vtkActorCollection vtkAssemblyPaths vtkDataSetCollection vtkImplicitFunctionCollection vtkLightCollection vtkPolyDataCollection vtkRenderWindowCollection vtkRendererCollection vtkStructuredPointsCollection vtkTransformCollection vtkVolumeCollection

Definition at line 73 of file vtkCollection.h.

---

Constructor & Destructor Documentation

vtkCollection::vtkCollection (    )  [protected]

vtkCollection::~vtkCollection (    )  [protected]

---

Member Function Documentation

virtual const char* vtkCollection::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkActor2DCollection, vtkAssemblyPath, vtkAssemblyPaths, vtkDataObjectCollection, vtkDataSetCollection, vtkImplicitFunctionCollection, vtkObjectFactoryCollection, vtkOverrideInformationCollection, vtkPlaneCollection, vtkPropCollection, vtkTransformCollection, vtkPolyDataCollection, vtkStructuredPointsCollection, vtkActorCollection, vtkCullerCollection, vtkImagerCollection, vtkLightCollection, vtkMapperCollection, vtkProp3DCollection, vtkRendererCollection, vtkRenderWindowCollection, and vtkVolumeCollection.

int vtkCollection::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkActor2DCollection, vtkAssemblyPath, vtkAssemblyPaths, vtkDataObjectCollection, vtkDataSetCollection, vtkImplicitFunctionCollection, vtkObjectFactoryCollection, vtkOverrideInformationCollection, vtkPlaneCollection, vtkPropCollection, vtkTransformCollection, vtkPolyDataCollection, vtkStructuredPointsCollection, vtkActorCollection, vtkCullerCollection, vtkImagerCollection, vtkLightCollection, vtkMapperCollection, vtkProp3DCollection, vtkRendererCollection, vtkRenderWindowCollection, and vtkVolumeCollection.

virtual int vtkCollection::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkActor2DCollection, vtkAssemblyPath, vtkAssemblyPaths, vtkDataObjectCollection, vtkDataSetCollection, vtkImplicitFunctionCollection, vtkObjectFactoryCollection, vtkOverrideInformationCollection, vtkPlaneCollection, vtkPropCollection, vtkTransformCollection, vtkPolyDataCollection, vtkStructuredPointsCollection, vtkActorCollection, vtkCullerCollection, vtkImagerCollection, vtkLightCollection, vtkMapperCollection, vtkProp3DCollection, vtkRendererCollection, vtkRenderWindowCollection, and vtkVolumeCollection.

vtkCollection* vtkCollection::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkActor2DCollection, vtkAssemblyPath, vtkAssemblyPaths, vtkDataObjectCollection, vtkDataSetCollection, vtkImplicitFunctionCollection, vtkObjectFactoryCollection, vtkOverrideInformationCollection, vtkPlaneCollection, vtkPropCollection, vtkTransformCollection, vtkPolyDataCollection, vtkStructuredPointsCollection, vtkActorCollection, vtkCullerCollection, vtkImagerCollection, vtkLightCollection, vtkMapperCollection, vtkProp3DCollection, vtkRendererCollection, vtkRenderWindowCollection, and vtkVolumeCollection.

void vtkCollection::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkObject. Reimplemented in vtkAssemblyPath.

vtkCollection* vtkCollection::New (    )  [static]

Construct with empty list. Reimplemented from vtkObject. Reimplemented in vtkActor2DCollection, vtkAssemblyPath, vtkAssemblyPaths, vtkDataObjectCollection, vtkDataSetCollection, vtkImplicitFunctionCollection, vtkObjectFactoryCollection, vtkOverrideInformationCollection, vtkPlaneCollection, vtkPropCollection, vtkTransformCollection, vtkPolyDataCollection, vtkStructuredPointsCollection, vtkActorCollection, vtkCullerCollection, vtkImagerCollection, vtkLightCollection, vtkMapperCollection, vtkProp3DCollection, vtkRendererCollection, vtkRenderWindowCollection, and vtkVolumeCollection.

void vtkCollection::AddItem (  vtkObject *    o )

Add an object to the list. Does not prevent duplicate entries. Referenced by vtkVolumeCollection::AddItem(), vtkRenderWindowCollection::AddItem(), vtkRendererCollection::AddItem(), vtkProp3DCollection::AddItem(), vtkMapperCollection::AddItem(), vtkImagerCollection::AddItem(), vtkCullerCollection::AddItem(), vtkActorCollection::AddItem(), vtkStructuredPointsCollection::AddItem(), vtkPolyDataCollection::AddItem(), vtkTransformCollection::AddItem(), vtkPropCollection::AddItem(), vtkPlaneCollection::AddItem(), vtkOverrideInformationCollection::AddItem(), vtkObjectFactoryCollection::AddItem(), vtkImplicitFunctionCollection::AddItem(), vtkDataSetCollection::AddItem(), vtkDataObjectCollection::AddItem(), vtkAssemblyPaths::AddItem(), and vtkAssemblyPath::TransformedProp().

void vtkCollection::ReplaceItem (  int    i, vtkObject *    )

Replace the i'th item in the collection with a

void vtkCollection::RemoveItem (  int    i )

Remove the i'th item in the list. Be careful if using this function during traversal of the list using GetNextItemAsObject (or GetNextItem in derived class). The list WILL be shortened if a valid index is given! If this->Current is equal to the element being removed, have it point to then next element in the list. Referenced by vtkAssemblyPaths::RemoveItem().

void vtkCollection::RemoveItem (  vtkObject *    o )

Remove an object from the list. Removes the first object found, not all occurrences. If no object found, list is unaffected. See warning in description of RemoveItem(int).

void vtkCollection::RemoveAllItems (    )

Remove all objects from the list.

int vtkCollection::IsItemPresent (  vtkObject *    o )

Search for an object and return location in list. If location == 0, object was not found. Referenced by vtkAssemblyPaths::IsItemPresent(), and vtkActor2DCollection::IsItemPresent().

int vtkCollection::GetNumberOfItems (    )

Return the number of objects in the list.

void vtkCollection::InitTraversal (    )  [inline]

Initialize the traversal of the collection. This means the data pointer is set at the beginning of the list. Definition at line 112 of file vtkCollection.h.

vtkObject * vtkCollection::GetNextItemAsObject (    )  [inline]

Get the next item in the collection. NULL is returned if the collection is exhausted. Definition at line 138 of file vtkCollection.h. Referenced by vtkActorCollection::GetNextActor(), vtkActor2DCollection::GetNextActor2D(), vtkRenderWindowCollection::GetNextItem(), vtkRendererCollection::GetNextItem(), vtkMapperCollection::GetNextItem(), vtkImagerCollection::GetNextItem(), vtkCullerCollection::GetNextItem(), vtkStructuredPointsCollection::GetNextItem(), vtkPolyDataCollection::GetNextItem(), vtkTransformCollection::GetNextItem(), vtkPlaneCollection::GetNextItem(), vtkOverrideInformationCollection::GetNextItem(), vtkObjectFactoryCollection::GetNextItem(), vtkImplicitFunctionCollection::GetNextItem(), vtkDataSetCollection::GetNextItem(), vtkDataObjectCollection::GetNextItem(), vtkAssemblyPaths::GetNextItem(), vtkPropCollection::GetNextProp(), vtkProp3DCollection::GetNextProp3D(), and vtkVolumeCollection::GetNextVolume().

vtkObject* vtkCollection::GetItemAsObject (  int    i )

Get the i'th item in the collection. NULL is returned if i is out of range Referenced by vtkDataSetCollection::GetItem(), and vtkDataObjectCollection::GetItem().

virtual void vtkCollection::DeleteElement (  vtkCollectionElement *    )  [protected, virtual]

Reimplemented in vtkActor2DCollection.

---

Member Data Documentation

int vtkCollection::NumberOfItems [protected]

Definition at line 127 of file vtkCollection.h.

vtkCollectionElement* vtkCollection::Top [protected]

Definition at line 128 of file vtkCollection.h.

vtkCollectionElement* vtkCollection::Bottom [protected]

Definition at line 129 of file vtkCollection.h.

vtkCollectionElement* vtkCollection::Current [protected]

Definition at line 130 of file vtkCollection.h.

---

The documentation for this class was generated from the following file:

• Common/vtkCollection.h

---
