vtkCGMWriter Class Reference
write polygonal data as a CGM file.
More...
#include <vtkCGMWriter.h>
Inheritance diagram for vtkCGMWriter:
[legend]Collaboration diagram for vtkCGMWriter:

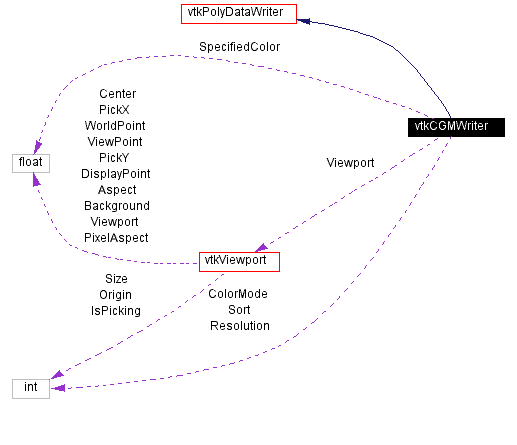

[legend]List of all members.
Detailed Description
write polygonal data as a CGM file.
-
Date:
-
2001/10/11 13:37:28
-
Revision:
-
1.7
vtkCGMWriter writes CGM (Computer Graphics Metafile) output. CGM is a 2D graphics vector format typically used by large plotters. This writer can handle vertices, lines, polygons, and triangle strips in any combination. Colors are specified either 1) from cell scalars (assumed to be RGB or RGBA color specification), 2) from a specified color; or 3) randomly assigned colors.
Note: During output of the polygonal data, stringle strips are converted to triangles, and polylines to lines. Also, due to limitations in the CGM color model, only 256 colors are available to the color palette.
-
Warning:
-
The class vtkImageToPolyDataFilter is convenient for converting a raster image into polygons (and color map) suitable for plotting with CGM.
-
See also:
-
vtkPolyDataWriter vtkPointDataToCellData
Definition at line 78 of file vtkCGMWriter.h.
Constructor & Destructor Documentation
| vtkCGMWriter::vtkCGMWriter |
( |
|
) |
[protected] |
|
| vtkCGMWriter::~vtkCGMWriter |
( |
|
) |
[protected] |
|
Member Function Documentation
| vtkCGMWriter* vtkCGMWriter::New |
( |
|
) |
[inline, static] |
|
|
|
Instantiate with no viewport defined and sorting on. The default resolution is 10,000, and the color mode is set to default.
Reimplemented from vtkPolyDataWriter.
Definition at line 83 of file vtkCGMWriter.h. |
| virtual const char* vtkCGMWriter::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkCGMWriter::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataWriter. |
| virtual int vtkCGMWriter::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataWriter. |
| vtkCGMWriter* vtkCGMWriter::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
|
|
Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataWriter. |
| void vtkCGMWriter::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkPolyDataWriter. |
| virtual void vtkCGMWriter::SetViewport |
( |
vtkViewport * |
|
) |
[virtual] |
|
|
|
Specify a vtkViewport object to be used to transform the vtkPolyData points into 2D coordinates. By default (no vtkViewport specified), the point coordinates are generated by ignoring the z values. If a viewport is defined, then the points are transformed into viewport coordinates. |
| virtual vtkViewport* vtkCGMWriter::GetViewport |
( |
|
) |
[virtual] |
|
|
|
Specify a vtkViewport object to be used to transform the vtkPolyData points into 2D coordinates. By default (no vtkViewport specified), the point coordinates are generated by ignoring the z values. If a viewport is defined, then the points are transformed into viewport coordinates. |
| virtual void vtkCGMWriter::SetSort |
( |
int |
|
) |
[virtual] |
|
|
|
Turn on/off the sorting of the cells via depth. If enabled, polygonal cells will be sorted from back to front, i.e., a Painter's algorithm sort. |
| virtual int vtkCGMWriter::GetSort |
( |
|
) |
[virtual] |
|
|
|
Turn on/off the sorting of the cells via depth. If enabled, polygonal cells will be sorted from back to front, i.e., a Painter's algorithm sort. |
| virtual void vtkCGMWriter::SetResolution |
( |
int |
|
) |
[virtual] |
|
|
|
Specify the resolution of the CGM file. This number is used to integerize the maximum coordinate range of the plot file. |
| virtual int vtkCGMWriter::GetResolution |
( |
|
) |
[virtual] |
|
|
|
Specify the resolution of the CGM file. This number is used to integerize the maximum coordinate range of the plot file. |
| virtual void vtkCGMWriter::SetColorMode |
( |
int |
|
) |
[virtual] |
|
|
|
Control how output polydata is colored. By default (ColorModeToDefault), if per cell colors are defined (unsigned chars of 1-4 components), then the cells are colored with these values. (If point colors are defined and cell colors are not, you can use vtkPointDataToCellData to convert the point colors to cell colors.) Otherwise, by default, the cells are set to the specified color. If ColorModeToSpecifiedColor is set, then the primitives will all be set to this color. If ColorModeToRandomColors is set, each cell will be randomly assigned a color. |
| virtual int vtkCGMWriter::GetColorMode |
( |
|
) |
[virtual] |
|
|
|
Control how output polydata is colored. By default (ColorModeToDefault), if per cell colors are defined (unsigned chars of 1-4 components), then the cells are colored with these values. (If point colors are defined and cell colors are not, you can use vtkPointDataToCellData to convert the point colors to cell colors.) Otherwise, by default, the cells are set to the specified color. If ColorModeToSpecifiedColor is set, then the primitives will all be set to this color. If ColorModeToRandomColors is set, each cell will be randomly assigned a color. |
| void vtkCGMWriter::SetColorModeToDefault |
( |
|
) |
[inline] |
|
|
|
Control how output polydata is colored. By default (ColorModeToDefault), if per cell colors are defined (unsigned chars of 1-4 components), then the cells are colored with these values. (If point colors are defined and cell colors are not, you can use vtkPointDataToCellData to convert the point colors to cell colors.) Otherwise, by default, the cells are set to the specified color. If ColorModeToSpecifiedColor is set, then the primitives will all be set to this color. If ColorModeToRandomColors is set, each cell will be randomly assigned a color.
Definition at line 125 of file vtkCGMWriter.h. |
| void vtkCGMWriter::SetColorModeToSpecifiedColor |
( |
|
) |
[inline] |
|
|
|
Control how output polydata is colored. By default (ColorModeToDefault), if per cell colors are defined (unsigned chars of 1-4 components), then the cells are colored with these values. (If point colors are defined and cell colors are not, you can use vtkPointDataToCellData to convert the point colors to cell colors.) Otherwise, by default, the cells are set to the specified color. If ColorModeToSpecifiedColor is set, then the primitives will all be set to this color. If ColorModeToRandomColors is set, each cell will be randomly assigned a color.
Definition at line 127 of file vtkCGMWriter.h. |
| void vtkCGMWriter::SetColorModeToRandomColors |
( |
|
) |
[inline] |
|
|
|
Control how output polydata is colored. By default (ColorModeToDefault), if per cell colors are defined (unsigned chars of 1-4 components), then the cells are colored with these values. (If point colors are defined and cell colors are not, you can use vtkPointDataToCellData to convert the point colors to cell colors.) Otherwise, by default, the cells are set to the specified color. If ColorModeToSpecifiedColor is set, then the primitives will all be set to this color. If ColorModeToRandomColors is set, each cell will be randomly assigned a color.
Definition at line 129 of file vtkCGMWriter.h. |
| virtual void vtkCGMWriter::SetSpecifiedColor |
( |
float |
, |
|
|
float |
, |
|
|
float |
|
|
) |
[virtual] |
|
|
|
Set/Get the specified color to color the polydata cells. This color is only used when the color mode is set to ColorModeToSpecifiedColor, or ColorModeToDefault is set and no cell colors are specified. The specified color is specified as RGB values ranging from (0,1). (Note: CGM will map this color to the closest color it supports.) |
| virtual void vtkCGMWriter::SetSpecifiedColor |
( |
float |
[3] |
) |
[virtual] |
|
|
|
Set/Get the specified color to color the polydata cells. This color is only used when the color mode is set to ColorModeToSpecifiedColor, or ColorModeToDefault is set and no cell colors are specified. The specified color is specified as RGB values ranging from (0,1). (Note: CGM will map this color to the closest color it supports.) |
| virtual float* vtkCGMWriter::GetSpecifiedColor |
( |
|
) |
[virtual] |
|
|
|
Set/Get the specified color to color the polydata cells. This color is only used when the color mode is set to ColorModeToSpecifiedColor, or ColorModeToDefault is set and no cell colors are specified. The specified color is specified as RGB values ranging from (0,1). (Note: CGM will map this color to the closest color it supports.) |
| virtual void vtkCGMWriter::GetSpecifiedColor |
( |
float |
data[3] |
) |
[virtual] |
|
|
|
Set/Get the specified color to color the polydata cells. This color is only used when the color mode is set to ColorModeToSpecifiedColor, or ColorModeToDefault is set and no cell colors are specified. The specified color is specified as RGB values ranging from (0,1). (Note: CGM will map this color to the closest color it supports.) |
| void vtkCGMWriter::WriteData |
( |
|
) |
[protected, virtual] |
|
Member Data Documentation
int vtkCGMWriter::ColorMode [protected]
|
|
float vtkCGMWriter::SpecifiedColor[3] [protected]
|
|
int vtkCGMWriter::Resolution [protected]
|
|
int vtkCGMWriter::Sort [protected]
|
|
