vtkPolyDataWriter Class Reference

write vtk polygonal data. More...

#include <vtkPolyDataWriter.h>

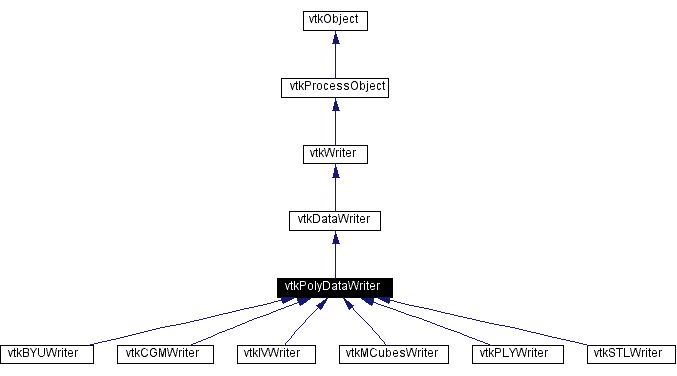

Inheritance diagram for vtkPolyDataWriter:

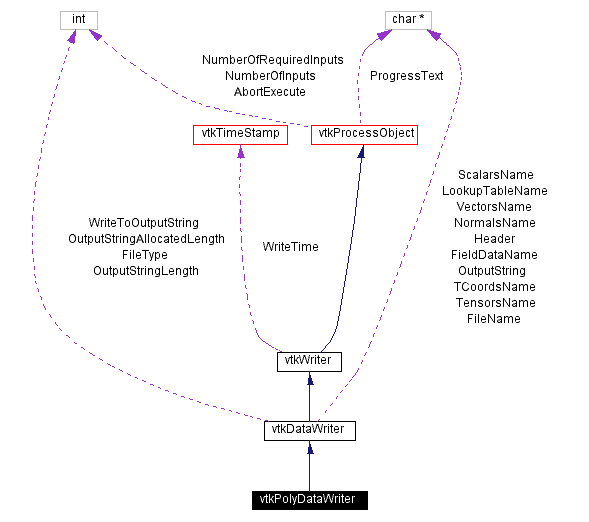

[legend]Collaboration diagram for vtkPolyDataWriter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetInput (vtkPolyData *input)
vtkPolyData *	GetInput ()
Static Public Methods
vtkPolyDataWriter *	New ()
int	IsTypeOf (const char *type)
vtkPolyDataWriter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkPolyDataWriter ()
	~vtkPolyDataWriter ()
void	WriteData ()

---

Detailed Description

write vtk polygonal data.

Date:

2001/10/11 13:37:33

Revision:

1.20

vtkPolyDataWriter is a source object that writes ASCII or binary polygonal data files in vtk format. See text for format details.

Warning:

Binary files written on one system may not be readable on other systems.

Tests:

vtkPolyDataWriter (Tests)

Definition at line 61 of file vtkPolyDataWriter.h.

---

Constructor & Destructor Documentation

vtkPolyDataWriter::vtkPolyDataWriter (    )  [inline, protected]

Definition at line 75 of file vtkPolyDataWriter.h.

vtkPolyDataWriter::~vtkPolyDataWriter (    )  [inline, protected]

Definition at line 76 of file vtkPolyDataWriter.h.

---

Member Function Documentation

vtkPolyDataWriter* vtkPolyDataWriter::New (    )  [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates. Reimplemented from vtkDataWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, and vtkSTLWriter.

virtual const char* vtkPolyDataWriter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, and vtkSTLWriter.

int vtkPolyDataWriter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, and vtkSTLWriter.

virtual int vtkPolyDataWriter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, and vtkSTLWriter.

vtkPolyDataWriter* vtkPolyDataWriter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, and vtkSTLWriter.

void vtkPolyDataWriter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkDataWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkMCubesWriter, and vtkPLYWriter.

void vtkPolyDataWriter::SetInput (  vtkPolyData *    input )

Set / get the input data or filter.

vtkPolyData* vtkPolyDataWriter::GetInput (    )

Set / get the input data or filter. Reimplemented from vtkWriter.

void vtkPolyDataWriter::WriteData (    )  [protected, virtual]

Reimplemented from vtkDataWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, and vtkSTLWriter.

---

The documentation for this class was generated from the following file:

• IO/vtkPolyDataWriter.h

---
