vtkCellData Class Reference

represent and manipulate cell attribute data. More...

#include <vtkCellData.h>

Inheritance diagram for vtkCellData:

Inheritance graph
[legend]

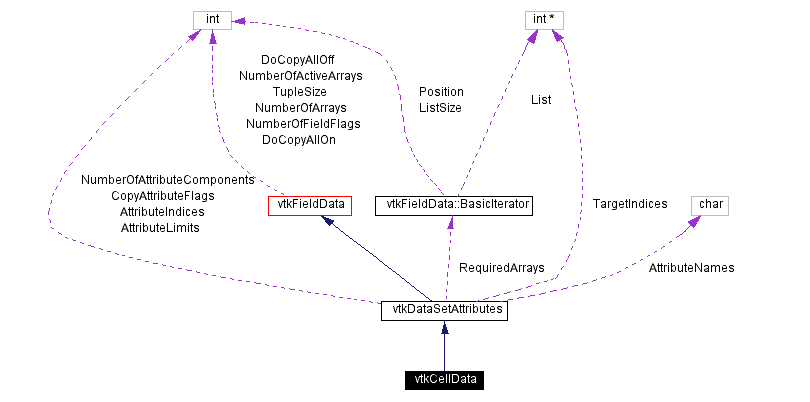

Collaboration diagram for vtkCellData:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)

Static Public Methods

vtkCellData * New ()
int IsTypeOf (const char *type)
vtkCellData * SafeDownCast (vtkObject *o)

Protected Methods

 vtkCellData ()
 ~vtkCellData ()

Detailed Description

represent and manipulate cell attribute data.

Date:
2001/10/11 13:36:03
Revision:
1.16

vtkCellData is a class that is used to represent and manipulate cell attribute data (e.g., scalars, vectors, normals, texture coordinates, etc.) Special methods are provided to work with filter objects, such as passing data through filter, copying data from one cell to another, and interpolating data given cell interpolation weights.

Tests:
vtkCellData (Tests)

Definition at line 61 of file vtkCellData.h.


Constructor & Destructor Documentation

vtkCellData::vtkCellData   [inline, protected]


Definition at line 70 of file vtkCellData.h.

vtkCellData::~vtkCellData   [inline, protected]


Definition at line 71 of file vtkCellData.h.


Member Function Documentation

vtkCellData* vtkCellData::New   [static]


Construct object with copying turned on for all data.

Reimplemented from vtkDataSetAttributes.

virtual const char* vtkCellData::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAttributes.

int vtkCellData::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAttributes.

virtual int vtkCellData::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAttributes.

vtkCellData* vtkCellData::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetAttributes.

void vtkCellData::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetAttributes.


The documentation for this class was generated from the following file:
