vtkCubeAxesActor2D Class Reference

create a 2D plot of a bounding box edges - used for navigation. More...

#include <vtkCubeAxesActor2D.h>

Inheritance diagram for vtkCubeAxesActor2D:

Inheritance graph
[legend]

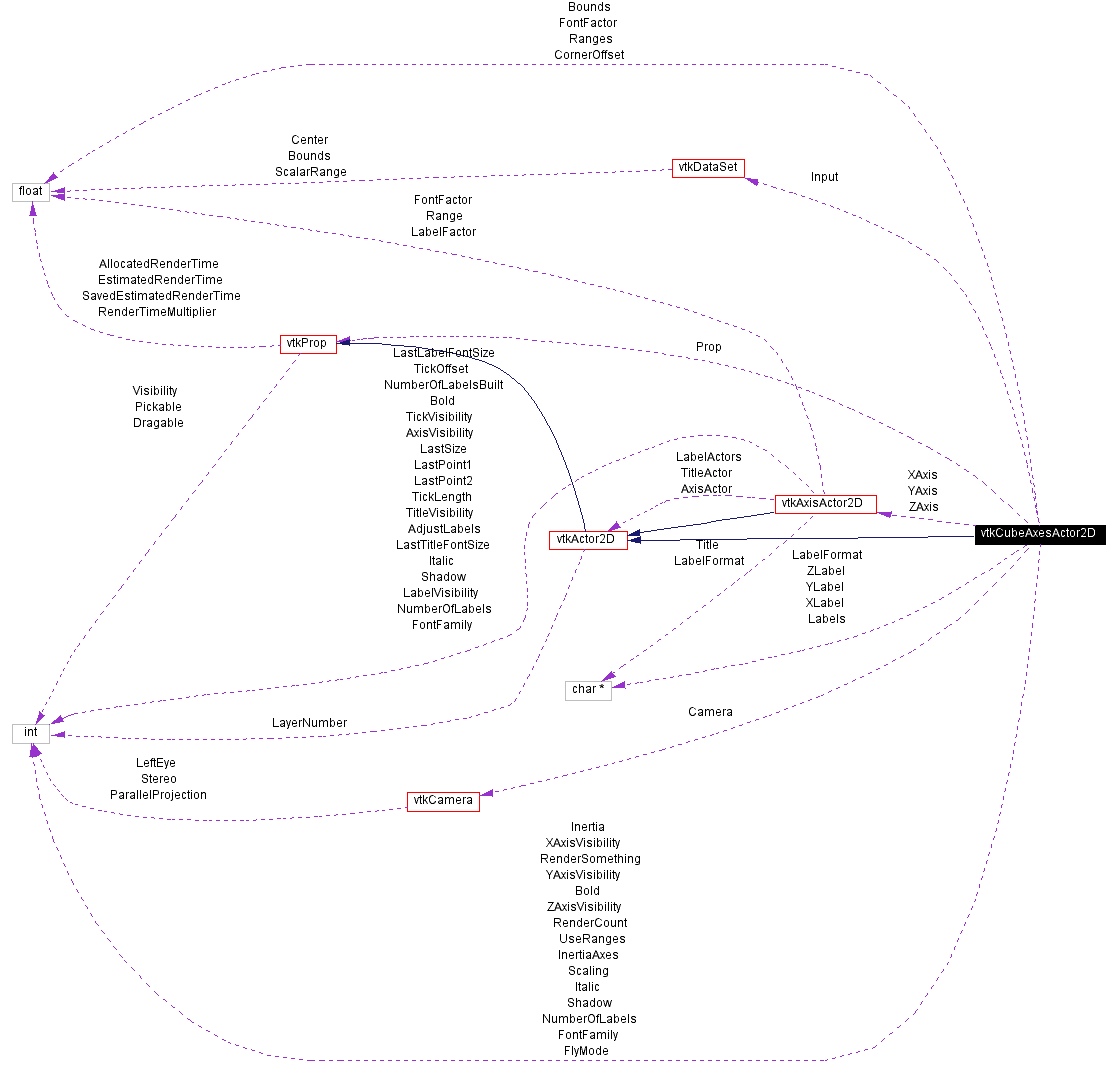

Collaboration diagram for vtkCubeAxesActor2D:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void ReleaseGraphicsResources (vtkWindow *)
void ShallowCopy (vtkCubeAxesActor2D *actor)
int RenderOverlay (vtkViewport *)
int RenderOpaqueGeometry (vtkViewport *)
int RenderTranslucentGeometry (vtkViewport *)
virtual void SetInput (vtkDataSet *)
virtual vtkDataSet * GetInput ()
virtual void SetProp (vtkProp *)
virtual vtkProp * GetProp ()
virtual void SetBounds (float, float, float, float, float, float)
virtual void SetBounds (float[6])
float * GetBounds ()
void GetBounds (float &xmin, float &xmax, float &ymin, float &ymax, float &zmin, float &zmax)
void GetBounds (float bounds[6])
virtual void SetRanges (float, float, float, float, float, float)
virtual void SetRanges (float[6])
float * GetRanges ()
void GetRanges (float &xmin, float &xmax, float &ymin, float &ymax, float &zmin, float &zmax)
void GetRanges (float ranges[6])
virtual void SetUseRanges (int)
virtual int GetUseRanges ()
virtual void UseRangesOn ()
virtual void UseRangesOff ()
virtual void SetCamera (vtkCamera *)
virtual vtkCamera * GetCamera ()
virtual void SetFlyMode (int)
virtual int GetFlyMode ()
void SetFlyModeToOuterEdges ()
void SetFlyModeToClosestTriad ()
virtual void SetScaling (int)
virtual int GetScaling ()
virtual void ScalingOn ()
virtual void ScalingOff ()
virtual void SetNumberOfLabels (int)
virtual int GetNumberOfLabels ()
virtual void SetXLabel (const char *)
virtual char * GetXLabel ()
virtual void SetYLabel (const char *)
virtual char * GetYLabel ()
virtual void SetZLabel (const char *)
virtual char * GetZLabel ()
virtual void SetBold (int)
virtual int GetBold ()
virtual void BoldOn ()
virtual void BoldOff ()
virtual void SetItalic (int)
virtual int GetItalic ()
virtual void ItalicOn ()
virtual void ItalicOff ()
virtual void SetShadow (int)
virtual int GetShadow ()
virtual void ShadowOn ()
virtual void ShadowOff ()
virtual void SetFontFamily (int)
virtual int GetFontFamily ()
void SetFontFamilyToArial ()
void SetFontFamilyToCourier ()
void SetFontFamilyToTimes ()
virtual void SetLabelFormat (const char *)
virtual char * GetLabelFormat ()
virtual void SetFontFactor (float)
virtual float GetFontFactor ()
virtual void SetInertia (int)
virtual float GetInertia ()
virtual void SetCornerOffset (float)
virtual float GetCornerOffset ()
virtual void SetXAxisVisibility (int)
virtual int GetXAxisVisibility ()
virtual void XAxisVisibilityOn ()
virtual void XAxisVisibilityOff ()
virtual void SetYAxisVisibility (int)
virtual int GetYAxisVisibility ()
virtual void YAxisVisibilityOn ()
virtual void YAxisVisibilityOff ()
virtual void SetZAxisVisibility (int)
virtual int GetZAxisVisibility ()
virtual void ZAxisVisibilityOn ()
virtual void ZAxisVisibilityOff ()

Static Public Methods

int IsTypeOf (const char *type)
vtkCubeAxesActor2D * SafeDownCast (vtkObject *o)
vtkCubeAxesActor2D * New ()

Protected Methods

 vtkCubeAxesActor2D ()
 ~vtkCubeAxesActor2D ()
void TransformBounds (vtkViewport *viewport, float bounds[6], float pts[8][3])
int ClipBounds (vtkViewport *viewport, float pts[8][3], float bounds[6])
float EvaluatePoint (float planes[24], float x[3])
float EvaluateBounds (float planes[24], float bounds[6])
void AdjustAxes (float pts[8][3], float bounds[6], int idx, int xIdx, int yIdx, int zIdx, int zIdx2, int xAxes, int yAxes, int zAxes, float xCoords[4], float yCoords[4], float zCoords[4], float xRange[2], float yRange[2], float zRange[2])

Protected Attributes

vtkDataSet * Input
vtkProp * Prop
float Bounds [6]
float Ranges [6]
int UseRanges
vtkCamera * Camera
int FlyMode
int Scaling
vtkAxisActor2D * XAxis
vtkAxisActor2D * YAxis
vtkAxisActor2D * ZAxis
int NumberOfLabels
char * XLabel
char * YLabel
char * ZLabel
char * Labels [3]
int XAxisVisibility
int YAxisVisibility
int ZAxisVisibility
int Bold
int Italic
int Shadow
int FontFamily
char * LabelFormat
float FontFactor
float CornerOffset
int Inertia
int RenderCount
int InertiaAxes [8]
int RenderSomething

Detailed Description

create a 2D plot of a bounding box edges - used for navigation.

Date:
2001/11/05 21:13:26
Revision:
1.26
Thanks:
Thorsten Dowe who modified and improved this class.
vtkCubeAxesActor2D is a composite actor that draws three axes of the bounding box of an input dataset. The axes include labels and titles for the x-y-z axes. The algorithm selects the axes that are on the "exterior" of the bounding box, exterior as determined from examining outer edges of the bounding box in projection (display) space. Alternatively, the edges closest to the viewer (i.e., camera position) can be drawn.

To use this object you must define a bounding box and the camera used to render the vtkCubeAxesActor2D. You may optionally define font family, font size, bolding on/off, italics on/off, and text shadows on/off. (The camera is used to control the scaling and position of the vtkCubeAxesActor2D so that it fits in the viewport and always remains visible.)

The bounding box to use is defined in one of three ways. First, if the Input ivar is defined, then the input dataset's bounds is used. If the Input is not defined, and the Prop (superclass of all actors) is defined, then the Prop's bounds is used. If neither the Input or Prop is defined, then the Bounds instance variable (an array of six floats) is used.

See also:
vtkActor2D vtkAxis2DActor vtkXYPlotActor
Examples:
vtkCubeAxesActor2D (Examples)
Tests:
vtkCubeAxesActor2D (Tests)

Definition at line 86 of file vtkCubeAxesActor2D.h.

Constructor & Destructor Documentation

vtkCubeAxesActor2D::vtkCubeAxesActor2D (    )  [protected]


vtkCubeAxesActor2D::~vtkCubeAxesActor2D (    )  [protected]


Member Function Documentation

virtual const char* vtkCubeAxesActor2D::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

int vtkCubeAxesActor2D::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

virtual int vtkCubeAxesActor2D::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

vtkCubeAxesActor2D* vtkCubeAxesActor2D::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkActor2D.

void vtkCubeAxesActor2D::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkActor2D.

vtkCubeAxesActor2D* vtkCubeAxesActor2D::New (    )  [static]


Instantiate object with bold, italic, and shadow enabled; font family set to Arial; and label format "6.3g". The number of labels per axis is set to 3.

Reimplemented from vtkActor2D.

int vtkCubeAxesActor2D::RenderOverlay (  vtkViewport *    viewport )  [virtual]


Draw the axes as per the vtkProp superclass' API.

Reimplemented from vtkActor2D.

int vtkCubeAxesActor2D::RenderOpaqueGeometry (  vtkViewport *    viewport )  [virtual]


Draw the axes as per the vtkProp superclass' API.

Reimplemented from vtkActor2D.

int vtkCubeAxesActor2D::RenderTranslucentGeometry (  vtkViewport *    viewport )  [inline, virtual]


Draw the axes as per the vtkProp superclass' API.

Reimplemented from vtkActor2D.

Definition at line 101 of file vtkCubeAxesActor2D.h.

virtual void vtkCubeAxesActor2D::SetInput (  vtkDataSet *    )  [virtual]


Use the bounding box of this input dataset to draw the cube axes. If this is not specified, then the class will attempt to determine the bounds from the defined Prop or Bounds.

virtual vtkDataSet* vtkCubeAxesActor2D::GetInput (    )  [virtual]


Use the bounding box of this input dataset to draw the cube axes. If this is not specified, then the class will attempt to determine the bounds from the defined Prop or Bounds.

virtual void vtkCubeAxesActor2D::SetProp (  vtkProp *    )  [virtual]


Use the bounding box of this prop to draw the cube axes. The Prop is used to determine the bounds only if the Input is not defined.

virtual vtkProp* vtkCubeAxesActor2D::GetProp (    )  [virtual]


Use the bounding box of this prop to draw the cube axes. The Prop is used to determine the bounds only if the Input is not defined.

virtual void vtkCubeAxesActor2D::SetBounds (  float   ,
float   ,
float   ,
float   ,
float   ,
float
)  [virtual]


Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

virtual void vtkCubeAxesActor2D::SetBounds (  float   [6] )  [virtual]


Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

float* vtkCubeAxesActor2D::GetBounds (    )  [virtual]


Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

Reimplemented from vtkProp.

void vtkCubeAxesActor2D::GetBounds (  float &    xmin,
float &    xmax,
float &    ymin,
float &    ymax,
float &    zmin,
float &    zmax
)


Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

void vtkCubeAxesActor2D::GetBounds (  float    bounds[6] )


Explicitly specify the region in space around which to draw the bounds. The bounds is used only when no Input or Prop is specified. The bounds are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

virtual void vtkCubeAxesActor2D::SetRanges (  float   ,
float   ,
float   ,
float   ,
float   ,
float
)  [virtual]


Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

virtual void vtkCubeAxesActor2D::SetRanges (  float   [6] )  [virtual]


Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

float* vtkCubeAxesActor2D::GetRanges (    )


Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

void vtkCubeAxesActor2D::GetRanges (  float &    xmin,
float &    xmax,
float &    ymin,
float &    ymax,
float &    zmin,
float &    zmax
)


Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

void vtkCubeAxesActor2D::GetRanges (  float    ranges[6] )


Explicitly specify the range of values used on the bounds. The ranges are specified according to (xmin,xmax, ymin,ymax, zmin,zmax), making sure that the min's are less than the max's.

virtual void vtkCubeAxesActor2D::SetUseRanges (  int    )  [virtual]


Set/Get a flag that controls whether the axes use the data ranges or the ranges set by SetRanges. By default the axes use the data ranges.

virtual int vtkCubeAxesActor2D::GetUseRanges (    )  [virtual]


Set/Get a flag that controls whether the axes use the data ranges or the ranges set by SetRanges. By default the axes use the data ranges.

virtual void vtkCubeAxesActor2D::UseRangesOn (    )  [virtual]


Set/Get a flag that controls whether the axes use the data ranges or the ranges set by SetRanges. By default the axes use the data ranges.

virtual void vtkCubeAxesActor2D::UseRangesOff (    )  [virtual]


Set/Get a flag that controls whether the axes use the data ranges or the ranges set by SetRanges. By default the axes use the data ranges.

virtual void vtkCubeAxesActor2D::SetCamera (  vtkCamera *    )  [virtual]


Set/Get the camera to perform scaling and translation of the vtkCubeAxesActor2D.

virtual vtkCamera* vtkCubeAxesActor2D::GetCamera (    )  [virtual]


Set/Get the camera to perform scaling and translation of the vtkCubeAxesActor2D.

virtual void vtkCubeAxesActor2D::SetFlyMode (  int    )  [virtual]


Specify a mode to control how the axes are drawn: either outer edges or closest triad to the camera position.

virtual int vtkCubeAxesActor2D::GetFlyMode (    )  [virtual]


Specify a mode to control how the axes are drawn: either outer edges or closest triad to the camera position.

void vtkCubeAxesActor2D::SetFlyModeToOuterEdges (    )  [inline]


Specify a mode to control how the axes are drawn: either outer edges or closest triad to the camera position.

Definition at line 162 of file vtkCubeAxesActor2D.h.

void vtkCubeAxesActor2D::SetFlyModeToClosestTriad (    )  [inline]


Specify a mode to control how the axes are drawn: either outer edges or closest triad to the camera position.

Definition at line 164 of file vtkCubeAxesActor2D.h.

virtual void vtkCubeAxesActor2D::SetScaling (  int    )  [virtual]


Set/Get a flag that controls whether the axes are scaled to fit in the viewport. If off, the axes size remains constant (i.e., stay the size of the bounding box). By default scaling is on so the axes are scaled to fit inside the viewport.

virtual int vtkCubeAxesActor2D::GetScaling (    )  [virtual]


Set/Get a flag that controls whether the axes are scaled to fit in the viewport. If off, the axes size remains constant (i.e., stay the size of the bounding box). By default scaling is on so the axes are scaled to fit inside the viewport.

virtual void vtkCubeAxesActor2D::ScalingOn (    )  [virtual]


Set/Get a flag that controls whether the axes are scaled to fit in the viewport. If off, the axes size remains constant (i.e., stay the size of the bounding box). By default scaling is on so the axes are scaled to fit inside the viewport.

virtual void vtkCubeAxesActor2D::ScalingOff (    )  [virtual]


Set/Get a flag that controls whether the axes are scaled to fit in the viewport. If off, the axes size remains constant (i.e., stay the size of the bounding box). By default scaling is on so the axes are scaled to fit inside the viewport.

virtual void vtkCubeAxesActor2D::SetNumberOfLabels (  int    )  [virtual]


Set/Get the number of annotation labels to show along the x, y, and z axes. This values is a suggestion: the number of labels may vary depending on the particulars of the data.

virtual int vtkCubeAxesActor2D::GetNumberOfLabels (    )  [virtual]


Set/Get the number of annotation labels to show along the x, y, and z axes. This values is a suggestion: the number of labels may vary depending on the particulars of the data.

virtual void vtkCubeAxesActor2D::SetXLabel (  const char *    )  [virtual]


Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual char* vtkCubeAxesActor2D::GetXLabel (    )  [virtual]


Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual void vtkCubeAxesActor2D::SetYLabel (  const char *    )  [virtual]


Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual char* vtkCubeAxesActor2D::GetYLabel (    )  [virtual]


Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual void vtkCubeAxesActor2D::SetZLabel (  const char *    )  [virtual]


Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual char* vtkCubeAxesActor2D::GetZLabel (    )  [virtual]


Set/Get the labels for the x, y, and z axes. By default, use "X", "Y" and "Z".

virtual void vtkCubeAxesActor2D::SetBold (  int    )  [virtual]


Enable/Disable bolding annotation text.

virtual int vtkCubeAxesActor2D::GetBold (    )  [virtual]


Enable/Disable bolding annotation text.

virtual void vtkCubeAxesActor2D::BoldOn (    )  [virtual]


Enable/Disable bolding annotation text.

virtual void vtkCubeAxesActor2D::BoldOff (    )  [virtual]


Enable/Disable bolding annotation text.

virtual void vtkCubeAxesActor2D::SetItalic (  int    )  [virtual]


Enable/Disable italicizing annotation text.

virtual int vtkCubeAxesActor2D::GetItalic (    )  [virtual]


Enable/Disable italicizing annotation text.

virtual void vtkCubeAxesActor2D::ItalicOn (    )  [virtual]


Enable/Disable italicizing annotation text.

virtual void vtkCubeAxesActor2D::ItalicOff (    )  [virtual]


Enable/Disable italicizing annotation text.

virtual void vtkCubeAxesActor2D::SetShadow (  int    )  [virtual]


Enable/Disable creating shadows on the annotation text. Shadows make the text easier to read.

virtual int vtkCubeAxesActor2D::GetShadow (    )  [virtual]


Enable/Disable creating shadows on the annotation text. Shadows make the text easier to read.

virtual void vtkCubeAxesActor2D::ShadowOn (    )  [virtual]


Enable/Disable creating shadows on the annotation text. Shadows make the text easier to read.

virtual void vtkCubeAxesActor2D::ShadowOff (    )  [virtual]


Enable/Disable creating shadows on the annotation text. Shadows make the text easier to read.

virtual void vtkCubeAxesActor2D::SetFontFamily (  int    )  [virtual]


Set/Get the font family for the annotation text. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES).

virtual int vtkCubeAxesActor2D::GetFontFamily (    )  [virtual]


Set/Get the font family for the annotation text. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES).

void vtkCubeAxesActor2D::SetFontFamilyToArial (    )  [inline]


Set/Get the font family for the annotation text. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES).

Definition at line 225 of file vtkCubeAxesActor2D.h.

void vtkCubeAxesActor2D::SetFontFamilyToCourier (    )  [inline]


Set/Get the font family for the annotation text. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES).

Definition at line 226 of file vtkCubeAxesActor2D.h.

void vtkCubeAxesActor2D::SetFontFamilyToTimes (    )  [inline]


Set/Get the font family for the annotation text. Three font types are available: Arial (VTK_ARIAL), Courier (VTK_COURIER), and Times (VTK_TIMES).

Definition at line 227 of file vtkCubeAxesActor2D.h.

virtual void vtkCubeAxesActor2D::SetLabelFormat (  const char *    )  [virtual]


Set/Get the format with which to print the labels on each of the x-y-z axes.

virtual char* vtkCubeAxesActor2D::GetLabelFormat (    )  [virtual]


Set/Get the format with which to print the labels on each of the x-y-z axes.

virtual void vtkCubeAxesActor2D::SetFontFactor (  float    )  [virtual]


Set/Get the factor that controls the overall size of the fonts used to label and title the axes.

virtual float vtkCubeAxesActor2D::GetFontFactor (    )  [virtual]


Set/Get the factor that controls the overall size of the fonts used to label and title the axes.

virtual void vtkCubeAxesActor2D::SetInertia (  int    )  [virtual]


Set/Get the inertial factor that controls how often (i.e, how many renders) the axes can switch position (jump from one axes to another).

virtual float vtkCubeAxesActor2D::GetInertia (    )  [virtual]


Set/Get the inertial factor that controls how often (i.e, how many renders) the axes can switch position (jump from one axes to another).

virtual void vtkCubeAxesActor2D::SetCornerOffset (  float    )  [virtual]


Specify an offset value to "pull back" the axes from the corner at which they are joined to avoid overlap of axes labels. The "COrnerOffset" is the fraction of the axis length to pull back.

virtual float vtkCubeAxesActor2D::GetCornerOffset (    )  [virtual]


Specify an offset value to "pull back" the axes from the corner at which they are joined to avoid overlap of axes labels. The "COrnerOffset" is the fraction of the axis length to pull back.

void vtkCubeAxesActor2D::ReleaseGraphicsResources (  vtkWindow *    )  [virtual]


Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkActor2D.

virtual void vtkCubeAxesActor2D::SetXAxisVisibility (  int    )  [virtual]


Turn on and off the visibility of each axis.

virtual int vtkCubeAxesActor2D::GetXAxisVisibility (    )  [virtual]


Turn on and off the visibility of each axis.

virtual void vtkCubeAxesActor2D::XAxisVisibilityOn (    )  [virtual]


Turn on and off the visibility of each axis.

virtual void vtkCubeAxesActor2D::XAxisVisibilityOff (    )  [virtual]


Turn on and off the visibility of each axis.

virtual void vtkCubeAxesActor2D::SetYAxisVisibility (  int    )  [virtual]


Turn on and off the visibility of each axis.

virtual int vtkCubeAxesActor2D::GetYAxisVisibility (    )  [virtual]


Turn on and off the visibility of each axis.

virtual void vtkCubeAxesActor2D::YAxisVisibilityOn (    )  [virtual]


Turn on and off the visibility of each axis.

virtual void vtkCubeAxesActor2D::YAxisVisibilityOff (    )  [virtual]


Turn on and off the visibility of each axis.

virtual void vtkCubeAxesActor2D::SetZAxisVisibility (  int    )  [virtual]


Turn on and off the visibility of each axis.

virtual int vtkCubeAxesActor2D::GetZAxisVisibility (    )  [virtual]


Turn on and off the visibility of each axis.

virtual void vtkCubeAxesActor2D::ZAxisVisibilityOn (    )  [virtual]


Turn on and off the visibility of each axis.

virtual void vtkCubeAxesActor2D::ZAxisVisibilityOff (    )  [virtual]


Turn on and off the visibility of each axis.

void vtkCubeAxesActor2D::ShallowCopy (  vtkCubeAxesActor2D *    actor )


Shallow copy of a CubeAxesActor2D.

void vtkCubeAxesActor2D::TransformBounds (  vtkViewport *    viewport,
float    bounds[6],
float    pts[8][3]
)  [protected]


int vtkCubeAxesActor2D::ClipBounds (  vtkViewport *    viewport,
float    pts[8][3],
float    bounds[6]
)  [protected]


float vtkCubeAxesActor2D::EvaluatePoint (  float    planes[24],
float    x[3]
)  [protected]


float vtkCubeAxesActor2D::EvaluateBounds (  float    planes[24],
float    bounds[6]
)  [protected]


void vtkCubeAxesActor2D::AdjustAxes (  float    pts[8][3],
float    bounds[6],
int    idx,
int    xIdx,
int    yIdx,
int    zIdx,
int    zIdx2,
int    xAxes,
int    yAxes,
int    zAxes,
float    xCoords[4],
float    yCoords[4],
float    zCoords[4],
float    xRange[2],
float    yRange[2],
float    zRange[2]
)  [protected]


Member Data Documentation

vtkDataSet* vtkCubeAxesActor2D::Input [protected]


Definition at line 285 of file vtkCubeAxesActor2D.h.

vtkProp* vtkCubeAxesActor2D::Prop [protected]


Definition at line 286 of file vtkCubeAxesActor2D.h.

float vtkCubeAxesActor2D::Bounds[6] [protected]


Definition at line 287 of file vtkCubeAxesActor2D.h.

float vtkCubeAxesActor2D::Ranges[6] [protected]


Definition at line 288 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::UseRanges [protected]


Definition at line 289 of file vtkCubeAxesActor2D.h.

vtkCamera* vtkCubeAxesActor2D::Camera [protected]


Definition at line 291 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::FlyMode [protected]


Definition at line 292 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::Scaling [protected]


Definition at line 293 of file vtkCubeAxesActor2D.h.

vtkAxisActor2D* vtkCubeAxesActor2D::XAxis [protected]


Definition at line 295 of file vtkCubeAxesActor2D.h.

vtkAxisActor2D* vtkCubeAxesActor2D::YAxis [protected]


Definition at line 296 of file vtkCubeAxesActor2D.h.

vtkAxisActor2D* vtkCubeAxesActor2D::ZAxis [protected]


Definition at line 297 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::NumberOfLabels [protected]


Definition at line 299 of file vtkCubeAxesActor2D.h.

char* vtkCubeAxesActor2D::XLabel [protected]


Definition at line 300 of file vtkCubeAxesActor2D.h.

char* vtkCubeAxesActor2D::YLabel [protected]


Definition at line 301 of file vtkCubeAxesActor2D.h.

char* vtkCubeAxesActor2D::ZLabel [protected]


Definition at line 302 of file vtkCubeAxesActor2D.h.

char* vtkCubeAxesActor2D::Labels[3] [protected]


Definition at line 303 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::XAxisVisibility [protected]


Definition at line 305 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::YAxisVisibility [protected]


Definition at line 306 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::ZAxisVisibility [protected]


Definition at line 307 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::Bold [protected]


Definition at line 309 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::Italic [protected]


Definition at line 310 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::Shadow [protected]


Definition at line 311 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::FontFamily [protected]


Definition at line 312 of file vtkCubeAxesActor2D.h.

char* vtkCubeAxesActor2D::LabelFormat [protected]


Definition at line 313 of file vtkCubeAxesActor2D.h.

float vtkCubeAxesActor2D::FontFactor [protected]


Definition at line 314 of file vtkCubeAxesActor2D.h.

float vtkCubeAxesActor2D::CornerOffset [protected]


Definition at line 315 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::Inertia [protected]


Definition at line 316 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::RenderCount [protected]


Definition at line 317 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::InertiaAxes[8] [protected]


Definition at line 318 of file vtkCubeAxesActor2D.h.

int vtkCubeAxesActor2D::RenderSomething [protected]


Definition at line 320 of file vtkCubeAxesActor2D.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:28:20 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
