vtkActor2D Class Reference

a actor that draws 2D data. More...

#include <vtkActor2D.h>

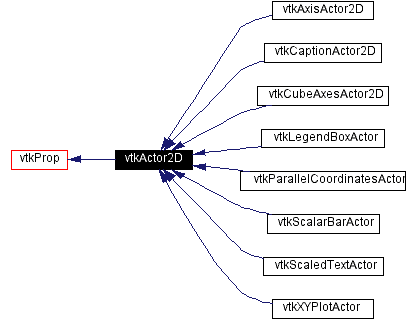

Inheritance diagram for vtkActor2D:

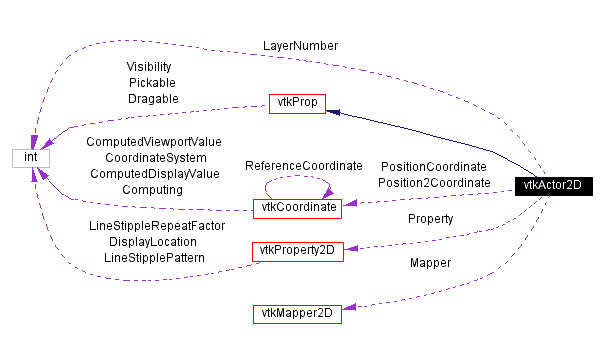

[legend]Collaboration diagram for vtkActor2D:

[legend]List of all members.

Public Methods
void	PrintSelf (ostream &os, vtkIndent indent)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
vtkProperty2D *	GetProperty ()
void	SetDisplayPosition (int, int)
unsigned long	GetMTime ()
virtual void	GetActors2D (vtkPropCollection *pc)
void	ShallowCopy (vtkProp *prop)
virtual void	ReleaseGraphicsResources (vtkWindow *)
int	RenderOverlay (vtkViewport *viewport)
int	RenderOpaqueGeometry (vtkViewport *viewport)
int	RenderTranslucentGeometry (vtkViewport *viewport)
void	SetMapper (vtkMapper2D *mapper)
virtual vtkMapper2D *	GetMapper ()
virtual void	SetLayerNumber (int)
virtual int	GetLayerNumber ()
virtual void	SetProperty (vtkProperty2D *)
virtual vtkCoordinate *	GetPositionCoordinate ()
virtual void	SetPosition (float x[2])
virtual void	SetPosition (float x, float y)
virtual float *	GetPosition ()
virtual vtkCoordinate *	GetPosition2Coordinate ()
virtual void	SetPosition2 (float x[2])
virtual void	SetPosition2 (float x, float y)
virtual float *	GetPosition2 ()
void	SetWidth (float w)
float	GetWidth ()
void	SetHeight (float h)
float	GetHeight ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkActor2D *	SafeDownCast (vtkObject *o)
vtkActor2D *	New ()
Protected Methods
	vtkActor2D ()
	~vtkActor2D ()
Protected Attributes
vtkMapper2D *	Mapper
int	LayerNumber
vtkProperty2D *	Property
vtkCoordinate *	PositionCoordinate
vtkCoordinate *	Position2Coordinate

---

Detailed Description

a actor that draws 2D data.

Date:

2001/10/11 13:35:59

Revision:

1.33

Thanks:

Thanks to Matt Turek who developed this class.

vtkActor2D is similar to vtkActor, but it is made to be used with two dimensional images and annotation. vtkActor2D has a position but does not use a transformation matrix like vtkActor (see the superclass vtkProp for information on positioning vtkActor2D). vtkActor2D has a reference to a vtkMapper2D object which does the rendering.

See also:

vtkProp vtkMapper2D vtkProperty2D

Examples:

vtkActor2D (Examples)

Tests:

vtkActor2D (Tests)

Definition at line 71 of file vtkActor2D.h.

---

Constructor & Destructor Documentation

vtkActor2D::vtkActor2D (    )  [protected]

vtkActor2D::~vtkActor2D (    )  [protected]

---

Member Function Documentation

void vtkActor2D::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

virtual const char* vtkActor2D::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

int vtkActor2D::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

virtual int vtkActor2D::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

vtkActor2D* vtkActor2D::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

vtkActor2D* vtkActor2D::New (    )  [static]

Creates an actor2D with the following defaults: position (0,0) (coordinate system is viewport); at layer 0. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

int vtkActor2D::RenderOverlay (  vtkViewport *    viewport )  [virtual]

Support the standard render methods. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

int vtkActor2D::RenderOpaqueGeometry (  vtkViewport *    viewport )  [virtual]

Support the standard render methods. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

int vtkActor2D::RenderTranslucentGeometry (  vtkViewport *    viewport )  [virtual]

Support the standard render methods. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

void vtkActor2D::SetMapper (  vtkMapper2D *    mapper )

Set/Get the vtkMapper2D which defines the data to be drawn. Referenced by vtkScaledTextActor::LastOrigin().

virtual vtkMapper2D* vtkActor2D::GetMapper (    )  [virtual]

Set/Get the vtkMapper2D which defines the data to be drawn.

virtual void vtkActor2D::SetLayerNumber (  int    )  [virtual]

Set/Get the layer number in the overlay planes into which to render.

virtual int vtkActor2D::GetLayerNumber (    )  [virtual]

Set/Get the layer number in the overlay planes into which to render.

vtkProperty2D* vtkActor2D::GetProperty (    )

Returns this actor's vtkProperty2D. Creates a property if one doesn't already exist.

virtual void vtkActor2D::SetProperty (  vtkProperty2D *    )  [virtual]

Set this vtkProp's vtkProperty2D.

virtual vtkCoordinate* vtkActor2D::GetPositionCoordinate (    )  [virtual]

Get the PositionCoordinate instance of vtkCoordinate. This is used for for complicated or relative positioning. The position variable controls the lower left corner of the Actor2D

virtual void vtkActor2D::SetPosition (  float    x[2] )  [virtual]

Get the PositionCoordinate instance of vtkCoordinate. This is used for for complicated or relative positioning. The position variable controls the lower left corner of the Actor2D

virtual void vtkActor2D::SetPosition (  float    x, float    y )  [virtual]

Get the PositionCoordinate instance of vtkCoordinate. This is used for for complicated or relative positioning. The position variable controls the lower left corner of the Actor2D

virtual float* vtkActor2D::GetPosition (    )  [virtual]

Get the PositionCoordinate instance of vtkCoordinate. This is used for for complicated or relative positioning. The position variable controls the lower left corner of the Actor2D

void vtkActor2D::SetDisplayPosition (  int   , int    )

Set the Prop2D's position in display coordinates.

virtual vtkCoordinate* vtkActor2D::GetPosition2Coordinate (    )  [virtual]

Access the Position2 instance variable. This variable controls the upper right corner of the Actor2D. It is by default relative to Position and in normalized viewport coordinates. Some 2D actor subclasses ignore the position2 variable

virtual void vtkActor2D::SetPosition2 (  float    x[2] )  [virtual]

Access the Position2 instance variable. This variable controls the upper right corner of the Actor2D. It is by default relative to Position and in normalized viewport coordinates. Some 2D actor subclasses ignore the position2 variable

virtual void vtkActor2D::SetPosition2 (  float    x, float    y )  [virtual]

Access the Position2 instance variable. This variable controls the upper right corner of the Actor2D. It is by default relative to Position and in normalized viewport coordinates. Some 2D actor subclasses ignore the position2 variable

virtual float* vtkActor2D::GetPosition2 (    )  [virtual]

Access the Position2 instance variable. This variable controls the upper right corner of the Actor2D. It is by default relative to Position and in normalized viewport coordinates. Some 2D actor subclasses ignore the position2 variable

void vtkActor2D::SetWidth (  float    w )

Set/Get the height and width of the Actor2D. The value is expressed as a fraction of the viewport. This really is just another way of setting the Position2 instance variable.

float vtkActor2D::GetWidth (    )

Set/Get the height and width of the Actor2D. The value is expressed as a fraction of the viewport. This really is just another way of setting the Position2 instance variable.

void vtkActor2D::SetHeight (  float    h )

Set/Get the height and width of the Actor2D. The value is expressed as a fraction of the viewport. This really is just another way of setting the Position2 instance variable.

float vtkActor2D::GetHeight (    )

Set/Get the height and width of the Actor2D. The value is expressed as a fraction of the viewport. This really is just another way of setting the Position2 instance variable.

unsigned long vtkActor2D::GetMTime (    )  [virtual]

Return this objects MTime. Reimplemented from vtkObject. Reimplemented in vtkXYPlotActor.

virtual void vtkActor2D::GetActors2D (  vtkPropCollection *    pc )  [virtual]

For some exporters and other other operations we must be able to collect all the actors or volumes. These methods are used in that process. Reimplemented from vtkProp.

void vtkActor2D::ShallowCopy (  vtkProp *    prop )  [virtual]

Shallow copy of this vtkActor2D. Overloads the virtual vtkProp method. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkLegendBoxActor, vtkAxisActor2D, vtkScalarBarActor, and vtkScaledTextActor.

virtual void vtkActor2D::ReleaseGraphicsResources (  vtkWindow *    )  [virtual]

Release any graphics resources that are being consumed by this actor. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkProp. Reimplemented in vtkCaptionActor2D, vtkCubeAxesActor2D, vtkLegendBoxActor, vtkXYPlotActor, vtkAxisActor2D, vtkParallelCoordinatesActor, vtkScalarBarActor, and vtkScaledTextActor.

---

Member Data Documentation

vtkMapper2D* vtkActor2D::Mapper [protected]

Definition at line 158 of file vtkActor2D.h.

int vtkActor2D::LayerNumber [protected]

Definition at line 159 of file vtkActor2D.h.

vtkProperty2D* vtkActor2D::Property [protected]

Definition at line 160 of file vtkActor2D.h.

vtkCoordinate* vtkActor2D::PositionCoordinate [protected]

Definition at line 161 of file vtkActor2D.h.

vtkCoordinate* vtkActor2D::Position2Coordinate [protected]

Definition at line 162 of file vtkActor2D.h.

---

The documentation for this class was generated from the following file:

• Common/vtkActor2D.h

---
