vtkDataObjectSource Class Reference

abstract class specifies interface for. More...

#include <vtkDataObjectSource.h>

Inheritance diagram for vtkDataObjectSource:

Inheritance graph
[legend]

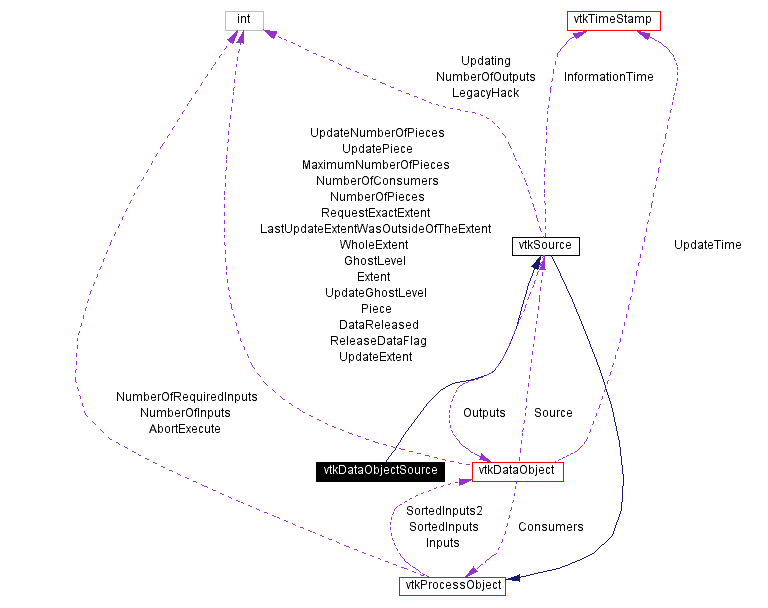

Collaboration diagram for vtkDataObjectSource:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
vtkDataObjectGetOutput ()
vtkDataObjectGetOutput (int idx)
void SetOutput (vtkDataObject *)

Static Public Methods

vtkDataObjectSource * New ()
int IsTypeOf (const char *type)
vtkDataObjectSource * SafeDownCast (vtkObject *o)

Protected Methods

 vtkDataObjectSource ()
 ~vtkDataObjectSource ()

Detailed Description

abstract class specifies interface for.

Date:
2001/10/11 13:36:33
Revision:
1.14
field source (or objects that generate field output)

vtkDataObjectSource is an abstract object that specifies behavior and interface of field source objects. Field source objects are source objects that create vtkFieldData (field data) on output.

Concrete subclasses of vtkDataObjectSource must define Update() and Execute() methods. The public method Update() invokes network execution and will bring the network up-to-date. The protected Execute() method actually does the work of data creation/generation. The difference between the two methods is that Update() implements input consistency checks and modified time comparisons and then invokes the Execute() which is an implementation of a particular algorithm.

vtkDataObjectSource provides a mechanism for invoking the methods StartMethod() and EndMethod() before and after object execution (via Execute()). These are convenience methods you can use for any purpose (e.g., debugging info, highlighting/notifying user interface, etc.) These methods accept a single void* pointer that can be used to send data to the methods. It is also possible to specify a function to delete the argument via StartMethodArgDelete and EndMethodArgDelete.

Another method, ProgressMethod() can be specified. Some filters invoke this method periodically during their execution. The use is similar to that of StartMethod() and EndMethod().

An important feature of subclasses of vtkDataObjectSource is that it is possible to control the memory-management model (i.e., retain output versus delete output data). If enabled the ReleaseDataFlag enables the deletion of the output data once the downstream process object finishes processing the data (please see text).

See also:
vtkSource vtkFilter vtkFieldDataFilter

Definition at line 89 of file vtkDataObjectSource.h.


Constructor & Destructor Documentation

vtkDataObjectSource::vtkDataObjectSource   [protected]


vtkDataObjectSource::~vtkDataObjectSource   [inline, protected]


Definition at line 105 of file vtkDataObjectSource.h.


Member Function Documentation

vtkDataObjectSource* vtkDataObjectSource::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkSource.

Reimplemented in vtkDataSetToDataObjectFilter.

virtual const char* vtkDataObjectSource::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataSetToDataObjectFilter.

int vtkDataObjectSource::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataSetToDataObjectFilter.

virtual int vtkDataObjectSource::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataSetToDataObjectFilter.

vtkDataObjectSource* vtkDataObjectSource::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

Reimplemented in vtkDataSetToDataObjectFilter.

vtkDataObject* vtkDataObjectSource::GetOutput


Get the output field of this source.

vtkDataObject* vtkDataObjectSource::GetOutput int    idx [inline]


Get the output field of this source.

Reimplemented from vtkSource.

Definition at line 98 of file vtkDataObjectSource.h.

void vtkDataObjectSource::SetOutput vtkDataObject


Get the output field of this source.


The documentation for this class was generated from the following file:
