vtkExtentTranslator Class Reference

Generates a structured extent from unstructured. More...

#include <vtkExtentTranslator.h>

Inheritance diagram for vtkExtentTranslator:

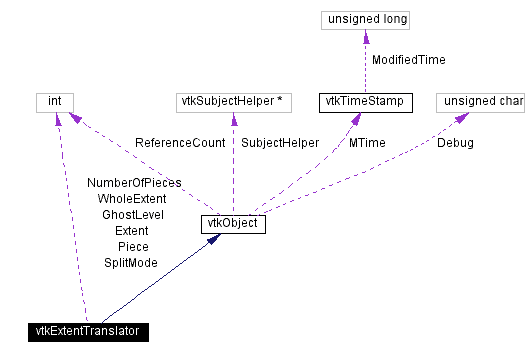

[legend]Collaboration diagram for vtkExtentTranslator:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetWholeExtent (int, int, int, int, int, int)
virtual void	SetWholeExtent (int[6])
virtual int *	GetWholeExtent ()
virtual void	GetWholeExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetWholeExtent (int[6])
virtual void	SetExtent (int, int, int, int, int, int)
virtual void	SetExtent (int[6])
virtual int *	GetExtent ()
virtual void	GetExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetExtent (int[6])
virtual void	SetPiece (int)
virtual int	GetPiece ()
virtual void	SetNumberOfPieces (int)
virtual int	GetNumberOfPieces ()
virtual void	SetGhostLevel (int)
virtual int	GetGhostLevel ()

virtual int	PieceToExtent ()
virtual int	PieceToExtentByPoints ()
virtual int	PieceToExtentThreadSafe (int piece, int numPieces, int ghostLevel, int wholeExtent, int resultExtent, int splitMode, int byPoints)

void	SetSplitModeToBlock ()
void	SetSplitModeToXSlab ()
void	SetSplitModeToYSlab ()
void	SetSplitModeToZSlab ()
virtual int	GetSplitMode ()
Static Public Methods
vtkExtentTranslator *	New ()
int	IsTypeOf (const char *type)
vtkExtentTranslator *	SafeDownCast (vtkObject *o)
Protected Types
enum	Modes { X_SLAB_MODE = 0, Y_SLAB_MODE = 1, Z_SLAB_MODE = 2, BLOCK_MODE = 3 }
Protected Methods
	vtkExtentTranslator ()
	~vtkExtentTranslator ()

int	SplitExtent (int piece, int numPieces, int *extent, int splitMode)
int	SplitExtentByPoints (int piece, int numPieces, int *extent, int splitMode)
Protected Attributes
int	Piece
int	NumberOfPieces
int	GhostLevel
int	Extent [6]
int	WholeExtent [6]
int	SplitMode

Detailed Description

Generates a structured extent from unstructured.

Date:: 2001/11/06 14:11:37

Revision:: 1.13

vtkExtentTranslator generates a structured extent from an unstructured extent. It uses a recursive scheme that splits the largest axis. A hard coded extent can be used for a starting point.

Warning:: This object is still under development.

Definition at line 61 of file vtkExtentTranslator.h.

Member Enumeration Documentation

enum vtkExtentTranslator::Modes [protected]

Enumeration values:

X_SLAB_MODE

Y_SLAB_MODE

Z_SLAB_MODE

BLOCK_MODE

Definition at line 138 of file vtkExtentTranslator.h.

Constructor & Destructor Documentation

vtkExtentTranslator::vtkExtentTranslator ( ) [protected]

vtkExtentTranslator::~vtkExtentTranslator ( ) [protected]

Member Function Documentation

vtkExtentTranslator* vtkExtentTranslator::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.
Reimplemented in vtkBranchExtentTranslator.

virtual const char* vtkExtentTranslator::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkBranchExtentTranslator.

int vtkExtentTranslator::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkBranchExtentTranslator.

virtual int vtkExtentTranslator::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkBranchExtentTranslator.

vtkExtentTranslator* vtkExtentTranslator::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkBranchExtentTranslator.

void vtkExtentTranslator::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkObject.
Reimplemented in vtkBranchExtentTranslator.

virtual void vtkExtentTranslator::SetWholeExtent ( int ,

int ,

int ,

int ,

int ,

int

) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::SetWholeExtent ( int [6] ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual int* vtkExtentTranslator::GetWholeExtent ( ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::GetWholeExtent ( int & ,

int & ,

int & ,

int & ,

int & ,

int &

) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::GetWholeExtent ( int [6] ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::SetExtent ( int ,

int ,

int ,

int ,

int ,

int

) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::SetExtent ( int [6] ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual int* vtkExtentTranslator::GetExtent ( ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::GetExtent ( int & ,

int & ,

int & ,

int & ,

int & ,

int &

) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::GetExtent ( int [6] ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::SetPiece ( int ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual int vtkExtentTranslator::GetPiece ( ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::SetNumberOfPieces ( int ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual int vtkExtentTranslator::GetNumberOfPieces ( ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual void vtkExtentTranslator::SetGhostLevel ( int ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual int vtkExtentTranslator::GetGhostLevel ( ) [virtual]

Set the Piece/NumPieces. Set the WholeExtent and then call PieceToExtent. The result can be obtained from the Extent ivar.

virtual int vtkExtentTranslator::PieceToExtent ( ) [virtual]

These are the main methods that should be called. These methods are responsible for converting a piece to an extent. The signatures without arguments are only thread safe when each thread accesses a different instance. The signatures with arguements are fully thread safe.
Reimplemented in vtkBranchExtentTranslator.

virtual int vtkExtentTranslator::PieceToExtentByPoints ( ) [virtual]

These are the main methods that should be called. These methods are responsible for converting a piece to an extent. The signatures without arguments are only thread safe when each thread accesses a different instance. The signatures with arguements are fully thread safe.

virtual int vtkExtentTranslator::PieceToExtentThreadSafe ( int piece,

int numPieces,

int ghostLevel,

int * wholeExtent,

int * resultExtent,

int splitMode,

int byPoints

) [virtual]

These are the main methods that should be called. These methods are responsible for converting a piece to an extent. The signatures without arguments are only thread safe when each thread accesses a different instance. The signatures with arguements are fully thread safe.

void vtkExtentTranslator::SetSplitModeToBlock ( ) [inline]

How should the streamer break up extents. Block mode tries to break an extent up into cube blocks. It always chooses the largest axis to split. Slab mode first breaks up the Z axis. If it gets to one slice, then it starts breaking up other axes.
Definition at line 105 of file vtkExtentTranslator.h.

void vtkExtentTranslator::SetSplitModeToXSlab ( ) [inline]

How should the streamer break up extents. Block mode tries to break an extent up into cube blocks. It always chooses the largest axis to split. Slab mode first breaks up the Z axis. If it gets to one slice, then it starts breaking up other axes.
Definition at line 107 of file vtkExtentTranslator.h.

void vtkExtentTranslator::SetSplitModeToYSlab ( ) [inline]

How should the streamer break up extents. Block mode tries to break an extent up into cube blocks. It always chooses the largest axis to split. Slab mode first breaks up the Z axis. If it gets to one slice, then it starts breaking up other axes.
Definition at line 109 of file vtkExtentTranslator.h.

void vtkExtentTranslator::SetSplitModeToZSlab ( ) [inline]

How should the streamer break up extents. Block mode tries to break an extent up into cube blocks. It always chooses the largest axis to split. Slab mode first breaks up the Z axis. If it gets to one slice, then it starts breaking up other axes.
Definition at line 111 of file vtkExtentTranslator.h.

virtual int vtkExtentTranslator::GetSplitMode ( ) [virtual]

How should the streamer break up extents. Block mode tries to break an extent up into cube blocks. It always chooses the largest axis to split. Slab mode first breaks up the Z axis. If it gets to one slice, then it starts breaking up other axes.

int vtkExtentTranslator::SplitExtent ( int piece,

int numPieces,

int * extent,

int splitMode

) [protected]

Returns 0 if no data exist for a piece. The whole extent Should be passed in as the extent. It is modified to return the result.

int vtkExtentTranslator::SplitExtentByPoints ( int piece,

int numPieces,

int * extent,

int splitMode

) [protected]

Returns 0 if no data exist for a piece. The whole extent Should be passed in as the extent. It is modified to return the result.

Member Data Documentation

int vtkExtentTranslator::Piece [protected]

Definition at line 128 of file vtkExtentTranslator.h.

int vtkExtentTranslator::NumberOfPieces [protected]

Definition at line 129 of file vtkExtentTranslator.h.

int vtkExtentTranslator::GhostLevel [protected]

Definition at line 130 of file vtkExtentTranslator.h.

int vtkExtentTranslator::Extent[6] [protected]

Definition at line 131 of file vtkExtentTranslator.h.

int vtkExtentTranslator::WholeExtent[6] [protected]

Definition at line 132 of file vtkExtentTranslator.h.

int vtkExtentTranslator::SplitMode [protected]

Definition at line 133 of file vtkExtentTranslator.h.

The documentation for this class was generated from the following file:

Common/vtkExtentTranslator.h
