vtkBranchExtentTranslator Class Reference
Uses alternative source for whole extent.
More...
#include <vtkBranchExtentTranslator.h>
Inheritance diagram for vtkBranchExtentTranslator:

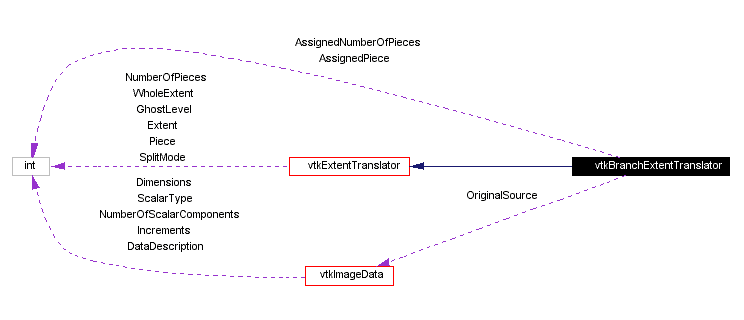

[legend]Collaboration diagram for vtkBranchExtentTranslator:
[legend]List of all members.
Detailed Description
Uses alternative source for whole extent.
-
Date:
-
2001/10/11 13:37:57
-
Revision:
-
1.7
vtkBranchExtentTranslator is like extent translator, but it uses an alternative source as a whole extent. The whole extent passed is assumed to be a subextent of the original source. we simply take the intersection of the split extent and the whole extdent passed in. We are attempting to make branching pipelines request consistent extents with the same piece requests.
-
Warning:
-
This object is still under development.
-
Tests:
-
vtkBranchExtentTranslator (Tests)
Definition at line 68 of file vtkBranchExtentTranslator.h.
Constructor & Destructor Documentation
| vtkBranchExtentTranslator::vtkBranchExtentTranslator |
( |
|
) |
[protected] |
|
| vtkBranchExtentTranslator::~vtkBranchExtentTranslator |
( |
|
) |
[protected] |
|
Member Function Documentation
| vtkBranchExtentTranslator* vtkBranchExtentTranslator::New |
( |
|
) |
[static] |
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkExtentTranslator. |
| virtual const char* vtkBranchExtentTranslator::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkBranchExtentTranslator::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkExtentTranslator. |
| virtual int vtkBranchExtentTranslator::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkExtentTranslator. |
| vtkBranchExtentTranslator* vtkBranchExtentTranslator::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
|
|
Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkExtentTranslator. |
| void vtkBranchExtentTranslator::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkExtentTranslator. |
| virtual void vtkBranchExtentTranslator::SetOriginalSource |
( |
vtkImageData * |
|
) |
[virtual] |
|
|
|
This is the original upstream image source. |
| virtual vtkImageData* vtkBranchExtentTranslator::GetOriginalSource |
( |
|
) |
[virtual] |
|
|
|
This is the original upstream image source. |
| int vtkBranchExtentTranslator::PieceToExtent |
( |
|
) |
[virtual] |
|
| virtual void vtkBranchExtentTranslator::SetAssignedPiece |
( |
int |
|
) |
[virtual] |
|
|
|
This unstructured extent/piece is store here for the users convenience. It is not used internally. The intent was to let an "assignment" be made when the translator/first source is created. The translator/assignment can be used for any new filter that uses the original source as output. Branches will then have the same assignment. |
| virtual int vtkBranchExtentTranslator::GetAssignedPiece |
( |
|
) |
[virtual] |
|
|
|
This unstructured extent/piece is store here for the users convenience. It is not used internally. The intent was to let an "assignment" be made when the translator/first source is created. The translator/assignment can be used for any new filter that uses the original source as output. Branches will then have the same assignment. |
| virtual void vtkBranchExtentTranslator::SetAssignedNumberOfPieces |
( |
int |
|
) |
[virtual] |
|
|
|
This unstructured extent/piece is store here for the users convenience. It is not used internally. The intent was to let an "assignment" be made when the translator/first source is created. The translator/assignment can be used for any new filter that uses the original source as output. Branches will then have the same assignment. |
| virtual int vtkBranchExtentTranslator::GetAssignedNumberOfPieces |
( |
|
) |
[virtual] |
|
|
|
This unstructured extent/piece is store here for the users convenience. It is not used internally. The intent was to let an "assignment" be made when the translator/first source is created. The translator/assignment can be used for any new filter that uses the original source as output. Branches will then have the same assignment. |
Member Data Documentation
vtkImageData* vtkBranchExtentTranslator::OriginalSource [protected]
|
|
int vtkBranchExtentTranslator::AssignedPiece [protected]
|
|
int vtkBranchExtentTranslator::AssignedNumberOfPieces [protected]
|
|
The documentation for this class was generated from the following file:
