vtkExtractGrid Class Reference

select piece (e.g., volume of interest) and/or subsample structured grid dataset. More...

#include <vtkExtractGrid.h>

Inheritance diagram for vtkExtractGrid:

Inheritance graph
[legend]

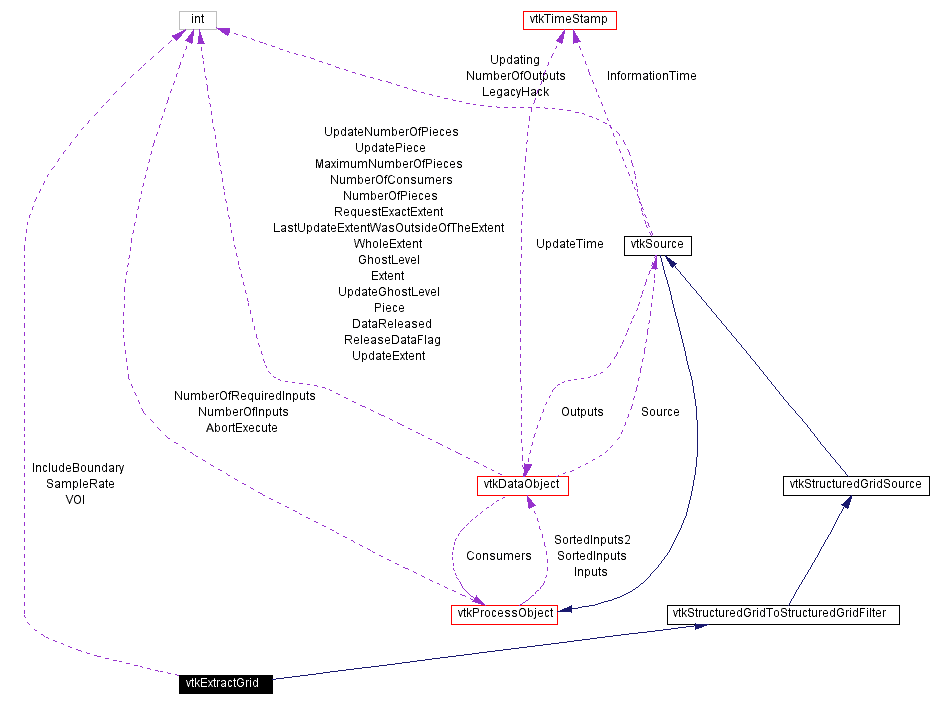

Collaboration diagram for vtkExtractGrid:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetVOI (int, int, int, int, int, int)
virtual void SetVOI (int[6])
virtual int * GetVOI ()
virtual void GetVOI (int data[6])
virtual void SetSampleRate (int, int, int)
virtual void SetSampleRate (int[3])
virtual int * GetSampleRate ()
virtual void GetSampleRate (int data[3])
virtual void SetIncludeBoundary (int)
virtual int GetIncludeBoundary ()
virtual void IncludeBoundaryOn ()
virtual void IncludeBoundaryOff ()

Static Public Methods

vtkExtractGrid * New ()
int IsTypeOf (const char *type)
vtkExtractGrid * SafeDownCast (vtkObject *o)

Protected Methods

 vtkExtractGrid ()
 ~vtkExtractGrid ()
void Execute ()
void ExecuteInformation ()
void ComputeInputUpdateExtents (vtkDataObject *out)

Protected Attributes

int VOI [6]
int SampleRate [3]
int IncludeBoundary

Detailed Description

select piece (e.g., volume of interest) and/or subsample structured grid dataset.

Date:
2001/10/11 13:37:00
Revision:
1.29

vtkExtractGrid is a filter that selects a portion of an input structured grid dataset, or subsamples an input dataset. (The selected portion of interested is referred to as the Volume Of Interest, or VOI.) The output of this filter is a structured grid dataset. The filter treats input data of any topological dimension (i.e., point, line, image, or volume) and can generate output data of any topological dimension.

To use this filter set the VOI ivar which are i-j-k min/max indices that specify a rectangular region in the data. (Note that these are 0-offset.) You can also specify a sampling rate to subsample the data.

Typical applications of this filter are to extract a plane from a grid for contouring, subsampling large grids to reduce data size, or extracting regions of a grid with interesting data.

See also:
vtkGeometryFilter vtkExtractGeometry vtkExtractVOI vtkStructuredGridGeometryFilter
Examples:
vtkExtractGrid (Examples)
Tests:
vtkExtractGrid (Tests)

Definition at line 78 of file vtkExtractGrid.h.


Constructor & Destructor Documentation

vtkExtractGrid::vtkExtractGrid   [protected]


vtkExtractGrid::~vtkExtractGrid   [inline, protected]


Definition at line 116 of file vtkExtractGrid.h.


Member Function Documentation

vtkExtractGrid* vtkExtractGrid::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkStructuredGridSource.

virtual const char* vtkExtractGrid::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredGridToStructuredGridFilter.

int vtkExtractGrid::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredGridToStructuredGridFilter.

virtual int vtkExtractGrid::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredGridToStructuredGridFilter.

vtkExtractGrid* vtkExtractGrid::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkStructuredGridToStructuredGridFilter.

void vtkExtractGrid::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

virtual void vtkExtractGrid::SetVOI int   ,
int   ,
int   ,
int   ,
int   ,
int
[virtual]


Specify i-j-k (min,max) pairs to extract. The resulting structured grid dataset can be of any topological dimension (i.e., point, line, plane, or 3D grid).

virtual void vtkExtractGrid::SetVOI int   [6] [virtual]


Specify i-j-k (min,max) pairs to extract. The resulting structured grid dataset can be of any topological dimension (i.e., point, line, plane, or 3D grid).

virtual int* vtkExtractGrid::GetVOI   [virtual]


Specify i-j-k (min,max) pairs to extract. The resulting structured grid dataset can be of any topological dimension (i.e., point, line, plane, or 3D grid).

virtual void vtkExtractGrid::GetVOI int    data[6] [virtual]


Specify i-j-k (min,max) pairs to extract. The resulting structured grid dataset can be of any topological dimension (i.e., point, line, plane, or 3D grid).

virtual void vtkExtractGrid::SetSampleRate int   ,
int   ,
int
[virtual]


Set the sampling rate in the i, j, and k directions. If the rate is > 1, then the resulting VOI will be subsampled representation of the input. For example, if the SampleRate=(2,2,2), every other point will be selected, resulting in a volume 1/8th the original size.

virtual void vtkExtractGrid::SetSampleRate int   [3] [virtual]


Set the sampling rate in the i, j, and k directions. If the rate is > 1, then the resulting VOI will be subsampled representation of the input. For example, if the SampleRate=(2,2,2), every other point will be selected, resulting in a volume 1/8th the original size.

virtual int* vtkExtractGrid::GetSampleRate   [virtual]


Set the sampling rate in the i, j, and k directions. If the rate is > 1, then the resulting VOI will be subsampled representation of the input. For example, if the SampleRate=(2,2,2), every other point will be selected, resulting in a volume 1/8th the original size.

virtual void vtkExtractGrid::GetSampleRate int    data[3] [virtual]


Set the sampling rate in the i, j, and k directions. If the rate is > 1, then the resulting VOI will be subsampled representation of the input. For example, if the SampleRate=(2,2,2), every other point will be selected, resulting in a volume 1/8th the original size.

virtual void vtkExtractGrid::SetIncludeBoundary int    [virtual]


Control whether to enforce that the "boundary" of the grid is output in the subsampling process. (This ivar only has effect when the SampleRate in any direction is not equal to 1.) When this ivar IncludeBoundary is on, the subsampling will always include the boundary of the grid even though the sample rate is not an even multiple of the grid dimensions. (By default IncludeBoundary is off.)

virtual int vtkExtractGrid::GetIncludeBoundary   [virtual]


Control whether to enforce that the "boundary" of the grid is output in the subsampling process. (This ivar only has effect when the SampleRate in any direction is not equal to 1.) When this ivar IncludeBoundary is on, the subsampling will always include the boundary of the grid even though the sample rate is not an even multiple of the grid dimensions. (By default IncludeBoundary is off.)

virtual void vtkExtractGrid::IncludeBoundaryOn   [virtual]


Control whether to enforce that the "boundary" of the grid is output in the subsampling process. (This ivar only has effect when the SampleRate in any direction is not equal to 1.) When this ivar IncludeBoundary is on, the subsampling will always include the boundary of the grid even though the sample rate is not an even multiple of the grid dimensions. (By default IncludeBoundary is off.)

virtual void vtkExtractGrid::IncludeBoundaryOff   [virtual]


Control whether to enforce that the "boundary" of the grid is output in the subsampling process. (This ivar only has effect when the SampleRate in any direction is not equal to 1.) When this ivar IncludeBoundary is on, the subsampling will always include the boundary of the grid even though the sample rate is not an even multiple of the grid dimensions. (By default IncludeBoundary is off.)

void vtkExtractGrid::Execute   [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.

void vtkExtractGrid::ExecuteInformation   [protected, virtual]


Reimplemented from vtkSource.

void vtkExtractGrid::ComputeInputUpdateExtents vtkDataObject   out [protected, virtual]


What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses.

Reimplemented from vtkSource.


Member Data Documentation

int vtkExtractGrid::VOI[6] [protected]


Definition at line 122 of file vtkExtractGrid.h.

int vtkExtractGrid::SampleRate[3] [protected]


Definition at line 123 of file vtkExtractGrid.h.

int vtkExtractGrid::IncludeBoundary [protected]


Definition at line 124 of file vtkExtractGrid.h.


The documentation for this class was generated from the following file:
