vtkStructuredGridSource Class Reference

Abstract class whose subclasses generates structured grid data. More...

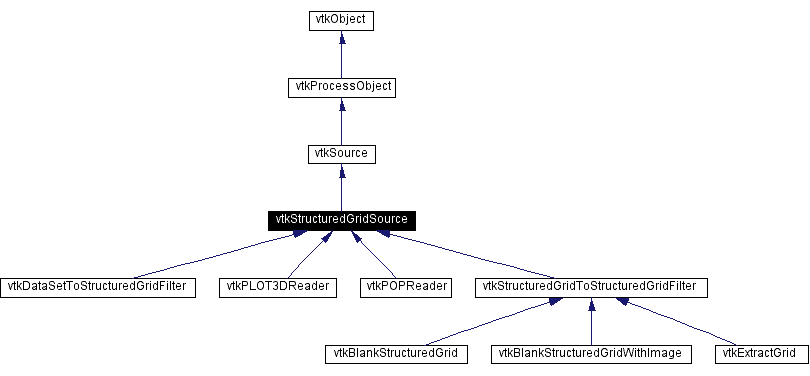

Inheritance diagram for vtkStructuredGridSource:

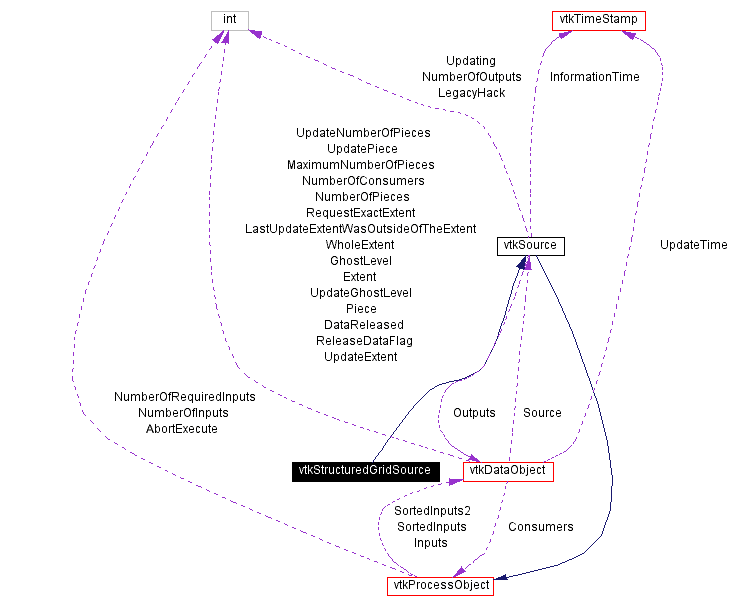

[legend]Collaboration diagram for vtkStructuredGridSource:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)

vtkStructuredGrid *	GetOutput ()
vtkStructuredGrid *	GetOutput (int idx)
void	SetOutput (vtkStructuredGrid *output)
Static Public Methods
vtkStructuredGridSource *	New ()
int	IsTypeOf (const char *type)
vtkStructuredGridSource *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkStructuredGridSource ()
	~vtkStructuredGridSource ()

Detailed Description

Abstract class whose subclasses generates structured grid data.

vtkStructuredGridSource is an abstract class whose subclasses generate structured grid data.

Definition at line 59 of file vtkStructuredGridSource.h.

vtkStructuredGridSource::vtkStructuredGridSource ( ) [protected]

vtkStructuredGridSource::~vtkStructuredGridSource ( ) [inline, protected]

Definition at line 75 of file vtkStructuredGridSource.h.

vtkStructuredGridSource* vtkStructuredGridSource::New ( ) [static]

Instantiate object with no start, end, or progress methods.
Reimplemented from vtkSource.
Reimplemented in vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

virtual const char* vtkStructuredGridSource::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkSource.
Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

int vtkStructuredGridSource::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkSource.
Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

virtual int vtkStructuredGridSource::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkSource.
Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

vtkStructuredGridSource* vtkStructuredGridSource::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkSource.
Reimplemented in vtkDataSetToStructuredGridFilter, vtkStructuredGridToStructuredGridFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkExtractGrid, vtkPLOT3DReader, and vtkPOPReader.

vtkStructuredGrid* vtkStructuredGridSource::GetOutput ( )

Get the output of this source.

vtkStructuredGrid* vtkStructuredGridSource::GetOutput ( int idx ) [inline]

Get the output of this source.
Reimplemented from vtkSource.
Definition at line 68 of file vtkStructuredGridSource.h.

void vtkStructuredGridSource::SetOutput ( vtkStructuredGrid * output )

Get the output of this source.

The documentation for this class was generated from the following file:
