vtkGenericCell Class Reference

provides thread-safe access to cells. More...

#include <vtkGenericCell.h>

Inheritance diagram for vtkGenericCell:

Inheritance graph
[legend]

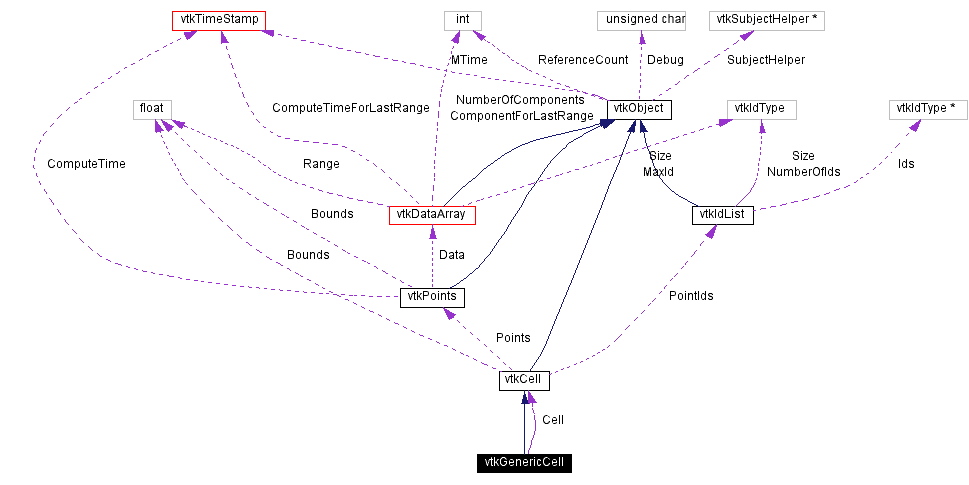

Collaboration diagram for vtkGenericCell:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
vtkCell * MakeObject ()
void ShallowCopy (vtkCell *c)
void DeepCopy (vtkCell *c)
int GetCellType ()
int GetCellDimension ()
int GetInterpolationOrder ()
int GetNumberOfEdges ()
int GetNumberOfFaces ()
vtkCell * GetEdge (int edgeId)
vtkCell * GetFace (int faceId)
int CellBoundary (int subId, float pcoords[3], vtkIdList *pts)
int EvaluatePosition (float x[3], float *closestPoint, int &subId, float pcoords[3], float &dist2, float *weights)
void EvaluateLocation (int &subId, float pcoords[3], float x[3], float *weights)
void Contour (float value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *verts, vtkCellArray *lines, vtkCellArray *polys, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd)
void Clip (float value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *connectivity, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)
int IntersectWithLine (float p1[3], float p2[3], float tol, float &t, float x[3], float pcoords[3], int &subId)
int Triangulate (int index, vtkIdList *ptIds, vtkPoints *pts)
void Derivatives (int subId, float pcoords[3], float *values, int dim, float *derivs)
int GetParametricCenter (float pcoords[3])
void SetCellType (int cellType)
void SetCellTypeToEmptyCell ()
void SetCellTypeToVertex ()
void SetCellTypeToPolyVertex ()
void SetCellTypeToLine ()
void SetCellTypeToPolyLine ()
void SetCellTypeToTriangle ()
void SetCellTypeToTriangleStrip ()
void SetCellTypeToPolygon ()
void SetCellTypeToPixel ()
void SetCellTypeToQuad ()
void SetCellTypeToTetra ()
void SetCellTypeToVoxel ()
void SetCellTypeToHexahedron ()
void SetCellTypeToWedge ()
void SetCellTypeToPyramid ()

Static Public Methods

vtkGenericCell * New ()
int IsTypeOf (const char *type)
vtkGenericCell * SafeDownCast (vtkObject *o)

Protected Methods

 vtkGenericCell ()
 ~vtkGenericCell ()

Protected Attributes

vtkCell * Cell

Detailed Description

provides thread-safe access to cells.

Date:
2001/11/13 14:09:25
Revision:
1.19

vtkGenericCell is a class that provides access to concrete types of cells. It's main purpose is to allow thread-safe access to cells, supporting the vtkDataSet::GetCell(vtkGenericCell *) method. vtkGenericCell acts like any type of cell, it just dereferences an internal representation.

See also:
vtkCell vtkDataSet
Tests:
vtkGenericCell (Tests)

Definition at line 62 of file vtkGenericCell.h.

Constructor & Destructor Documentation

vtkGenericCell::vtkGenericCell (    )  [protected]


vtkGenericCell::~vtkGenericCell (    )  [protected]


Member Function Documentation

vtkGenericCell* vtkGenericCell::New (    )  [static]


Create handle to any type of cell; by default a vtkEmptyCell.

Reimplemented from vtkObject.

virtual const char* vtkGenericCell::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

int vtkGenericCell::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

virtual int vtkGenericCell::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

vtkGenericCell* vtkGenericCell::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkCell.

vtkCell* vtkGenericCell::MakeObject (    )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkGenericCell::ShallowCopy (  vtkCell *    c )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkGenericCell::DeepCopy (  vtkCell *    c )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::GetCellType (    )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::GetCellDimension (    )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::GetInterpolationOrder (    )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::GetNumberOfEdges (    )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::GetNumberOfFaces (    )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

vtkCell* vtkGenericCell::GetEdge (  int    edgeId )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

vtkCell* vtkGenericCell::GetFace (  int    faceId )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::CellBoundary (  int    subId,
float    pcoords[3],
vtkIdList *    pts
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::EvaluatePosition (  float    x[3],
float *    closestPoint,
int &    subId,
float    pcoords[3],
float &    dist2,
float *    weights
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkGenericCell::EvaluateLocation (  int &    subId,
float    pcoords[3],
float    x[3],
float *    weights
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkGenericCell::Contour (  float    value,
vtkDataArray *    cellScalars,
vtkPointLocator *    locator,
vtkCellArray *    verts,
vtkCellArray *    lines,
vtkCellArray *    polys,
vtkPointData *    inPd,
vtkPointData *    outPd,
vtkCellData *    inCd,
vtkIdType    cellId,
vtkCellData *    outCd
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkGenericCell::Clip (  float    value,
vtkDataArray *    cellScalars,
vtkPointLocator *    locator,
vtkCellArray *    connectivity,
vtkPointData *    inPd,
vtkPointData *    outPd,
vtkCellData *    inCd,
vtkIdType    cellId,
vtkCellData *    outCd,
int    insideOut
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::IntersectWithLine (  float    p1[3],
float    p2[3],
float    tol,
float &    t,
float    x[3],
float    pcoords[3],
int &    subId
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::Triangulate (  int    index,
vtkIdList *    ptIds,
vtkPoints *    pts
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkGenericCell::Derivatives (  int    subId,
float    pcoords[3],
float *    values,
int    dim,
float *    derivs
)  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

int vtkGenericCell::GetParametricCenter (  float    pcoords[3] )  [virtual]


See the vtkCell API for descriptions of these methods.

Reimplemented from vtkCell.

void vtkGenericCell::SetCellType (  int    cellType )


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

void vtkGenericCell::SetCellTypeToEmptyCell (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 113 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToVertex (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 114 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToPolyVertex (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 115 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToLine (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 116 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToPolyLine (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 117 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToTriangle (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 118 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToTriangleStrip (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 119 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToPolygon (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 120 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToPixel (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 121 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToQuad (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 122 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToTetra (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 123 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToVoxel (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 124 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToHexahedron (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 125 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToWedge (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 126 of file vtkGenericCell.h.

void vtkGenericCell::SetCellTypeToPyramid (    )  [inline]


This method is used to support the vtkDataSet::GetCell(vtkGenericCell ) method. It allows vtkGenericCell to act like any cell type by dereferencing an internal instance of a concrete cell type. When you set the cell type, you are resetting a pointer to an internal cell which is then used for computation.

Definition at line 127 of file vtkGenericCell.h.

Member Data Documentation

vtkCell* vtkGenericCell::Cell [protected]


Definition at line 134 of file vtkGenericCell.h.

The documentation for this class was generated from the following file:
