vtkImageDecomposeFilter Class Reference

Filters that execute axes in series. More...

#include <vtkImageDecomposeFilter.h>

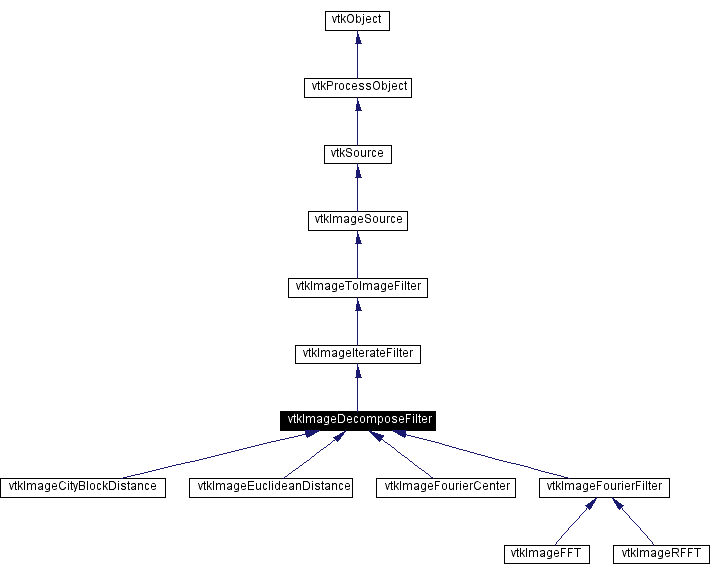

Inheritance diagram for vtkImageDecomposeFilter:

[legend]Collaboration diagram for vtkImageDecomposeFilter:

[legend]List of all members.

[NOHEADER]
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	IsTypeOf (const char *type)
vtkImageDecomposeFilter *	SafeDownCast (vtkObject *o)
Public Methods
void	SetDimensionality (int dim)
virtual int	GetDimensionality ()
void	SetFilteredAxes (int axis0)
void	SetFilteredAxes (int axis0, int axis2)
void	SetFilteredAxes (int axis0, int axis2, int axis3)
void	PermuteIncrements (int *increments, int &inc0, int &inc1, int &inc2)
void	PermuteExtent (int *extent, int &min0, int &max0, int &min1, int &max1, int &min2, int &max2)
Protected Methods
	vtkImageDecomposeFilter ()
	~vtkImageDecomposeFilter ()
Protected Attributes
int	Dimensionality

---

Detailed Description

Filters that execute axes in series.

Date:

2001/11/13 14:32:33

Revision:

1.21

Thanks:

Thanks to C. Charles Law who developed this class.

This superclass molds the vtkImageIterateFilter superclass so it iterates over the axes. The filter uses dimensionality to determine how many axes to execute (starting from x). The filter also provides convenience methods for permuting information retrieved from input, output and vtkImageData.

Definition at line 60 of file vtkImageDecomposeFilter.h.

---

Constructor & Destructor Documentation

vtkImageDecomposeFilter::vtkImageDecomposeFilter (    )  [protected]

vtkImageDecomposeFilter::~vtkImageDecomposeFilter (    )  [inline, protected]

Definition at line 95 of file vtkImageDecomposeFilter.h.

---

Member Function Documentation

virtual const char* vtkImageDecomposeFilter::GetClassName (    )  [virtual]

Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3. Reimplemented from vtkImageIterateFilter. Reimplemented in vtkImageCityBlockDistance, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFourierCenter, vtkImageFourierFilter, and vtkImageRFFT.

int vtkImageDecomposeFilter::IsTypeOf (  const char *    type )  [static]

Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3. Reimplemented from vtkImageIterateFilter. Reimplemented in vtkImageCityBlockDistance, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFourierCenter, vtkImageFourierFilter, and vtkImageRFFT.

virtual int vtkImageDecomposeFilter::IsA (  const char *    type )  [virtual]

Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3. Reimplemented from vtkImageIterateFilter. Reimplemented in vtkImageCityBlockDistance, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFourierCenter, vtkImageFourierFilter, and vtkImageRFFT.

vtkImageDecomposeFilter* vtkImageDecomposeFilter::SafeDownCast (  vtkObject *    o )  [static]

Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3. Reimplemented from vtkImageIterateFilter. Reimplemented in vtkImageCityBlockDistance, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFourierCenter, vtkImageFourierFilter, and vtkImageRFFT.

void vtkImageDecomposeFilter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Construct an instance of vtkImageDecomposeFilter filter with default dimensionality 3. Reimplemented from vtkImageIterateFilter. Reimplemented in vtkImageEuclideanDistance.

void vtkImageDecomposeFilter::SetDimensionality (  int    dim )

Dimensionality is the number of axes which are considered during execution. To process images dimensionality would be set to 2.

virtual int vtkImageDecomposeFilter::GetDimensionality (    )  [virtual]

Dimensionality is the number of axes which are considered during execution. To process images dimensionality would be set to 2.

void vtkImageDecomposeFilter::SetFilteredAxes (  int    axis0 )

Obsolete legacy methods.

void vtkImageDecomposeFilter::SetFilteredAxes (  int    axis0, int    axis2 )

Obsolete legacy methods.

void vtkImageDecomposeFilter::SetFilteredAxes (  int    axis0, int    axis2, int    axis3 )

Obsolete legacy methods.

void vtkImageDecomposeFilter::PermuteIncrements (  int *    increments, int &    inc0, int &    inc1, int &    inc2 )

Private methods kept public for template execute functions.

void vtkImageDecomposeFilter::PermuteExtent (  int *    extent, int &    min0, int &    max0, int &    min1, int &    max1, int &    min2, int &    max2 )

Private methods kept public for template execute functions.

---

Member Data Documentation

int vtkImageDecomposeFilter::Dimensionality [protected]

Definition at line 97 of file vtkImageDecomposeFilter.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageDecomposeFilter.h

---
