vtkImageExport Class Reference

Export VTK images to third-party systems. More...

#include <vtkImageExport.h>

Inheritance diagram for vtkImageExport:

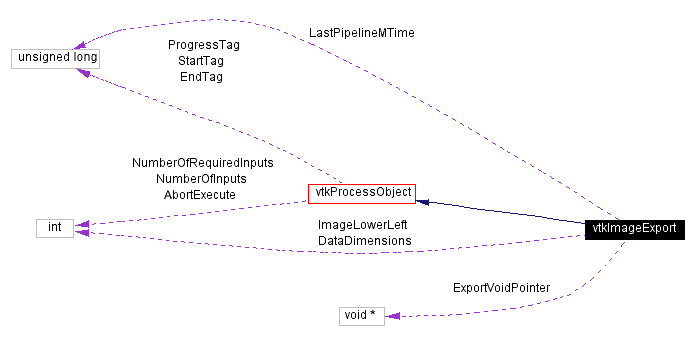

[legend]Collaboration diagram for vtkImageExport:

[legend]List of all members.

Public Types
typedef void(*	UpdateInformationCallbackType )(void *)
typedef int(*	PipelineModifiedCallbackType )(void *)
typedef int *(*	WholeExtentCallbackType )(void *)
typedef float *(*	SpacingCallbackType )(void *)
typedef float *(*	OriginCallbackType )(void *)
typedef const char *(*	ScalarTypeCallbackType )(void *)
typedef int(*	NumberOfComponentsCallbackType )(void *)
typedef void(*	PropagateUpdateExtentCallbackType )(void *, int *)
typedef void(*	UpdateDataCallbackType )(void *)
typedef int *(*	DataExtentCallbackType )(void *)
typedef void *(*	BufferPointerCallbackType )(void *)
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	GetDataMemorySize ()
void *	GetPointerToData ()
void *	GetCallbackUserData ()
void	GetDataDimensions (int *ptr)
int *	GetDataDimensions ()
int	GetDataNumberOfScalarComponents ()
int	GetDataScalarType ()
const char *	GetDataScalarTypeAsString ()
int *	GetDataExtent ()
void	GetDataExtent (int *ptr)
float *	GetDataSpacing ()
void	GetDataSpacing (float *ptr)
float *	GetDataOrigin ()
void	GetDataOrigin (float *ptr)
void	SetInput (vtkImageData *input)
vtkImageData *	GetInput ()
virtual void	ImageLowerLeftOn ()
virtual void	ImageLowerLeftOff ()
virtual int	GetImageLowerLeft ()
virtual void	SetImageLowerLeft (int)
void	SetExportVoidPointer (void *)
void *	GetExportVoidPointer ()
void	Export ()
virtual void	Export (void *)
UpdateInformationCallbackType	GetUpdateInformationCallback () const
PipelineModifiedCallbackType	GetPipelineModifiedCallback () const
WholeExtentCallbackType	GetWholeExtentCallback () const
SpacingCallbackType	GetSpacingCallback () const
OriginCallbackType	GetOriginCallback () const
ScalarTypeCallbackType	GetScalarTypeCallback () const
NumberOfComponentsCallbackType	GetNumberOfComponentsCallback () const
PropagateUpdateExtentCallbackType	GetPropagateUpdateExtentCallback () const
UpdateDataCallbackType	GetUpdateDataCallback () const
DataExtentCallbackType	GetDataExtentCallback () const
BufferPointerCallbackType	GetBufferPointerCallback () const
Static Public Methods
vtkImageExport *	New ()
int	IsTypeOf (const char *type)
vtkImageExport *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageExport ()
	~vtkImageExport ()
virtual void	UpdateInformationCallback ()
virtual int	PipelineModifiedCallback ()
virtual void	UpdateDataCallback ()
virtual int *	WholeExtentCallback ()
virtual float *	SpacingCallback ()
virtual float *	OriginCallback ()
virtual const char *	ScalarTypeCallback ()
virtual int	NumberOfComponentsCallback ()
virtual void	PropagateUpdateExtentCallback (int *)
virtual int *	DataExtentCallback ()
virtual void *	BufferPointerCallback ()
Protected Attributes
int	ImageLowerLeft
int	DataDimensions [3]
void *	ExportVoidPointer
unsigned long	LastPipelineMTime

---

Detailed Description

Export VTK images to third-party systems.

Date:

2001/10/25 20:29:27

Revision:

1.27

Thanks:

Thanks to David G. Gobbi who developed this class.

vtkImageExport provides a way of exporting image data at the end of a pipeline to a third-party system or to a simple C array. Applications can use this to get direct access to the image data in memory. A callback interface is provided to allow connection of the VTK pipeline to a third-party pipeline. This interface conforms to the interface of vtkImageImport. In Python it is possible to use this class to write the image data into a python string that has been pre-allocated to be the correct size.

See also:

vtkImageImport

Tests:

vtkImageExport (Tests)

Definition at line 70 of file vtkImageExport.h.

---

Member Typedef Documentation

typedef void(* vtkImageExport::UpdateInformationCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef int(* vtkImageExport::PipelineModifiedCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef int*(* vtkImageExport::WholeExtentCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef float*(* vtkImageExport::SpacingCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef float*(* vtkImageExport::OriginCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef const char*(* vtkImageExport::ScalarTypeCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef int(* vtkImageExport::NumberOfComponentsCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef void(* vtkImageExport::PropagateUpdateExtentCallbackType)(void*, int*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef void(* vtkImageExport::UpdateDataCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef int*(* vtkImageExport::DataExtentCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

typedef void*(* vtkImageExport::BufferPointerCallbackType)(void*)

These are function pointer types for the pipeline connection callbacks. See furhter documentation in vtkImageImport.h.

---

Constructor & Destructor Documentation

vtkImageExport::vtkImageExport (    )  [protected]

vtkImageExport::~vtkImageExport (    )  [protected]

---

Member Function Documentation

vtkImageExport* vtkImageExport::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkProcessObject.

virtual const char* vtkImageExport::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject.

int vtkImageExport::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject.

virtual int vtkImageExport::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject.

vtkImageExport* vtkImageExport::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject.

void vtkImageExport::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkProcessObject.

int vtkImageExport::GetDataMemorySize (    )

Get the number of bytes required for the output C array.

void vtkImageExport::GetDataDimensions (  int *    ptr )

Get the (x,y,z) index dimensions of the data. Please note that C arrays are indexed in decreasing order, i.e. array[z][y][x].

int* vtkImageExport::GetDataDimensions (    )  [inline]

Get the (x,y,z) index dimensions of the data. Please note that C arrays are indexed in decreasing order, i.e. array[z][y][x]. Definition at line 84 of file vtkImageExport.h.

int vtkImageExport::GetDataNumberOfScalarComponents (    )  [inline]

Get the number of scalar components of the data. Please note that when you index into a C array, the scalar component index comes last, i.e. array[z][y][x][c]. Definition at line 93 of file vtkImageExport.h.

int vtkImageExport::GetDataScalarType (    )  [inline]

Get the scalar type of the data. The scalar type of the C array must match the scalar type of the data. Definition at line 102 of file vtkImageExport.h.

const char* vtkImageExport::GetDataScalarTypeAsString (    )  [inline]

Get the scalar type of the data. The scalar type of the C array must match the scalar type of the data. Definition at line 106 of file vtkImageExport.h.

int* vtkImageExport::GetDataExtent (    )  [inline]

Get miscellaneous additional information about the data. Definition at line 112 of file vtkImageExport.h.

void vtkImageExport::GetDataExtent (  int *    ptr )  [inline]

Get miscellaneous additional information about the data. Definition at line 117 of file vtkImageExport.h.

float* vtkImageExport::GetDataSpacing (    )  [inline]

Get miscellaneous additional information about the data. Definition at line 122 of file vtkImageExport.h.

void vtkImageExport::GetDataSpacing (  float *    ptr )  [inline]

Get miscellaneous additional information about the data. Definition at line 127 of file vtkImageExport.h.

float* vtkImageExport::GetDataOrigin (    )  [inline]

Get miscellaneous additional information about the data. Definition at line 131 of file vtkImageExport.h.

void vtkImageExport::GetDataOrigin (  float *    ptr )  [inline]

Get miscellaneous additional information about the data. Definition at line 136 of file vtkImageExport.h.

void vtkImageExport::SetInput (  vtkImageData *    input )

Set/Get the input object from the image pipeline.

vtkImageData* vtkImageExport::GetInput (    )

Set/Get the input object from the image pipeline.

virtual void vtkImageExport::ImageLowerLeftOn (    )  [virtual]

Set/Get whether the data goes to the exported memory starting in the lower left corner or upper left corner. Default: On. When this flag is Off, the image will be flipped vertically before it is exported. WARNING: this flag is used only with the Export() method, it is ignored by GetPointerToData().

virtual void vtkImageExport::ImageLowerLeftOff (    )  [virtual]

Set/Get whether the data goes to the exported memory starting in the lower left corner or upper left corner. Default: On. When this flag is Off, the image will be flipped vertically before it is exported. WARNING: this flag is used only with the Export() method, it is ignored by GetPointerToData().

virtual int vtkImageExport::GetImageLowerLeft (    )  [virtual]

Set/Get whether the data goes to the exported memory starting in the lower left corner or upper left corner. Default: On. When this flag is Off, the image will be flipped vertically before it is exported. WARNING: this flag is used only with the Export() method, it is ignored by GetPointerToData().

virtual void vtkImageExport::SetImageLowerLeft (  int    )  [virtual]

Set/Get whether the data goes to the exported memory starting in the lower left corner or upper left corner. Default: On. When this flag is Off, the image will be flipped vertically before it is exported. WARNING: this flag is used only with the Export() method, it is ignored by GetPointerToData().

void vtkImageExport::SetExportVoidPointer (  void *    )

Set the void pointer of the C array to export the data to. From python, you can specify a pointer to a string that is large enough to hold the data.

void* vtkImageExport::GetExportVoidPointer (    )  [inline]

Set the void pointer of the C array to export the data to. From python, you can specify a pointer to a string that is large enough to hold the data. Definition at line 164 of file vtkImageExport.h.

void vtkImageExport::Export (    )  [inline]

The main interface: update the pipeline and export the image to the memory pointed to by SetExportVoidPointer(). You can also specify a void pointer when you call Export(). Definition at line 171 of file vtkImageExport.h.

virtual void vtkImageExport::Export (  void *    )  [virtual]

The main interface: update the pipeline and export the image to the memory pointed to by SetExportVoidPointer(). You can also specify a void pointer when you call Export().

void* vtkImageExport::GetPointerToData (    )

An alternative to Export(): Use with caution. Update the pipeline and return a pointer to the image memory. The pointer is only valid until the next time that the pipeline is updated. WARNING: This method ignores the ImageLowerLeft flag.

void* vtkImageExport::GetCallbackUserData (    )

Get the user data that should be passed to the callback functions.

UpdateInformationCallbackType vtkImageExport::GetUpdateInformationCallback (    )  const

Get pointers to the pipeline interface callbacks.

PipelineModifiedCallbackType vtkImageExport::GetPipelineModifiedCallback (    )  const

Get pointers to the pipeline interface callbacks.

WholeExtentCallbackType vtkImageExport::GetWholeExtentCallback (    )  const

Get pointers to the pipeline interface callbacks.

SpacingCallbackType vtkImageExport::GetSpacingCallback (    )  const

Get pointers to the pipeline interface callbacks.

OriginCallbackType vtkImageExport::GetOriginCallback (    )  const

Get pointers to the pipeline interface callbacks.

ScalarTypeCallbackType vtkImageExport::GetScalarTypeCallback (    )  const

Get pointers to the pipeline interface callbacks.

NumberOfComponentsCallbackType vtkImageExport::GetNumberOfComponentsCallback (    )  const

Get pointers to the pipeline interface callbacks.

PropagateUpdateExtentCallbackType vtkImageExport::GetPropagateUpdateExtentCallback (    )  const

Get pointers to the pipeline interface callbacks.

UpdateDataCallbackType vtkImageExport::GetUpdateDataCallback (    )  const

Get pointers to the pipeline interface callbacks.

DataExtentCallbackType vtkImageExport::GetDataExtentCallback (    )  const

Get pointers to the pipeline interface callbacks.

BufferPointerCallbackType vtkImageExport::GetBufferPointerCallback (    )  const

Get pointers to the pipeline interface callbacks.

virtual void vtkImageExport::UpdateInformationCallback (    )  [protected, virtual]

virtual int vtkImageExport::PipelineModifiedCallback (    )  [protected, virtual]

virtual void vtkImageExport::UpdateDataCallback (    )  [protected, virtual]

virtual int* vtkImageExport::WholeExtentCallback (    )  [protected, virtual]

virtual float* vtkImageExport::SpacingCallback (    )  [protected, virtual]

virtual float* vtkImageExport::OriginCallback (    )  [protected, virtual]

virtual const char* vtkImageExport::ScalarTypeCallback (    )  [protected, virtual]

virtual int vtkImageExport::NumberOfComponentsCallback (    )  [protected, virtual]

virtual void vtkImageExport::PropagateUpdateExtentCallback (  int *    )  [protected, virtual]

virtual int* vtkImageExport::DataExtentCallback (    )  [protected, virtual]

virtual void* vtkImageExport::BufferPointerCallback (    )  [protected, virtual]

---

Member Data Documentation

int vtkImageExport::ImageLowerLeft [protected]

Definition at line 233 of file vtkImageExport.h.

int vtkImageExport::DataDimensions[3] [protected]

Definition at line 234 of file vtkImageExport.h.

void* vtkImageExport::ExportVoidPointer [protected]

Definition at line 235 of file vtkImageExport.h.

unsigned long vtkImageExport::LastPipelineMTime [protected]

Definition at line 237 of file vtkImageExport.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageExport.h

---
