vtkImageSeedConnectivity Class Reference

SeedConnectivity with user defined seeds. More...

#include <vtkImageSeedConnectivity.h>

Inheritance diagram for vtkImageSeedConnectivity:

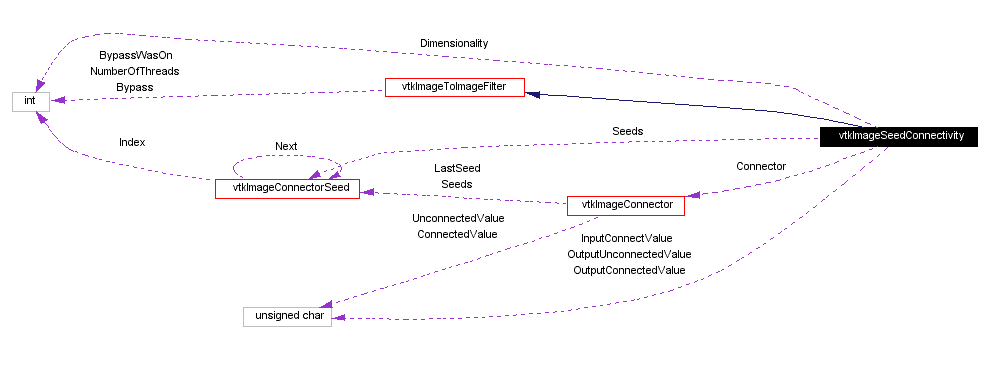

[legend]Collaboration diagram for vtkImageSeedConnectivity:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	RemoveAllSeeds ()
void	AddSeed (int num, int *index)
void	AddSeed (int i0, int i1, int i2)
void	AddSeed (int i0, int i1)
virtual void	SetInputConnectValue (int)
virtual int	GetInputConnectValue ()
virtual void	SetOutputConnectedValue (int)
virtual int	GetOutputConnectedValue ()
virtual void	SetOutputUnconnectedValue (int)
virtual int	GetOutputUnconnectedValue ()
virtual vtkImageConnector *	GetConnector ()
virtual void	SetDimensionality (int)
virtual int	GetDimensionality ()
Static Public Methods
vtkImageSeedConnectivity *	New ()
int	IsTypeOf (const char *type)
vtkImageSeedConnectivity *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageSeedConnectivity ()
	~vtkImageSeedConnectivity ()
void	ComputeInputUpdateExtents (vtkDataObject *out)
void	ExecuteData (vtkDataObject *out)
Protected Attributes
unsigned char	InputConnectValue
unsigned char	OutputConnectedValue
unsigned char	OutputUnconnectedValue
vtkImageConnectorSeed *	Seeds
vtkImageConnector *	Connector
int	Dimensionality

---

Detailed Description

SeedConnectivity with user defined seeds.

Date:

2001/10/11 13:37:52

Revision:

1.27

Thanks:

Thanks to C. Charles Law who developed this class.

vtkImageSeedConnectivity marks pixels connected to user supplied seeds. The input must be unsigned char, and the output is also unsigned char. If a seed supplied by the user does not have pixel value "InputTrueValue", then the image is scanned +x, +y, +z until a pixel is encountered with value "InputTrueValue". This new pixel is used as the seed . Any pixel with out value "InputTrueValue" is consider off. The output pixels values are 0 for any off pixel in input, "OutputTrueValue" for any pixels connected to seeds, and "OutputUnconnectedValue" for any on pixels not connected to seeds. The same seeds are used for all images in the image set.

Tests:

vtkImageSeedConnectivity (Tests)

Definition at line 69 of file vtkImageSeedConnectivity.h.

---

Constructor & Destructor Documentation

vtkImageSeedConnectivity::vtkImageSeedConnectivity (    )  [protected]

vtkImageSeedConnectivity::~vtkImageSeedConnectivity (    )  [protected]

---

Member Function Documentation

vtkImageSeedConnectivity* vtkImageSeedConnectivity::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageSeedConnectivity::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

int vtkImageSeedConnectivity::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

virtual int vtkImageSeedConnectivity::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

vtkImageSeedConnectivity* vtkImageSeedConnectivity::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

void vtkImageSeedConnectivity::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageToImageFilter.

void vtkImageSeedConnectivity::RemoveAllSeeds (    )

Methods for manipulating the seed pixels.

void vtkImageSeedConnectivity::AddSeed (  int    num, int *    index )

Methods for manipulating the seed pixels.

void vtkImageSeedConnectivity::AddSeed (  int    i0, int    i1, int    i2 )

Methods for manipulating the seed pixels.

void vtkImageSeedConnectivity::AddSeed (  int    i0, int    i1 )

Methods for manipulating the seed pixels.

virtual void vtkImageSeedConnectivity::SetInputConnectValue (  int    )  [virtual]

Set/Get what value is considered as connecting pixels.

virtual int vtkImageSeedConnectivity::GetInputConnectValue (    )  [virtual]

Set/Get what value is considered as connecting pixels.

virtual void vtkImageSeedConnectivity::SetOutputConnectedValue (  int    )  [virtual]

Set/Get the value to set connected pixels to.

virtual int vtkImageSeedConnectivity::GetOutputConnectedValue (    )  [virtual]

Set/Get the value to set connected pixels to.

virtual void vtkImageSeedConnectivity::SetOutputUnconnectedValue (  int    )  [virtual]

Set/Get the value to set unconnected pixels to.

virtual int vtkImageSeedConnectivity::GetOutputUnconnectedValue (    )  [virtual]

Set/Get the value to set unconnected pixels to.

virtual vtkImageConnector* vtkImageSeedConnectivity::GetConnector (    )  [virtual]

Get the vtkImageCOnnector used by this filter.

virtual void vtkImageSeedConnectivity::SetDimensionality (  int    )  [virtual]

Set the number of axes to use in connectivity.

virtual int vtkImageSeedConnectivity::GetDimensionality (    )  [virtual]

Set the number of axes to use in connectivity.

void vtkImageSeedConnectivity::ComputeInputUpdateExtents (  vtkDataObject *    out )  [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses. Reimplemented from vtkImageToImageFilter.

void vtkImageSeedConnectivity::ExecuteData (  vtkDataObject *    out )  [protected]

Reimplemented from vtkImageToImageFilter.

---

Member Data Documentation

unsigned char vtkImageSeedConnectivity::InputConnectValue [protected]

Definition at line 117 of file vtkImageSeedConnectivity.h.

unsigned char vtkImageSeedConnectivity::OutputConnectedValue [protected]

Definition at line 118 of file vtkImageSeedConnectivity.h.

unsigned char vtkImageSeedConnectivity::OutputUnconnectedValue [protected]

Definition at line 119 of file vtkImageSeedConnectivity.h.

vtkImageConnectorSeed* vtkImageSeedConnectivity::Seeds [protected]

Definition at line 120 of file vtkImageSeedConnectivity.h.

vtkImageConnector* vtkImageSeedConnectivity::Connector [protected]

Definition at line 121 of file vtkImageSeedConnectivity.h.

int vtkImageSeedConnectivity::Dimensionality [protected]

Definition at line 122 of file vtkImageSeedConnectivity.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageSeedConnectivity.h

---
