vtkImageToImageFilter Class Reference

Generic filter that has one input.. More...

#include <vtkImageToImageFilter.h>

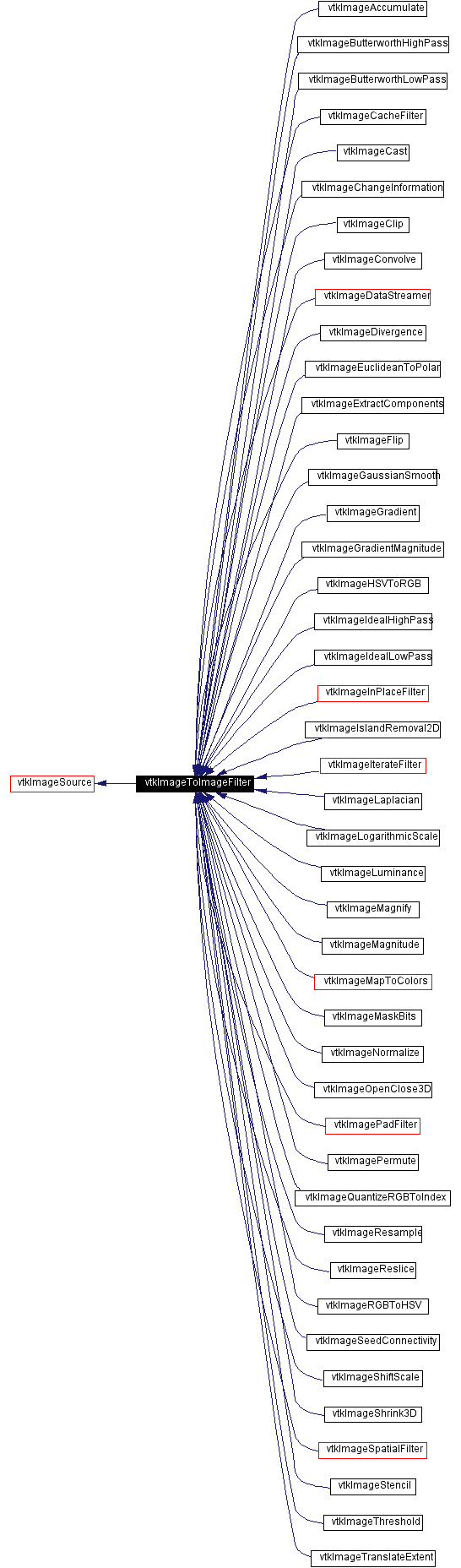

Inheritance diagram for vtkImageToImageFilter:

[legend]Collaboration diagram for vtkImageToImageFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetInputMemoryLimit (int)
long	GetInputMemoryLimit ()
virtual void	SetInput (vtkImageData *input)
vtkImageData *	GetInput ()
void	SetBypass (int)
void	BypassOn ()
void	BypassOff ()
virtual int	GetBypass ()
virtual void	ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int threadId)
virtual void	SetNumberOfThreads (int)
virtual int	GetNumberOfThreads ()
virtual int	SplitExtent (int splitExt[6], int startExt[6], int num, int total)
Static Public Methods
vtkImageToImageFilter *	New ()
int	IsTypeOf (const char *type)
vtkImageToImageFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageToImageFilter ()
	~vtkImageToImageFilter ()
void	ExecuteInformation ()
virtual void	ExecuteInformation (vtkImageData *inData, vtkImageData *outData)
void	ExecuteData (vtkDataObject *output)
void	MultiThread (vtkImageData *input, vtkImageData *output)
void	ComputeInputUpdateExtents (vtkDataObject *output)
virtual void	ComputeInputUpdateExtent (int inExt[6], int outExt[6])
Protected Attributes
vtkMultiThreader *	Threader
int	Bypass
int	BypassWasOn
int	NumberOfThreads

---

Detailed Description

Generic filter that has one input..

Date:

2001/11/13 14:12:57

Revision:

1.33

Thanks:

Thanks to C. Charles Law who developed this class.

vtkImageToImageFilter is a filter superclass that hides much of the pipeline complexity. It handles breaking the pipeline execution into smaller extents so that the vtkImageData limits are observed. It also provides support for multithreading. If you don't need any of this functionality, consider using vtkSimpleImageToImageFilter instead.

See also:

vtkSimpleImageToImageFilter

Examples:

vtkImageToImageFilter (Examples)

Definition at line 66 of file vtkImageToImageFilter.h.

---

Constructor & Destructor Documentation

vtkImageToImageFilter::vtkImageToImageFilter (    )  [protected]

vtkImageToImageFilter::~vtkImageToImageFilter (    )  [protected]

---

Member Function Documentation

vtkImageToImageFilter* vtkImageToImageFilter::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageSource. Reimplemented in vtkImageInPlaceFilter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDilateErode3D, vtkImageDivergence, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIslandRemoval2D, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMaskBits, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageThreshold, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, and vtkMemoryLimitImageDataStreamer.

virtual const char* vtkImageToImageFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource. Reimplemented in vtkImageInPlaceFilter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDilateErode3D, vtkImageDivergence, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMaskBits, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageThreshold, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, and vtkMemoryLimitImageDataStreamer.

int vtkImageToImageFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource. Reimplemented in vtkImageInPlaceFilter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDilateErode3D, vtkImageDivergence, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMaskBits, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageThreshold, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, and vtkMemoryLimitImageDataStreamer.

virtual int vtkImageToImageFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource. Reimplemented in vtkImageInPlaceFilter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDilateErode3D, vtkImageDivergence, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMaskBits, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageThreshold, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, and vtkMemoryLimitImageDataStreamer.

vtkImageToImageFilter* vtkImageToImageFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource. Reimplemented in vtkImageInPlaceFilter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageCityBlockDistance, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDilateErode3D, vtkImageDivergence, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMaskBits, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageThreshold, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, and vtkMemoryLimitImageDataStreamer.

void vtkImageToImageFilter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource. Reimplemented in vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCast, vtkImageChangeInformation, vtkImageClip, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDilateErode3D, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFlip, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSVToRGB, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageMagnify, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageMaskBits, vtkImageMedian3D, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageThreshold, vtkImageTranslateExtent, vtkImageVariance3D, and vtkMemoryLimitImageDataStreamer.

virtual void vtkImageToImageFilter::SetInput (  vtkImageData *    Input )  [virtual]

Set the Input of a filter. Reimplemented in vtkImageOpenClose3D.

vtkImageData* vtkImageToImageFilter::GetInput (    )

Set the Input of a filter.

void vtkImageToImageFilter::SetBypass (  int    )  [inline]

Obsolete feature - do not use. Definition at line 81 of file vtkImageToImageFilter.h.

void vtkImageToImageFilter::BypassOn (    )  [inline]

Obsolete feature - do not use. Definition at line 82 of file vtkImageToImageFilter.h.

void vtkImageToImageFilter::BypassOff (    )  [inline]

Obsolete feature - do not use. Definition at line 83 of file vtkImageToImageFilter.h.

virtual int vtkImageToImageFilter::GetBypass (    )  [virtual]

Obsolete feature - do not use.

virtual void vtkImageToImageFilter::ThreadedExecute (  vtkImageData *    inData, vtkImageData *    outRegion, int    ext[6], int    id )  [virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageDilateErode3D, vtkImageDivergence, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageMaskBits, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNormalize, vtkImagePermute, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, and vtkImageWrapPad.

virtual void vtkImageToImageFilter::SetNumberOfThreads (  int    )  [virtual]

Get/Set the number of threads to create when rendering

virtual int vtkImageToImageFilter::GetNumberOfThreads (    )  [virtual]

Get/Set the number of threads to create when rendering

void vtkImageToImageFilter::SetInputMemoryLimit (  int    )  [inline]

Definition at line 103 of file vtkImageToImageFilter.h.

long vtkImageToImageFilter::GetInputMemoryLimit (    )  [inline]

Definition at line 105 of file vtkImageToImageFilter.h.

virtual int vtkImageToImageFilter::SplitExtent (  int    splitExt[6], int    startExt[6], int    num, int    total )  [virtual]

Putting this here until I merge graphics and imaging streaming. Reimplemented in vtkImageEuclideanDistance, vtkImageFFT, and vtkImageRFFT.

void vtkImageToImageFilter::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource. Reimplemented in vtkImageAccumulate, vtkImageCast, vtkImageChangeInformation, vtkImageClip, vtkImageDivergence, vtkImageEuclideanDistance, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageGradient, vtkImageGradientMagnitude, vtkImageIterateFilter, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageShiftScale, vtkImageShrink3D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageThreshold, vtkImageTranslateExtent, and vtkImageVariance3D. Referenced by vtkImageVariance3D::ExecuteInformation(), vtkImageTranslateExtent::ExecuteInformation(), vtkImageThreshold::ExecuteInformation(), vtkImageStencil::ExecuteInformation(), vtkImageSobel3D::ExecuteInformation(), vtkImageSobel2D::ExecuteInformation(), vtkImageShrink3D::ExecuteInformation(), vtkImageShiftScale::ExecuteInformation(), vtkImageReslice::ExecuteInformation(), vtkImageResample::ExecuteInformation(), vtkImageRange3D::ExecuteInformation(), vtkImageQuantizeRGBToIndex::ExecuteInformation(), vtkImagePermute::ExecuteInformation(), vtkImagePadFilter::ExecuteInformation(), vtkImageNormalize::ExecuteInformation(), vtkImageMapToColors::ExecuteInformation(), vtkImageMagnitude::ExecuteInformation(), vtkImageMagnify::ExecuteInformation(), vtkImageLuminance::ExecuteInformation(), vtkImageGradientMagnitude::ExecuteInformation(), vtkImageGradient::ExecuteInformation(), vtkImageFlip::ExecuteInformation(), vtkImageExtractComponents::ExecuteInformation(), vtkImageDivergence::ExecuteInformation(), vtkImageClip::ExecuteInformation(), vtkImageChangeInformation::ExecuteInformation(), vtkImageCast::ExecuteInformation(), and vtkImageAccumulate::ExecuteInformation().

virtual void vtkImageToImageFilter::ExecuteInformation (  vtkImageData *    inData, vtkImageData *    outData )  [protected, virtual]

Reimplemented in vtkImageAccumulate, vtkImageCast, vtkImageChangeInformation, vtkImageClip, vtkImageDivergence, vtkImageEuclideanDistance, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageGradient, vtkImageGradientMagnitude, vtkImageIterateFilter, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageShiftScale, vtkImageShrink3D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageThreshold, vtkImageTranslateExtent, and vtkImageVariance3D.

void vtkImageToImageFilter::ExecuteData (  vtkDataObject *    data )  [protected]

Reimplemented in vtkImageInPlaceFilter, vtkImageAccumulate, vtkImageChangeInformation, vtkImageClip, vtkImageCursor3D, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageQuantizeRGBToIndex, vtkImageSeedConnectivity, and vtkImageTranslateExtent.

void vtkImageToImageFilter::MultiThread (  vtkImageData *    input, vtkImageData *    output )  [protected]

Referenced by vtkImageSkeleton2D::IterativeExecuteData(), vtkImageRFFT::IterativeExecuteData(), vtkImageFourierCenter::IterativeExecuteData(), and vtkImageFFT::IterativeExecuteData().

void vtkImageToImageFilter::ComputeInputUpdateExtents (  vtkDataObject *    output )  [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses. Reimplemented from vtkSource. Reimplemented in vtkImageIterateFilter, vtkImageReslice, and vtkImageSeedConnectivity.

virtual void vtkImageToImageFilter::ComputeInputUpdateExtent (  int    inExt[6], int    outExt[6] )  [protected, virtual]

Reimplemented in vtkImageAccumulate, vtkImageChangeInformation, vtkImageCityBlockDistance, vtkImageDivergence, vtkImageEuclideanDistance, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageIterateFilter, vtkImageLaplacian, vtkImageMagnify, vtkImageMirrorPad, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSpatialFilter, vtkImageTranslateExtent, and vtkImageWrapPad.

---

Member Data Documentation

vtkMultiThreader* vtkImageToImageFilter::Threader [protected]

Definition at line 118 of file vtkImageToImageFilter.h.

int vtkImageToImageFilter::Bypass [protected]

Definition at line 119 of file vtkImageToImageFilter.h.

int vtkImageToImageFilter::BypassWasOn [protected]

Definition at line 120 of file vtkImageToImageFilter.h.

int vtkImageToImageFilter::NumberOfThreads [protected]

Definition at line 121 of file vtkImageToImageFilter.h.

---

The documentation for this class was generated from the following file:

• Filtering/vtkImageToImageFilter.h

---
