vtkInteractorStyleJoystickCamera Class Reference

interactive manipulation of the camera. More...

#include <vtkInteractorStyleJoystickCamera.h>

Inheritance diagram for vtkInteractorStyleJoystickCamera:

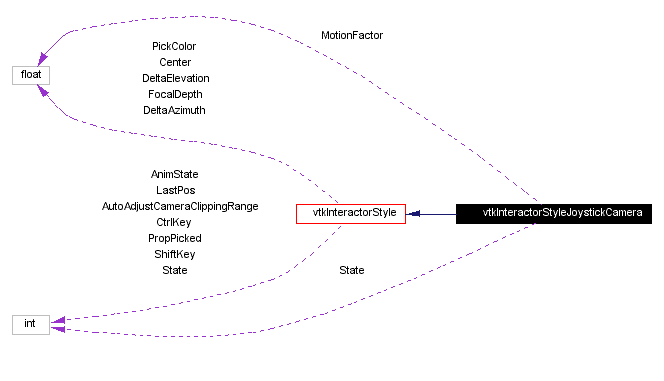

[legend]Collaboration diagram for vtkInteractorStyleJoystickCamera:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	OnMouseMove (int ctrl, int shift, int x, int y)
void	OnLeftButtonDown (int ctrl, int shift, int x, int y)
void	OnLeftButtonUp (int ctrl, int shift, int x, int y)
void	OnMiddleButtonDown (int ctrl, int shift, int x, int y)
void	OnMiddleButtonUp (int ctrl, int shift, int x, int y)
void	OnRightButtonDown (int ctrl, int shift, int x, int y)
void	OnRightButtonUp (int ctrl, int shift, int x, int y)
void	OnTimer (void)
Static Public Methods
vtkInteractorStyleJoystickCamera *	New ()
int	IsTypeOf (const char *type)
vtkInteractorStyleJoystickCamera *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkInteractorStyleJoystickCamera ()
	~vtkInteractorStyleJoystickCamera ()
Protected Attributes
int	State
float	MotionFactor

---

Detailed Description

interactive manipulation of the camera.

Date:

2001/10/11 13:38:12

Revision:

1.7

vtkInteractorStyleJoystickCamera allows the user to move (rotate, pan, etc.) the camera, the point of view for the scene. The position of the mouse relative to the center of the scene determines the speed at which the camera moves, and the speed of the mouse movement determines the acceleration of the camera, so the camera continues to move even if the mouse if not moving. For a 3-button mouse, the left button is for rotation, the right button for zooming, the middle button for panning, and ctrl + left button for spinning. (With fewer mouse buttons, ctrl + shift + left button is for zooming, and shift + left button is for panning.)

See also:

vtkInteractorStyleJoystickActor vtkInteractorStyleTrackballCamera vtkInteractorStyleTrackballActor

Events:

vtkCommand::RightButtonPressEvent vtkCommand::MiddleButtonPressEvent vtkCommand::LeftButtonPressEvent

Definition at line 78 of file vtkInteractorStyleJoystickCamera.h.

---

Constructor & Destructor Documentation

vtkInteractorStyleJoystickCamera::vtkInteractorStyleJoystickCamera (    )  [protected]

vtkInteractorStyleJoystickCamera::~vtkInteractorStyleJoystickCamera (    )  [protected]

---

Member Function Documentation

vtkInteractorStyleJoystickCamera* vtkInteractorStyleJoystickCamera::New (    )  [static]

This class must be supplied with a vtkRenderWindowInteractor wrapper or parent. This class should not normally be instantiated by application programmers. Reimplemented from vtkInteractorStyle.

virtual const char* vtkInteractorStyleJoystickCamera::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle.

int vtkInteractorStyleJoystickCamera::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle.

virtual int vtkInteractorStyleJoystickCamera::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle.

vtkInteractorStyleJoystickCamera* vtkInteractorStyleJoystickCamera::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::OnMouseMove (  int    ctrl, int    shift, int    x, int    y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::OnLeftButtonDown (  int    ctrl, int    shift, int    x, int    y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::OnLeftButtonUp (  int    ctrl, int    shift, int    x, int    y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::OnMiddleButtonDown (  int    ctrl, int    shift, int    x, int    y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::OnMiddleButtonUp (  int    ctrl, int    shift, int    x, int    y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::OnRightButtonDown (  int    ctrl, int    shift, int    x, int    y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::OnRightButtonUp (  int    ctrl, int    shift, int    x, int    y )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::OnTimer (  void    )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse. Reimplemented from vtkInteractorStyle.

---

Member Data Documentation

int vtkInteractorStyleJoystickCamera::State [protected]

Reimplemented from vtkInteractorStyle. Definition at line 102 of file vtkInteractorStyleJoystickCamera.h.

float vtkInteractorStyleJoystickCamera::MotionFactor [protected]

Definition at line 103 of file vtkInteractorStyleJoystickCamera.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkInteractorStyleJoystickCamera.h

---
