vtkInterpolatingSubdivisionFilter Class Reference

generate a subdivision surface using an Interpolating Scheme. More...

#include <vtkInterpolatingSubdivisionFilter.h>

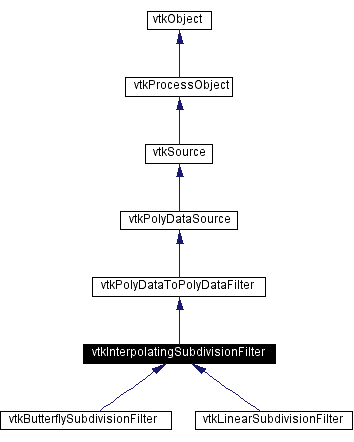

Inheritance diagram for vtkInterpolatingSubdivisionFilter:

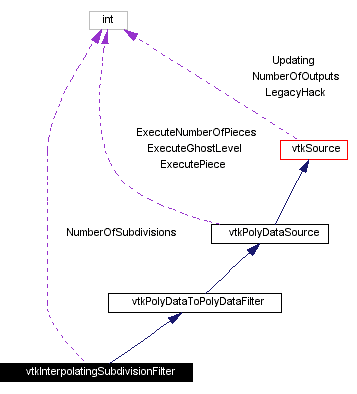

[legend]Collaboration diagram for vtkInterpolatingSubdivisionFilter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetNumberOfSubdivisions (int)
virtual int	GetNumberOfSubdivisions ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkInterpolatingSubdivisionFilter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkInterpolatingSubdivisionFilter ()
	~vtkInterpolatingSubdivisionFilter ()
void	Execute ()
virtual void	GenerateSubdivisionPoints (vtkPolyData *inputDS, vtkIntArray *edgeData, vtkPoints *outputPts, vtkPointData *outputPD)=0
void	GenerateSubdivisionCells (vtkPolyData *inputDS, vtkIntArray *edgeData, vtkCellArray *outputPolys, vtkCellData *outputCD)
int	FindEdge (vtkPolyData *mesh, vtkIdType cellId, vtkIdType p1, vtkIdType p2, vtkIntArray *edgeData, vtkIdList *cellIds)
vtkIdType	InterpolatePosition (vtkPoints *inputPts, vtkPoints *outputPts, vtkIdList *stencil, float *weights)
Protected Attributes
int	NumberOfSubdivisions

---

Detailed Description

generate a subdivision surface using an Interpolating Scheme.

Date:

2001/10/11 13:37:07

Revision:

1.12

Thanks:

This work was supported bt PHS Research Grant No. 1 P41 RR13218-01 from the National Center for Research Resources

vtkInterpolatingSubdivisionFilter is an abstract class that defines the protocol for interpolating subdivision surface filters.

Definition at line 62 of file vtkInterpolatingSubdivisionFilter.h.

---

Constructor & Destructor Documentation

vtkInterpolatingSubdivisionFilter::vtkInterpolatingSubdivisionFilter (    )  [protected]

vtkInterpolatingSubdivisionFilter::~vtkInterpolatingSubdivisionFilter (    )  [inline, protected]

Definition at line 76 of file vtkInterpolatingSubdivisionFilter.h.

---

Member Function Documentation

virtual const char* vtkInterpolatingSubdivisionFilter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter. Reimplemented in vtkButterflySubdivisionFilter, and vtkLinearSubdivisionFilter.

int vtkInterpolatingSubdivisionFilter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter. Reimplemented in vtkButterflySubdivisionFilter, and vtkLinearSubdivisionFilter.

virtual int vtkInterpolatingSubdivisionFilter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter. Reimplemented in vtkButterflySubdivisionFilter, and vtkLinearSubdivisionFilter.

vtkInterpolatingSubdivisionFilter* vtkInterpolatingSubdivisionFilter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataToPolyDataFilter. Reimplemented in vtkButterflySubdivisionFilter, and vtkLinearSubdivisionFilter.

void vtkInterpolatingSubdivisionFilter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual void vtkInterpolatingSubdivisionFilter::SetNumberOfSubdivisions (  int    )  [virtual]

Set/get the number of subdivisions.

virtual int vtkInterpolatingSubdivisionFilter::GetNumberOfSubdivisions (    )  [virtual]

Set/get the number of subdivisions.

void vtkInterpolatingSubdivisionFilter::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

virtual void vtkInterpolatingSubdivisionFilter::GenerateSubdivisionPoints (  vtkPolyData *    inputDS, vtkIntArray *    edgeData, vtkPoints *    outputPts, vtkPointData *    outputPD )  [protected, pure virtual]

Reimplemented in vtkLinearSubdivisionFilter.

void vtkInterpolatingSubdivisionFilter::GenerateSubdivisionCells (  vtkPolyData *    inputDS, vtkIntArray *    edgeData, vtkCellArray *    outputPolys, vtkCellData *    outputCD )  [protected]

int vtkInterpolatingSubdivisionFilter::FindEdge (  vtkPolyData *    mesh, vtkIdType    cellId, vtkIdType    p1, vtkIdType    p2, vtkIntArray *    edgeData, vtkIdList *    cellIds )  [protected]

vtkIdType vtkInterpolatingSubdivisionFilter::InterpolatePosition (  vtkPoints *    inputPts, vtkPoints *    outputPts, vtkIdList *    stencil, float *    weights )  [protected]

---

Member Data Documentation

int vtkInterpolatingSubdivisionFilter::NumberOfSubdivisions [protected]

Definition at line 85 of file vtkInterpolatingSubdivisionFilter.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkInterpolatingSubdivisionFilter.h

---
