vtkLandmarkTransform Class Reference

a linear transform specified by two corresponding point sets. More...

#include <vtkLandmarkTransform.h>

Inheritance diagram for vtkLandmarkTransform:

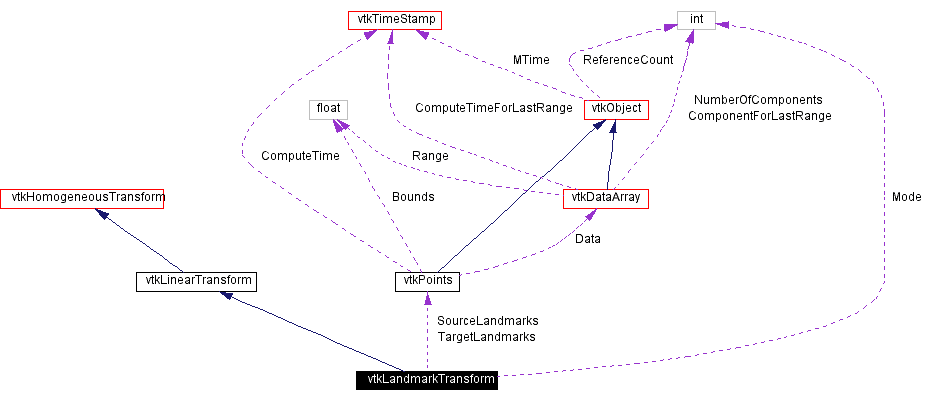

[legend]Collaboration diagram for vtkLandmarkTransform:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Inverse ()
unsigned long	GetMTime ()
vtkAbstractTransform *	MakeTransform ()
void	SetSourceLandmarks (vtkPoints *points)
void	SetTargetLandmarks (vtkPoints *points)
virtual vtkPoints *	GetSourceLandmarks ()
virtual vtkPoints *	GetTargetLandmarks ()
virtual void	SetMode (int)
void	SetModeToRigidBody ()
void	SetModeToSimilarity ()
void	SetModeToAffine ()
virtual int	GetMode ()
const char *	GetModeAsString ()
Static Public Methods
vtkLandmarkTransform *	New ()
int	IsTypeOf (const char *type)
vtkLandmarkTransform *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkLandmarkTransform ()
	~vtkLandmarkTransform ()
void	InternalUpdate ()
void	InternalDeepCopy (vtkAbstractTransform *transform)
Protected Attributes
vtkPoints *	SourceLandmarks
vtkPoints *	TargetLandmarks
int	Mode

---

Detailed Description

a linear transform specified by two corresponding point sets.

Date:

2001/10/11 13:37:25

Revision:

1.15

Thanks:

Thanks to Tim Hutton and David G. Gobbi who developed this class.

A vtkLandmarkTransform is defined by two sets of landmarks, the transform computed gives the best fit mapping one onto the other, in a least squares sense. The indices are taken to correspond, so point 1 in the first set will get mapped close to point 1 in the second set, etc. Call SetSourceLandmarks and SetTargetLandmarks to specify the two sets of landmarks, ensure they have the same number of points.

Warning:

Whenever you add, subtract, or set points you must call Modified() on the vtkPoints object, or the transformation might not update.

See also:

vtkLinearTransform

Definition at line 70 of file vtkLandmarkTransform.h.

---

Constructor & Destructor Documentation

vtkLandmarkTransform::vtkLandmarkTransform (    )  [protected]

vtkLandmarkTransform::~vtkLandmarkTransform (    )  [protected]

---

Member Function Documentation

vtkLandmarkTransform* vtkLandmarkTransform::New (    )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkLandmarkTransform::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkLinearTransform.

int vtkLandmarkTransform::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkLinearTransform.

virtual int vtkLandmarkTransform::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkLinearTransform.

vtkLandmarkTransform* vtkLandmarkTransform::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkLinearTransform.

void vtkLandmarkTransform::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkLinearTransform.

void vtkLandmarkTransform::SetSourceLandmarks (  vtkPoints *    points )

Specify the source and target landmark sets. The two sets must have the same number of points. If you add or change points in these objects, you must call Modified() on them or the transformation might not update.

void vtkLandmarkTransform::SetTargetLandmarks (  vtkPoints *    points )

Specify the source and target landmark sets. The two sets must have the same number of points. If you add or change points in these objects, you must call Modified() on them or the transformation might not update.

virtual vtkPoints* vtkLandmarkTransform::GetSourceLandmarks (    )  [virtual]

Specify the source and target landmark sets. The two sets must have the same number of points. If you add or change points in these objects, you must call Modified() on them or the transformation might not update.

virtual vtkPoints* vtkLandmarkTransform::GetTargetLandmarks (    )  [virtual]

Specify the source and target landmark sets. The two sets must have the same number of points. If you add or change points in these objects, you must call Modified() on them or the transformation might not update.

virtual void vtkLandmarkTransform::SetMode (  int    )  [virtual]

Set the number of degrees of freedom to constrain the solution to. Rigidbody: rotation and translation only. Similarity: rotation, translation and isotropic scaling. The default is similarity.

void vtkLandmarkTransform::SetModeToRigidBody (    )  [inline]

Set the number of degrees of freedom to constrain the solution to. Rigidbody: rotation and translation only. Similarity: rotation, translation and isotropic scaling. The default is similarity. Definition at line 94 of file vtkLandmarkTransform.h.

void vtkLandmarkTransform::SetModeToSimilarity (    )  [inline]

Set the number of degrees of freedom to constrain the solution to. Rigidbody: rotation and translation only. Similarity: rotation, translation and isotropic scaling. The default is similarity. Definition at line 95 of file vtkLandmarkTransform.h.

void vtkLandmarkTransform::SetModeToAffine (    )  [inline]

Set the number of degrees of freedom to constrain the solution to. Rigidbody: rotation and translation only. Similarity: rotation, translation and isotropic scaling. The default is similarity. Definition at line 96 of file vtkLandmarkTransform.h.

virtual int vtkLandmarkTransform::GetMode (    )  [virtual]

Set the number of degrees of freedom to constrain the solution to. Rigidbody: rotation and translation only. Similarity: rotation, translation and isotropic scaling. The default is similarity.

const char * vtkLandmarkTransform::GetModeAsString (    )  [inline]

Set the number of degrees of freedom to constrain the solution to. Rigidbody: rotation and translation only. Similarity: rotation, translation and isotropic scaling. The default is similarity. Definition at line 131 of file vtkLandmarkTransform.h.

void vtkLandmarkTransform::Inverse (    )  [virtual]

Invert the transformation. This is done by switching the source and target landmarks. Reimplemented from vtkAbstractTransform.

unsigned long vtkLandmarkTransform::GetMTime (    )  [virtual]

Get the MTime. Reimplemented from vtkAbstractTransform.

vtkAbstractTransform* vtkLandmarkTransform::MakeTransform (    )  [virtual]

Make another transform of the same type. Reimplemented from vtkAbstractTransform.

void vtkLandmarkTransform::InternalUpdate (    )  [protected, virtual]

Perform any subclass-specific Update. Reimplemented from vtkAbstractTransform.

void vtkLandmarkTransform::InternalDeepCopy (  vtkAbstractTransform *    transform )  [protected, virtual]

This method does no type checking, use DeepCopy instead. Reimplemented from vtkHomogeneousTransform.

---

Member Data Documentation

vtkPoints* vtkLandmarkTransform::SourceLandmarks [protected]

Definition at line 121 of file vtkLandmarkTransform.h.

vtkPoints* vtkLandmarkTransform::TargetLandmarks [protected]

Definition at line 122 of file vtkLandmarkTransform.h.

int vtkLandmarkTransform::Mode [protected]

Definition at line 124 of file vtkLandmarkTransform.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkLandmarkTransform.h

---
