vtkLookupTable Class Reference

map scalar values into colors via a lookup table. More...

#include <vtkLookupTable.h>

Inheritance diagram for vtkLookupTable:

Inheritance graph
[legend]

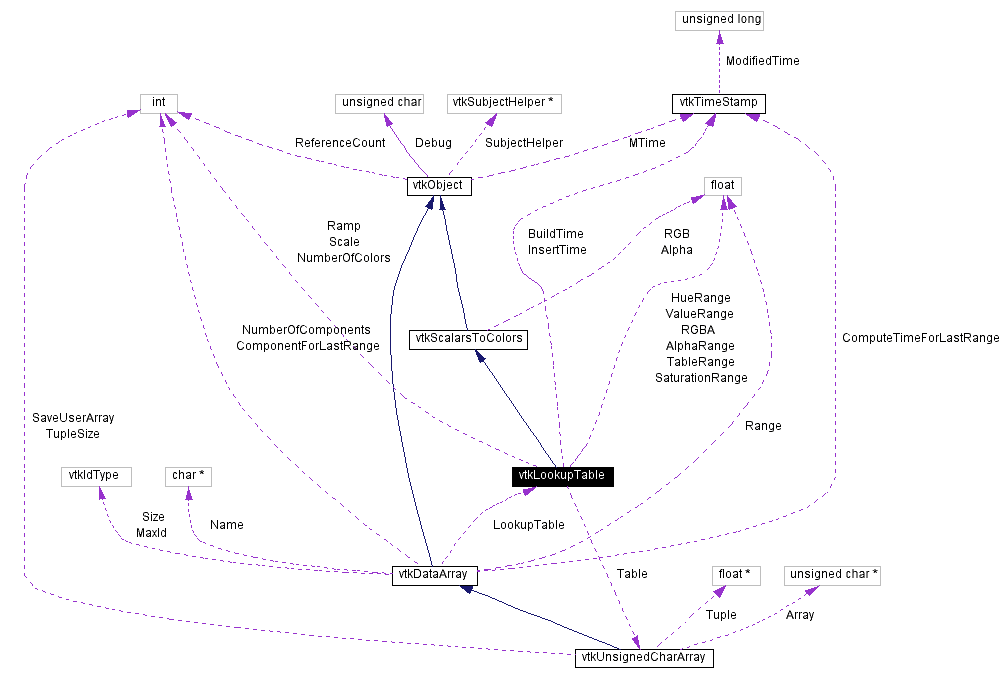

Collaboration diagram for vtkLookupTable:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int Allocate (int sz=256, int ext=256)
virtual void Build ()
unsigned char * MapValue (float v)
float GetOpacity (float v)
void SetTableValue (int indx, float rgba[4])
void SetTableValue (int indx, float r, float g, float b, float a=1.0)
float * GetTableValue (int id)
void GetTableValue (int id, float rgba[4])
unsigned char * WritePointer (const int id, const int number)
virtual void SetRamp (int)
void SetRampToLinear ()
void SetRampToSCurve ()
virtual int GetRamp ()
void SetScale (int scale)
void SetScaleToLinear ()
void SetScaleToLog10 ()
virtual int GetScale ()
void SetTableRange (float r[2])
virtual void SetTableRange (float min, float max)
virtual float * GetTableRange ()
virtual void GetTableRange (float data[2])
virtual void SetHueRange (float, float)
void SetHueRange (float[2])
virtual float * GetHueRange ()
virtual void GetHueRange (float &, float &)
virtual void GetHueRange (float[2])
virtual void SetSaturationRange (float, float)
void SetSaturationRange (float[2])
virtual float * GetSaturationRange ()
virtual void GetSaturationRange (float &, float &)
virtual void GetSaturationRange (float[2])
virtual void SetValueRange (float, float)
void SetValueRange (float[2])
virtual float * GetValueRange ()
virtual void GetValueRange (float &, float &)
virtual void GetValueRange (float[2])
virtual void SetAlphaRange (float, float)
void SetAlphaRange (float[2])
virtual float * GetAlphaRange ()
virtual void GetAlphaRange (float &, float &)
virtual void GetAlphaRange (float[2])
float * GetColor (float x)
void GetColor (float x, float rgb[3])
void SetNumberOfTableValues (int number)
int GetNumberOfTableValues ()
unsigned char * GetPointer (const int id)
float * GetRange ()
void SetRange (float min, float max)
void SetRange (float rng[2])
virtual void SetNumberOfColors (int)
virtual int GetNumberOfColors ()
void MapScalarsThroughTable2 (void *input, unsigned char *output, int inputDataType, int numberOfValues, int inputIncrement, int outputIncrement)

Static Public Methods

vtkLookupTable * New ()
int IsTypeOf (const char *type)
vtkLookupTable * SafeDownCast (vtkObject *o)

Protected Methods

 vtkLookupTable (int sze=256, int ext=256)
 ~vtkLookupTable ()

Protected Attributes

int NumberOfColors
vtkUnsignedCharArray * Table
float TableRange [2]
float HueRange [2]
float SaturationRange [2]
float ValueRange [2]
float AlphaRange [2]
int Scale
int Ramp
vtkTimeStamp InsertTime
vtkTimeStamp BuildTime
float RGBA [4]

Detailed Description

map scalar values into colors via a lookup table.

Date:
2001/11/13 14:09:26
Revision:
1.61

vtkLookupTable is an object that is used by mapper objects to map scalar values into rgba (red-green-blue-alpha transparency) color specification, or rgba into scalar values. The color table can be created by direct insertion of color values, or by specifying hue, saturation, value, and alpha range and generating a table.

See also:
vtkLogLookupTable vtkWindowLevelLookupTable
Examples:
vtkLookupTable (Examples)
Tests:
vtkLookupTable (Tests)

Definition at line 72 of file vtkLookupTable.h.

Constructor & Destructor Documentation

vtkLookupTable::vtkLookupTable (  int    sze = 256,
int    ext = 256
)  [protected]


vtkLookupTable::~vtkLookupTable (    )  [protected]


Member Function Documentation

vtkLookupTable* vtkLookupTable::New (    )  [static]


Construct with range=[0,1]; and hsv ranges set up for rainbow color table (from red to blue).

Reimplemented from vtkObject.

Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

virtual const char* vtkLookupTable::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkScalarsToColors.

Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

int vtkLookupTable::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkScalarsToColors.

Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

virtual int vtkLookupTable::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkScalarsToColors.

Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

vtkLookupTable* vtkLookupTable::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkScalarsToColors.

Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

void vtkLookupTable::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkScalarsToColors.

Reimplemented in vtkLogLookupTable, and vtkWindowLevelLookupTable.

int vtkLookupTable::Allocate (  int    sz = 256,
int    ext = 256
)


Allocate a color table of specified size.

virtual void vtkLookupTable::Build (    )  [virtual]


Generate lookup table from hue, saturation, value, alpha min/max values. Table is built from linear ramp of each value.

Reimplemented from vtkScalarsToColors.

Reimplemented in vtkWindowLevelLookupTable.

virtual void vtkLookupTable::SetRamp (  int    )  [virtual]


Set the shape of the table ramp to either linear or S-curve. The default is S-curve, which tails off gradually at either end. The equation used for the S-curve is y = (sin((x - 1/2)*pi) + 1)/2, while the equation for the linear ramp is simply y = x. For an S-curve greyscale ramp, you should set NumberOfTableValues to 402 (which is 256*pi/2) to provide room for the tails of the ramp.

void vtkLookupTable::SetRampToLinear (    )  [inline]


Set the shape of the table ramp to either linear or S-curve. The default is S-curve, which tails off gradually at either end. The equation used for the S-curve is y = (sin((x - 1/2)*pi) + 1)/2, while the equation for the linear ramp is simply y = x. For an S-curve greyscale ramp, you should set NumberOfTableValues to 402 (which is 256*pi/2) to provide room for the tails of the ramp.

Definition at line 97 of file vtkLookupTable.h.

void vtkLookupTable::SetRampToSCurve (    )  [inline]


Set the shape of the table ramp to either linear or S-curve. The default is S-curve, which tails off gradually at either end. The equation used for the S-curve is y = (sin((x - 1/2)*pi) + 1)/2, while the equation for the linear ramp is simply y = x. For an S-curve greyscale ramp, you should set NumberOfTableValues to 402 (which is 256*pi/2) to provide room for the tails of the ramp.

Definition at line 98 of file vtkLookupTable.h.

virtual int vtkLookupTable::GetRamp (    )  [virtual]


Set the shape of the table ramp to either linear or S-curve. The default is S-curve, which tails off gradually at either end. The equation used for the S-curve is y = (sin((x - 1/2)*pi) + 1)/2, while the equation for the linear ramp is simply y = x. For an S-curve greyscale ramp, you should set NumberOfTableValues to 402 (which is 256*pi/2) to provide room for the tails of the ramp.

void vtkLookupTable::SetScale (  int    scale )


Set the type of scale to use, linear or logarithmic. The default is linear. If the scale is logarithmic, then the TableRange must not cross the value zero.

void vtkLookupTable::SetScaleToLinear (    )  [inline]


Set the type of scale to use, linear or logarithmic. The default is linear. If the scale is logarithmic, then the TableRange must not cross the value zero.

Definition at line 107 of file vtkLookupTable.h.

void vtkLookupTable::SetScaleToLog10 (    )  [inline]


Set the type of scale to use, linear or logarithmic. The default is linear. If the scale is logarithmic, then the TableRange must not cross the value zero.

Definition at line 108 of file vtkLookupTable.h.

virtual int vtkLookupTable::GetScale (    )  [virtual]


Set the type of scale to use, linear or logarithmic. The default is linear. If the scale is logarithmic, then the TableRange must not cross the value zero.

void vtkLookupTable::SetTableRange (  float    r[2] )


Set/Get the minimum/maximum scalar values for scalar mapping. Scalar values less than minimum range value are clamped to minimum range value. Scalar values greater than maximum range value are clamped to maximum range value.

Referenced by vtkWindowLevelLookupTable::SetLevel(), and vtkWindowLevelLookupTable::SetWindow().

virtual void vtkLookupTable::SetTableRange (  float    min,
float    max
)  [virtual]


Set/Get the minimum/maximum scalar values for scalar mapping. Scalar values less than minimum range value are clamped to minimum range value. Scalar values greater than maximum range value are clamped to maximum range value.

virtual float* vtkLookupTable::GetTableRange (    )  [virtual]


Set/Get the minimum/maximum scalar values for scalar mapping. Scalar values less than minimum range value are clamped to minimum range value. Scalar values greater than maximum range value are clamped to maximum range value.

virtual void vtkLookupTable::GetTableRange (  float    data[2] )  [virtual]


Set/Get the minimum/maximum scalar values for scalar mapping. Scalar values less than minimum range value are clamped to minimum range value. Scalar values greater than maximum range value are clamped to maximum range value.

virtual void vtkLookupTable::SetHueRange (  float   ,
float
)  [virtual]


Set the range in hue (using automatic generation). Hue ranges between [0,1].

void vtkLookupTable::SetHueRange (  float   [2] )


Set the range in hue (using automatic generation). Hue ranges between [0,1].

virtual float* vtkLookupTable::GetHueRange (    )  [virtual]


Set the range in hue (using automatic generation). Hue ranges between [0,1].

virtual void vtkLookupTable::GetHueRange (  float &   ,
float &
)  [virtual]


Set the range in hue (using automatic generation). Hue ranges between [0,1].

virtual void vtkLookupTable::GetHueRange (  float   [2] )  [virtual]


Set the range in hue (using automatic generation). Hue ranges between [0,1].

virtual void vtkLookupTable::SetSaturationRange (  float   ,
float
)  [virtual]


Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

void vtkLookupTable::SetSaturationRange (  float   [2] )


Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

virtual float* vtkLookupTable::GetSaturationRange (    )  [virtual]


Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

virtual void vtkLookupTable::GetSaturationRange (  float &   ,
float &
)  [virtual]


Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

virtual void vtkLookupTable::GetSaturationRange (  float   [2] )  [virtual]


Set the range in saturation (using automatic generation). Saturation ranges between [0,1].

virtual void vtkLookupTable::SetValueRange (  float   ,
float
)  [virtual]


Set the range in value (using automatic generation). Value ranges between [0,1].

void vtkLookupTable::SetValueRange (  float   [2] )


Set the range in value (using automatic generation). Value ranges between [0,1].

virtual float* vtkLookupTable::GetValueRange (    )  [virtual]


Set the range in value (using automatic generation). Value ranges between [0,1].

virtual void vtkLookupTable::GetValueRange (  float &   ,
float &
)  [virtual]


Set the range in value (using automatic generation). Value ranges between [0,1].

virtual void vtkLookupTable::GetValueRange (  float   [2] )  [virtual]


Set the range in value (using automatic generation). Value ranges between [0,1].

virtual void vtkLookupTable::SetAlphaRange (  float   ,
float
)  [virtual]


Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

void vtkLookupTable::SetAlphaRange (  float   [2] )


Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

virtual float* vtkLookupTable::GetAlphaRange (    )  [virtual]


Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

virtual void vtkLookupTable::GetAlphaRange (  float &   ,
float &
)  [virtual]


Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

virtual void vtkLookupTable::GetAlphaRange (  float   [2] )  [virtual]


Set the range in alpha (using automatic generation). Alpha ranges from [0,1].

unsigned char* vtkLookupTable::MapValue (  float    v )  [virtual]


Map one value through the lookup table.

Reimplemented from vtkScalarsToColors.

float* vtkLookupTable::GetColor (  float    x )  [inline]


Map one value through the lookup table and return the color as an RGB array of floats between 0 and 1.

Reimplemented from vtkScalarsToColors.

Definition at line 156 of file vtkLookupTable.h.

void vtkLookupTable::GetColor (  float    x,
float    rgb[3]
)  [virtual]


Map one value through the lookup table and return the color as an RGB array of floats between 0 and 1.

Reimplemented from vtkScalarsToColors.

float vtkLookupTable::GetOpacity (  float    v )


Map one value through the lookup table and return the alpha value (the opacity) as a float between 0 and 1.

void vtkLookupTable::SetNumberOfTableValues (  int    number )


Specify the number of values (i.e., colors) in the lookup table.

int vtkLookupTable::GetNumberOfTableValues (    )  [inline]


Specify the number of values (i.e., colors) in the lookup table.

Definition at line 167 of file vtkLookupTable.h.

void vtkLookupTable::SetTableValue (  int    indx,
float    rgba[4]
)


Directly load color into lookup table. Use [0,1] float values for color component specification. Make sure that you've either used the Build() method or used SetNumberOfTableValues() prior to using this method.

void vtkLookupTable::SetTableValue (  int    indx,
float    r,
float    g,
float    b,
float    a = 1.0
)


Directly load color into lookup table. Use [0,1] float values for color component specification.

float* vtkLookupTable::GetTableValue (  int    id )


Return a rgba color value for the given index into the lookup table. Color components are expressed as [0,1] float values.

void vtkLookupTable::GetTableValue (  int    id,
float    rgba[4]
)


Return a rgba color value for the given index into the lookup table. Color components are expressed as [0,1] float values.

unsigned char* vtkLookupTable::GetPointer (  const int    id )  [inline]


Get pointer to color table data. Format is array of unsigned char r-g-b-a-r-g-b-a...

Definition at line 191 of file vtkLookupTable.h.

unsigned char * vtkLookupTable::WritePointer (  const int    id,
const int    number
)  [inline]


Get pointer to data. Useful for direct writes into object. MaxId is bumped by number (and memory allocated if necessary). Id is the location you wish to write into; number is the number of rgba values to write.

Definition at line 246 of file vtkLookupTable.h.

float* vtkLookupTable::GetRange (    )  [inline, virtual]


Sets/Gets the range of scalars which will be mapped. This is a duplicate of Get/SetTableRange.

Reimplemented from vtkScalarsToColors.

Definition at line 204 of file vtkLookupTable.h.

void vtkLookupTable::SetRange (  float    min,
float    max
)  [inline, virtual]


Sets/Gets the range of scalars which will be mapped. This is a duplicate of Get/SetTableRange.

Reimplemented from vtkScalarsToColors.

Definition at line 205 of file vtkLookupTable.h.

void vtkLookupTable::SetRange (  float    rng[2] )  [inline]


Sets/Gets the range of scalars which will be mapped. This is a duplicate of Get/SetTableRange.

Reimplemented from vtkScalarsToColors.

Definition at line 206 of file vtkLookupTable.h.

virtual void vtkLookupTable::SetNumberOfColors (  int    )  [virtual]


Set the number of colors in the lookup table. Use SetNumberOfTableValues() instead, it can be used both before and after the table has been built whereas SetNumberOfColors() has no effect after the table has been built.

virtual int vtkLookupTable::GetNumberOfColors (    )  [virtual]


Set the number of colors in the lookup table. Use SetNumberOfTableValues() instead, it can be used both before and after the table has been built whereas SetNumberOfColors() has no effect after the table has been built.

void vtkLookupTable::MapScalarsThroughTable2 (  void *    input,
unsigned char *    output,
int    inputDataType,
int    numberOfValues,
int    inputIncrement,
int    outputIncrement
)  [virtual]


map a set of scalars through the lookup table

Reimplemented from vtkScalarsToColors.

Member Data Documentation

int vtkLookupTable::NumberOfColors [protected]


Definition at line 229 of file vtkLookupTable.h.

vtkUnsignedCharArray* vtkLookupTable::Table [protected]


Definition at line 230 of file vtkLookupTable.h.

float vtkLookupTable::TableRange[2] [protected]


Definition at line 231 of file vtkLookupTable.h.

float vtkLookupTable::HueRange[2] [protected]


Definition at line 232 of file vtkLookupTable.h.

float vtkLookupTable::SaturationRange[2] [protected]


Definition at line 233 of file vtkLookupTable.h.

float vtkLookupTable::ValueRange[2] [protected]


Definition at line 234 of file vtkLookupTable.h.

float vtkLookupTable::AlphaRange[2] [protected]


Definition at line 235 of file vtkLookupTable.h.

int vtkLookupTable::Scale [protected]


Definition at line 236 of file vtkLookupTable.h.

int vtkLookupTable::Ramp [protected]


Definition at line 237 of file vtkLookupTable.h.

vtkTimeStamp vtkLookupTable::InsertTime [protected]


Definition at line 238 of file vtkLookupTable.h.

vtkTimeStamp vtkLookupTable::BuildTime [protected]


Definition at line 239 of file vtkLookupTable.h.

float vtkLookupTable::RGBA[4] [protected]


Definition at line 240 of file vtkLookupTable.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:34:57 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
