vtkWindowLevelLookupTable Class Reference

map scalar values into colors or colors to scalars; generate color table. More...

#include <vtkWindowLevelLookupTable.h>

Inheritance diagram for vtkWindowLevelLookupTable:

Inheritance graph
[legend]

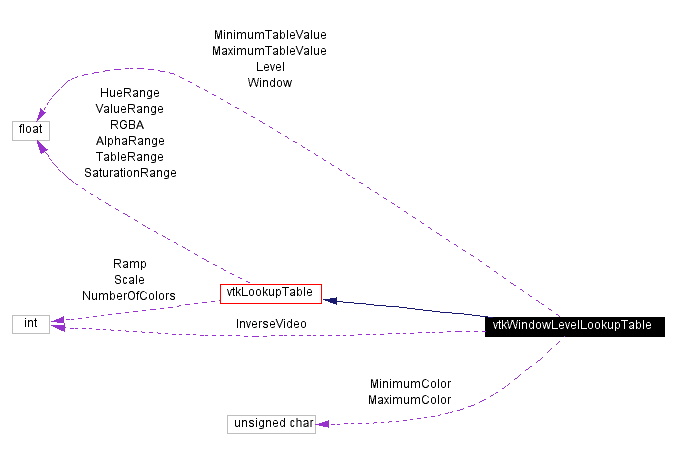

Collaboration diagram for vtkWindowLevelLookupTable:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Build ()
void SetWindow (float window)
virtual float GetWindow ()
void SetLevel (float level)
virtual float GetLevel ()
void SetInverseVideo (int iv)
virtual int GetInverseVideo ()
virtual void InverseVideoOn ()
virtual void InverseVideoOff ()
virtual void SetMinimumTableValue (float, float, float, float)
virtual void SetMinimumTableValue (float[4])
virtual float * GetMinimumTableValue ()
virtual void GetMinimumTableValue (float &, float &, float &, float &)
virtual void GetMinimumTableValue (float[4])
virtual void SetMaximumTableValue (float, float, float, float)
virtual void SetMaximumTableValue (float[4])
virtual float * GetMaximumTableValue ()
virtual void GetMaximumTableValue (float &, float &, float &, float &)
virtual void GetMaximumTableValue (float[4])
void SetMinimumColor (int r, int g, int b, int a)
void SetMinimumColor (const unsigned char rgba[4])
void GetMinimumColor (unsigned char rgba[4])
unsigned char * GetMinimumColor ()
void SetMaximumColor (int r, int g, int b, int a)
void SetMaximumColor (const unsigned char rgba[4])
void GetMaximumColor (unsigned char rgba[4])
unsigned char * GetMaximumColor ()

Static Public Methods

vtkWindowLevelLookupTable * New ()
int IsTypeOf (const char *type)
vtkWindowLevelLookupTable * SafeDownCast (vtkObject *o)

Protected Methods

 vtkWindowLevelLookupTable (int sze=256, int ext=256)
 ~vtkWindowLevelLookupTable ()

Protected Attributes

float Window
float Level
int InverseVideo
float MaximumTableValue [4]
float MinimumTableValue [4]
unsigned char MinimumColor [4]
unsigned char MaximumColor [4]

Detailed Description

map scalar values into colors or colors to scalars; generate color table.

D% V%

vtkWindowLevelLookupTable is an object that is used by mapper objects to map scalar values into rgba (red-green-blue-alpha transparency) color specification, or rgba into scalar values. The color table can be created by direct insertion of color values, or by specifying a window and level. Window / Level is used in medical imaging to specify a linear greyscale ramp. The Level is the center of the ramp. The Window is the width of the ramp.

Warning:
vtkWindowLevelLookupTable is a reference counted object. Therefore, you should always use operator "new" to construct new objects. This procedure will avoid memory problems (see text).
See also:
vtkLogLookupTable

Definition at line 68 of file vtkWindowLevelLookupTable.h.

Constructor & Destructor Documentation

vtkWindowLevelLookupTable::vtkWindowLevelLookupTable (  int    sze = 256,
int    ext = 256
)  [protected]


vtkWindowLevelLookupTable::~vtkWindowLevelLookupTable (    )  [inline, protected]


Definition at line 160 of file vtkWindowLevelLookupTable.h.

Member Function Documentation

vtkWindowLevelLookupTable* vtkWindowLevelLookupTable::New (    )  [static]


Construct with range=[0,1]; and hsv ranges set up for rainbow color table (from red to blue).

Reimplemented from vtkLookupTable.

virtual const char* vtkWindowLevelLookupTable::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLookupTable.

int vtkWindowLevelLookupTable::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLookupTable.

virtual int vtkWindowLevelLookupTable::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLookupTable.

vtkWindowLevelLookupTable* vtkWindowLevelLookupTable::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLookupTable.

void vtkWindowLevelLookupTable::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkLookupTable.

void vtkWindowLevelLookupTable::Build (    )  [virtual]


Generate lookup table as a linear ramp between MinimumTableValue and MaximumTableValue.

Reimplemented from vtkLookupTable.

void vtkWindowLevelLookupTable::SetWindow (  float    window )  [inline]


Set the window for the lookup table. The window is the difference between TableRange[0] and TableRange[1].

Definition at line 82 of file vtkWindowLevelLookupTable.h.

virtual float vtkWindowLevelLookupTable::GetWindow (    )  [virtual]


Set the window for the lookup table. The window is the difference between TableRange[0] and TableRange[1].

void vtkWindowLevelLookupTable::SetLevel (  float    level )  [inline]


Set the Level for the lookup table. The level is the average of TableRange[0] and TableRange[1].

Definition at line 93 of file vtkWindowLevelLookupTable.h.

virtual float vtkWindowLevelLookupTable::GetLevel (    )  [virtual]


Set the Level for the lookup table. The level is the average of TableRange[0] and TableRange[1].

void vtkWindowLevelLookupTable::SetInverseVideo (  int    iv )


Set inverse video on or off. You can achieve the same effect by switching the MinimumTableValue and the MaximumTableValue.

virtual int vtkWindowLevelLookupTable::GetInverseVideo (    )  [virtual]


Set inverse video on or off. You can achieve the same effect by switching the MinimumTableValue and the MaximumTableValue.

virtual void vtkWindowLevelLookupTable::InverseVideoOn (    )  [virtual]


Set inverse video on or off. You can achieve the same effect by switching the MinimumTableValue and the MaximumTableValue.

virtual void vtkWindowLevelLookupTable::InverseVideoOff (    )  [virtual]


Set inverse video on or off. You can achieve the same effect by switching the MinimumTableValue and the MaximumTableValue.

virtual void vtkWindowLevelLookupTable::SetMinimumTableValue (  float   ,
float   ,
float   ,
float
)  [virtual]


Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::SetMinimumTableValue (  float   [4] )  [virtual]


Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual float* vtkWindowLevelLookupTable::GetMinimumTableValue (    )  [virtual]


Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::GetMinimumTableValue (  float &   ,
float &   ,
float &   ,
float &
)  [virtual]


Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::GetMinimumTableValue (  float   [4] )  [virtual]


Set the minimum table value. All lookup table entries below the start of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::SetMaximumTableValue (  float   ,
float   ,
float   ,
float
)  [virtual]


Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::SetMaximumTableValue (  float   [4] )  [virtual]


Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual float* vtkWindowLevelLookupTable::GetMaximumTableValue (    )  [virtual]


Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::GetMaximumTableValue (  float &   ,
float &   ,
float &   ,
float &
)  [virtual]


Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

virtual void vtkWindowLevelLookupTable::GetMaximumTableValue (  float   [4] )  [virtual]


Set the maximum table value. All lookup table entries above the end of the ramp will be set to this color. After you change this value, you must re-build the lookup table.

void vtkWindowLevelLookupTable::SetMinimumColor (  int    r,
int    g,
int    b,
int    a
)  [inline]


For backwards compatibility: specify the color using integers in the range [0,255]. Deprecated: use SetMinimumTableValue() instead.

Definition at line 127 of file vtkWindowLevelLookupTable.h.

void vtkWindowLevelLookupTable::SetMinimumColor (  const unsigned char    rgba[4] )  [inline]


For backwards compatibility: specify the color using integers in the range [0,255]. Deprecated: use SetMinimumTableValue() instead.

Definition at line 129 of file vtkWindowLevelLookupTable.h.

void vtkWindowLevelLookupTable::GetMinimumColor (  unsigned char    rgba[4] )  [inline]


For backwards compatibility: specify the color using integers in the range [0,255]. Deprecated: use SetMinimumTableValue() instead.

Definition at line 131 of file vtkWindowLevelLookupTable.h.

unsigned char* vtkWindowLevelLookupTable::GetMinimumColor (    )  [inline]


For backwards compatibility: specify the color using integers in the range [0,255]. Deprecated: use SetMinimumTableValue() instead.

Definition at line 136 of file vtkWindowLevelLookupTable.h.

void vtkWindowLevelLookupTable::SetMaximumColor (  int    r,
int    g,
int    b,
int    a
)  [inline]


For backwards compatibility: specify the color using integers in the range [0,255]. Deprecated: use SetMaximumTableValue() instead.

Definition at line 144 of file vtkWindowLevelLookupTable.h.

void vtkWindowLevelLookupTable::SetMaximumColor (  const unsigned char    rgba[4] )  [inline]


For backwards compatibility: specify the color using integers in the range [0,255]. Deprecated: use SetMaximumTableValue() instead.

Definition at line 146 of file vtkWindowLevelLookupTable.h.

void vtkWindowLevelLookupTable::GetMaximumColor (  unsigned char    rgba[4] )  [inline]


For backwards compatibility: specify the color using integers in the range [0,255]. Deprecated: use SetMaximumTableValue() instead.

Definition at line 148 of file vtkWindowLevelLookupTable.h.

unsigned char* vtkWindowLevelLookupTable::GetMaximumColor (    )  [inline]


For backwards compatibility: specify the color using integers in the range [0,255]. Deprecated: use SetMaximumTableValue() instead.

Definition at line 153 of file vtkWindowLevelLookupTable.h.

Member Data Documentation

float vtkWindowLevelLookupTable::Window [protected]


Definition at line 162 of file vtkWindowLevelLookupTable.h.

float vtkWindowLevelLookupTable::Level [protected]


Definition at line 163 of file vtkWindowLevelLookupTable.h.

int vtkWindowLevelLookupTable::InverseVideo [protected]


Definition at line 164 of file vtkWindowLevelLookupTable.h.

float vtkWindowLevelLookupTable::MaximumTableValue[4] [protected]


Definition at line 165 of file vtkWindowLevelLookupTable.h.

float vtkWindowLevelLookupTable::MinimumTableValue[4] [protected]


Definition at line 166 of file vtkWindowLevelLookupTable.h.

unsigned char vtkWindowLevelLookupTable::MinimumColor[4] [protected]


Definition at line 167 of file vtkWindowLevelLookupTable.h.

unsigned char vtkWindowLevelLookupTable::MaximumColor[4] [protected]


Definition at line 168 of file vtkWindowLevelLookupTable.h.

The documentation for this class was generated from the following file:
