vtkMesaImageWindow Class Reference

Mesa Imageing window. More...

#include <vtkMesaImageWindow.h>

Inheritance diagram for vtkMesaImageWindow:

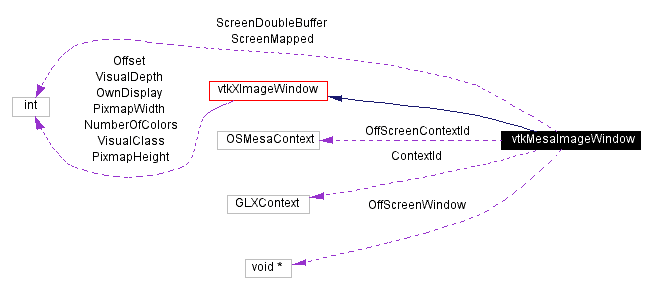

[legend]Collaboration diagram for vtkMesaImageWindow:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	MakeDefaultWindow ()
void	SwapBuffers ()
void	Frame ()
void	Render ()
void	MakeCurrent ()
virtual void	EraseWindow ()
virtual void	SetOffScreenRendering (int i)

virtual void *	GetGenericDisplayId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual void *	GetGenericContext ()
virtual void *	GetGenericDrawable ()

virtual Colormap	GetDesiredColormap ()
virtual Visual *	GetDesiredVisual ()
XVisualInfo *	GetDesiredVisualInfo ()
virtual int	GetDesiredDepth ()

virtual unsigned char *	GetPixelData (int x, int y, int x2, int y2, int front)
virtual void	SetPixelData (int x, int y, int x2, int y2, unsigned char *, int front)

virtual float *	GetRGBAPixelData (int x, int y, int x2, int y2, int front)
virtual void	SetRGBAPixelData (int x, int y, int x2, int y2, float *, int front, int blend=0)
Static Public Methods
vtkMesaImageWindow *	New ()
int	IsTypeOf (const char *type)
vtkMesaImageWindow *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkMesaImageWindow ()
	~vtkMesaImageWindow ()
Protected Attributes
GLXContext	ContextId
OSMesaContext	OffScreenContextId
void *	OffScreenWindow
int	ScreenDoubleBuffer
int	ScreenMapped

Detailed Description

Mesa Imageing window.

Date:: 2001/11/13 14:17:23

Revision:: 1.17

vtkMesaImageWindow is a concrete implementation of the abstract class vtkImageWindow. vtkMesaImageer interfaces to the standard Mesa graphics library in the Windows/NT environment..

Definition at line 67 of file vtkMesaImageWindow.h.

Constructor & Destructor Documentation

vtkMesaImageWindow::vtkMesaImageWindow ( ) [protected]

vtkMesaImageWindow::~vtkMesaImageWindow ( ) [protected]

Member Function Documentation

vtkMesaImageWindow* vtkMesaImageWindow::New ( ) [static]

Creates a vtkImageWindow with background erasing disabled and gray scale hint off
Reimplemented from vtkXImageWindow.

virtual const char* vtkMesaImageWindow::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkXImageWindow.

int vtkMesaImageWindow::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkXImageWindow.

virtual int vtkMesaImageWindow::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkXImageWindow.

vtkMesaImageWindow* vtkMesaImageWindow::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkXImageWindow.

void vtkMesaImageWindow::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkXImageWindow.

virtual void vtkMesaImageWindow::MakeDefaultWindow ( ) [virtual]

Initialize the window for rendering.
Reimplemented from vtkXImageWindow.

void vtkMesaImageWindow::SwapBuffers ( ) [virtual]

Swap the front and back buffers if double buffering is being used.
Reimplemented from vtkXImageWindow.

void vtkMesaImageWindow::Frame ( ) [virtual]

Flush the buffer and swap if necessary.
Reimplemented from vtkXImageWindow.

void vtkMesaImageWindow::Render ( void ) [virtual]

Draw the contents of the window
Reimplemented from vtkImageWindow.

virtual void* vtkMesaImageWindow::GetGenericDisplayId ( ) [inline, virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.
Definition at line 88 of file vtkMesaImageWindow.h.

virtual void* vtkMesaImageWindow::GetGenericWindowId ( ) [virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.

virtual void* vtkMesaImageWindow::GetGenericParentId ( ) [inline, virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.
Definition at line 90 of file vtkMesaImageWindow.h.

virtual void* vtkMesaImageWindow::GetGenericContext ( ) [virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.

virtual void* vtkMesaImageWindow::GetGenericDrawable ( ) [inline, virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.
Definition at line 92 of file vtkMesaImageWindow.h.

virtual Colormap vtkMesaImageWindow::GetDesiredColormap ( ) [virtual]

Get the X properties of an ideal rendering window.
Reimplemented from vtkXImageWindow.

virtual Visual* vtkMesaImageWindow::GetDesiredVisual ( ) [virtual]

Get the X properties of an ideal rendering window.
Reimplemented from vtkXImageWindow.

XVisualInfo* vtkMesaImageWindow::GetDesiredVisualInfo ( )

Get the X properties of an ideal rendering window.

virtual int vtkMesaImageWindow::GetDesiredDepth ( ) [virtual]

Get the X properties of an ideal rendering window.
Reimplemented from vtkXImageWindow.

virtual unsigned char* vtkMesaImageWindow::GetPixelData ( int x,

int y,

int x2,

int y2,

int front

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...
Reimplemented from vtkXImageWindow.

virtual void vtkMesaImageWindow::SetPixelData ( int x,

int y,

int x2,

int y2,

unsigned char * ,

int front

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

virtual float* vtkMesaImageWindow::GetRGBAPixelData ( int x,

int y,

int x2,

int y2,

int front

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

virtual void vtkMesaImageWindow::SetRGBAPixelData ( int x,

int y,

int x2,

int y2,

float * ,

int front,

int blend = 0

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

void vtkMesaImageWindow::MakeCurrent ( ) [virtual]

Make this windows Mesa context the current context.
Reimplemented from vtkImageWindow.

virtual void vtkMesaImageWindow::EraseWindow ( ) [inline, virtual]

Erase the window contents
Reimplemented from vtkXImageWindow.
Definition at line 121 of file vtkMesaImageWindow.h.

virtual void vtkMesaImageWindow::SetOffScreenRendering ( int i ) [virtual]

Override the default implementation so that we can actively switch between on and offscreen rendering.
Reimplemented from vtkWindow.

Member Data Documentation

GLXContext vtkMesaImageWindow::ContextId [protected]

Definition at line 131 of file vtkMesaImageWindow.h.

OSMesaContext vtkMesaImageWindow::OffScreenContextId [protected]

Definition at line 132 of file vtkMesaImageWindow.h.

void* vtkMesaImageWindow::OffScreenWindow [protected]

Definition at line 133 of file vtkMesaImageWindow.h.

int vtkMesaImageWindow::ScreenDoubleBuffer [protected]

Definition at line 134 of file vtkMesaImageWindow.h.

int vtkMesaImageWindow::ScreenMapped [protected]

Definition at line 135 of file vtkMesaImageWindow.h.

The documentation for this class was generated from the following file:

Rendering/vtkMesaImageWindow.h
