vtkImageWindow Class Reference

a 2D display window. More...

#include <vtkImageWindow.h>

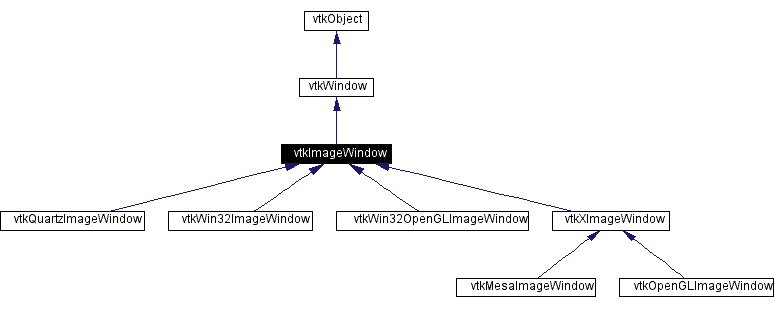

Inheritance diagram for vtkImageWindow:

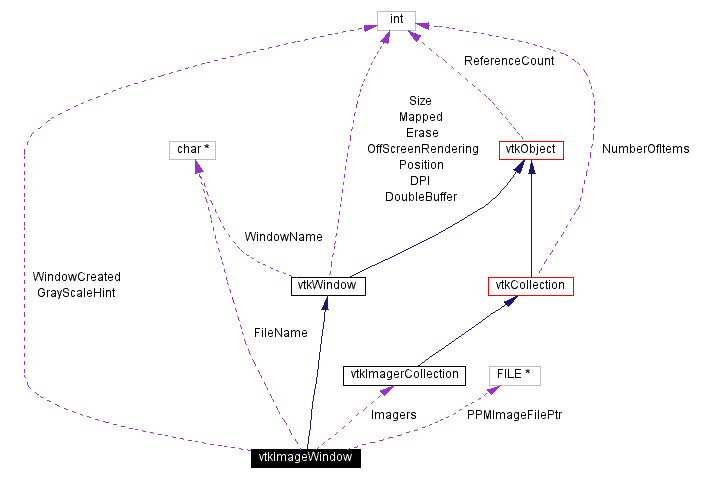

[legend]Collaboration diagram for vtkImageWindow:

[legend]List of all members.

Public Methods
void	PrintSelf (ostream &os, vtkIndent indent)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	SwapBuffers ()=0
virtual void	Frame ()=0
void	AddImager (vtkImager *im)
vtkImagerCollection *	GetImagers ()
void	RemoveImager (vtkImager *im)
virtual void	Render ()
virtual void	EraseWindow ()
virtual void	SaveImageAsPPM ()
virtual void	MakeCurrent ()
virtual void	SetPosition (int x, int y)=0
virtual void	SetPosition (int a[2])
virtual int *	GetPosition ()=0
virtual void	GetPosition (int *x, int *y)
virtual void	SetSize (int, int)=0
virtual void	SetSize (int a[2])
virtual int *	GetSize ()=0
virtual void	GetSize (int *x, int *y)
virtual void	SetDisplayId (void *)=0
virtual void	SetWindowId (void *)=0
virtual void	SetParentId (void *)=0
virtual void *	GetGenericDisplayId ()=0
virtual void *	GetGenericWindowId ()=0
virtual void *	GetGenericParentId ()=0
virtual void *	GetGenericContext ()=0
virtual void *	GetGenericDrawable ()
virtual void	SetWindowInfo (char *)
virtual void	SetParentInfo (char *)
virtual void	SetGrayScaleHint (int)
virtual int	GetGrayScaleHint ()
virtual void	GrayScaleHintOn ()
virtual void	GrayScaleHintOff ()
virtual int	OpenPPMImageFile ()
virtual void	WritePPMImageFile ()
virtual void	ClosePPMImageFile ()
virtual void	SetFileName (const char *)
virtual char *	GetFileName ()
Static Public Methods
vtkImageWindow *	New ()
int	IsTypeOf (const char *type)
vtkImageWindow *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageWindow ()
	~vtkImageWindow ()
virtual void	MakeDefaultWindow ()=0
Protected Attributes
vtkImagerCollection *	Imagers
int	WindowCreated
int	GrayScaleHint
char *	FileName
FILE *	PPMImageFilePtr

---

Detailed Description

a 2D display window.

Date:

2001/10/11 13:38:10

Revision:

1.28

Thanks:

Thanks to Matt Turek who developed this class.

vtkImageWindow contains 2D rendering in vtk. Typically a vtkImageWindow has some vtkImagers within it. The imagers in turn display images, Text etc. The concept is very similar to that of a RenderWindow for 3d.

See also:

vtkImager vtkWindow vtkRenderWindow

Tests:

vtkImageWindow (Tests)

Definition at line 69 of file vtkImageWindow.h.

---

Constructor & Destructor Documentation

vtkImageWindow::vtkImageWindow (    )  [protected]

vtkImageWindow::~vtkImageWindow (    )  [protected]

---

Member Function Documentation

vtkImageWindow* vtkImageWindow::New (    )  [static]

Creates a vtkImageWindow with background erasing disabled and gray scale hint off Reimplemented from vtkObject. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

void vtkImageWindow::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual const char* vtkImageWindow::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

int vtkImageWindow::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual int vtkImageWindow::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

vtkImageWindow* vtkImageWindow::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void vtkImageWindow::SetPosition (  int    x, int    y )  [pure virtual]

Set the position of the window on the screen Reimplemented from vtkWindow. Reimplemented in vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow. Referenced by vtkXImageWindow::SetPosition(), and vtkWin32OpenGLImageWindow::SetPosition().

virtual void vtkImageWindow::SetPosition (  int    a[2] )  [inline, virtual]

Set the position of the window on the screen Reimplemented from vtkWindow. Reimplemented in vtkWin32OpenGLImageWindow, and vtkXImageWindow. Definition at line 82 of file vtkImageWindow.h.

virtual int* vtkImageWindow::GetPosition (    )  [pure virtual]

Get the position of the window on the screen Reimplemented from vtkWindow. Reimplemented in vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow. Referenced by vtkXImageWindow::GetPosition(), and vtkWin32OpenGLImageWindow::GetPosition().

virtual void vtkImageWindow::GetPosition (  int *    x, int *    y )  [virtual]

Get the position of the window on the screen Reimplemented in vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void vtkImageWindow::SetSize (  int    x, int    y )  [pure virtual]

Sets the size of a window in pixels. Reimplemented from vtkWindow. Reimplemented in vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow. Referenced by vtkXImageWindow::SetSize(), and vtkWin32OpenGLImageWindow::SetSize().

virtual void vtkImageWindow::SetSize (  int    a[2] )  [inline, virtual]

Sets the size of a window in pixels. Reimplemented from vtkWindow. Reimplemented in vtkWin32OpenGLImageWindow, and vtkXImageWindow. Definition at line 94 of file vtkImageWindow.h.

virtual int* vtkImageWindow::GetSize (    )  [pure virtual]

Returns the size of a window in pixels Reimplemented from vtkWindow. Reimplemented in vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow. Referenced by vtkXImageWindow::GetSize(), and vtkWin32OpenGLImageWindow::GetSize().

virtual void vtkImageWindow::GetSize (  int *    x, int *    y )  [virtual]

Returns the size of a window in pixels Reimplemented in vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void vtkImageWindow::SetDisplayId (  void *    foo )  [pure virtual]

These are here for using a tk window. Reimplemented from vtkWindow. Reimplemented in vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void vtkImageWindow::SetWindowId (  void *    foo )  [pure virtual]

These are here for using a tk window. Reimplemented from vtkWindow. Reimplemented in vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow. Referenced by vtkWin32OpenGLImageWindow::SetWindowId().

virtual void vtkImageWindow::SetParentId (  void *    foo )  [pure virtual]

These are here for using a tk window. Reimplemented from vtkWindow. Reimplemented in vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow. Referenced by vtkWin32OpenGLImageWindow::SetParentId().

virtual void* vtkImageWindow::GetGenericDisplayId (    )  [pure virtual]

These are here for using a tk window. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void* vtkImageWindow::GetGenericWindowId (    )  [pure virtual]

These are here for using a tk window. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void* vtkImageWindow::GetGenericParentId (    )  [pure virtual]

These are here for using a tk window. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void* vtkImageWindow::GetGenericContext (    )  [pure virtual]

These are here for using a tk window. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void* vtkImageWindow::GetGenericDrawable (    )  [inline, virtual]

These are here for using a tk window. Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, and vtkXImageWindow. Definition at line 112 of file vtkImageWindow.h.

virtual void vtkImageWindow::SwapBuffers (    )  [pure virtual]

Swap the front and back buffers. This function is used to implement double buffering. The user shouldn't need to call this function. To enable double buffering, invoke DoubleBufferOn Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void vtkImageWindow::Frame (    )  [pure virtual]

Flush the buffer and swap if necessary. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

virtual void vtkImageWindow::SetWindowInfo (  char *    info )  [inline, virtual]

useful for scripting languages Reimplemented from vtkWindow. Reimplemented in vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow. Definition at line 125 of file vtkImageWindow.h.

virtual void vtkImageWindow::SetParentInfo (  char *    info )  [inline, virtual]

useful for scripting languages Reimplemented from vtkWindow. Reimplemented in vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow. Definition at line 127 of file vtkImageWindow.h.

virtual void vtkImageWindow::SetGrayScaleHint (  int    )  [virtual]

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

virtual int vtkImageWindow::GetGrayScaleHint (    )  [virtual]

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

virtual void vtkImageWindow::GrayScaleHintOn (    )  [virtual]

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

virtual void vtkImageWindow::GrayScaleHintOff (    )  [virtual]

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

void vtkImageWindow::AddImager (  vtkImager *    im )

Add an imager to the window's list of imagers to be rendered.

vtkImagerCollection* vtkImageWindow::GetImagers (    )  [inline]

Return the collection of imagers for this window. Definition at line 143 of file vtkImageWindow.h.

void vtkImageWindow::RemoveImager (  vtkImager *    im )

Remove an imager from the window

virtual void vtkImageWindow::Render (  void    )  [virtual]

Draw the contents of the window Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, and vtkWin32OpenGLImageWindow.

virtual void vtkImageWindow::EraseWindow (    )  [virtual]

Erase the window contents Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkWin32ImageWindow, and vtkXImageWindow. Referenced by vtkOpenGLImageWindow::EraseWindow(), and vtkMesaImageWindow::EraseWindow().

virtual void vtkImageWindow::SaveImageAsPPM (    )  [virtual]

Save the current image as a PPM file.

virtual int vtkImageWindow::OpenPPMImageFile (    )  [virtual]

Open/Write/Close a PPM file

virtual void vtkImageWindow::WritePPMImageFile (    )  [virtual]

Open/Write/Close a PPM file

virtual void vtkImageWindow::ClosePPMImageFile (    )  [virtual]

Open/Write/Close a PPM file

virtual void vtkImageWindow::SetFileName (  const char *    )  [virtual]

Set/Get the FileName used for saving images. See the SaveImageAsPPM method.

virtual char* vtkImageWindow::GetFileName (    )  [virtual]

Set/Get the FileName used for saving images. See the SaveImageAsPPM method.

virtual void vtkImageWindow::MakeCurrent (    )  [inline, virtual]

Make this window current. Overridden in subclasses to do, for example, glXMakeCurrent or wglMakeCurrent Reimplemented from vtkWindow. Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, and vtkWin32OpenGLImageWindow. Definition at line 173 of file vtkImageWindow.h.

virtual void vtkImageWindow::MakeDefaultWindow (    )  [protected, pure virtual]

Reimplemented in vtkMesaImageWindow, vtkOpenGLImageWindow, vtkQuartzImageWindow, vtkWin32ImageWindow, vtkWin32OpenGLImageWindow, and vtkXImageWindow.

---

Member Data Documentation

vtkImagerCollection* vtkImageWindow::Imagers [protected]

Definition at line 179 of file vtkImageWindow.h.

int vtkImageWindow::WindowCreated [protected]

Definition at line 180 of file vtkImageWindow.h.

int vtkImageWindow::GrayScaleHint [protected]

Definition at line 181 of file vtkImageWindow.h.

char* vtkImageWindow::FileName [protected]

Definition at line 183 of file vtkImageWindow.h.

FILE* vtkImageWindow::PPMImageFilePtr [protected]

Definition at line 184 of file vtkImageWindow.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkImageWindow.h

---
