vtkMesaLight Class Reference

Mesa light. More...

#include <vtkMesaLight.h>

Inheritance diagram for vtkMesaLight:

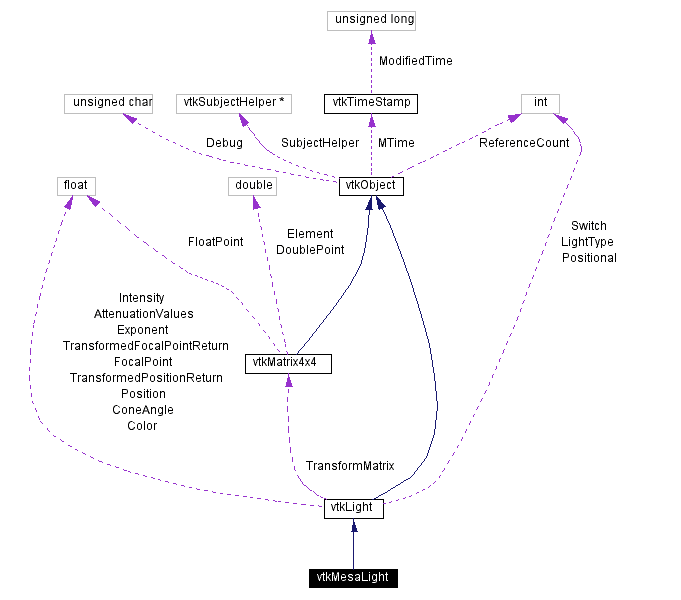

[legend]Collaboration diagram for vtkMesaLight:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	Render (vtkRenderer *ren, int light_index)
Static Public Methods
vtkMesaLight *	New ()
int	IsTypeOf (const char *type)
vtkMesaLight *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkMesaLight ()
	~vtkMesaLight ()

---

Detailed Description

Mesa light.

Date:

2001/10/11 13:38:15

Revision:

1.9

vtkMesaLight is a concrete implementation of the abstract class vtkLight. vtkMesaLight interfaces to the Mesa rendering library.

Definition at line 57 of file vtkMesaLight.h.

---

Constructor & Destructor Documentation

vtkMesaLight::vtkMesaLight (    )  [inline, protected]

Definition at line 67 of file vtkMesaLight.h.

vtkMesaLight::~vtkMesaLight (    )  [inline, protected]

Definition at line 68 of file vtkMesaLight.h.

---

Member Function Documentation

vtkMesaLight* vtkMesaLight::New (    )  [static]

Create a light with the focal point at the origin and its position set to (0,0,1). The light is a SceneLight, its color is white, intensity=1, and the light is turned on. Reimplemented from vtkLight.

virtual const char* vtkMesaLight::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkLight.

int vtkMesaLight::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkLight.

virtual int vtkMesaLight::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkLight.

vtkMesaLight* vtkMesaLight::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkLight.

void vtkMesaLight::Render (  vtkRenderer *    ren, int    light_index )  [virtual]

Implement base class method. Reimplemented from vtkLight.

---

The documentation for this class was generated from the following file:

• Rendering/vtkMesaLight.h

---
