vtkRenderer Class Reference

abstract specification for renderers. More...

#include <vtkRenderer.h>

Inheritance diagram for vtkRenderer:

Inheritance graph
[legend]

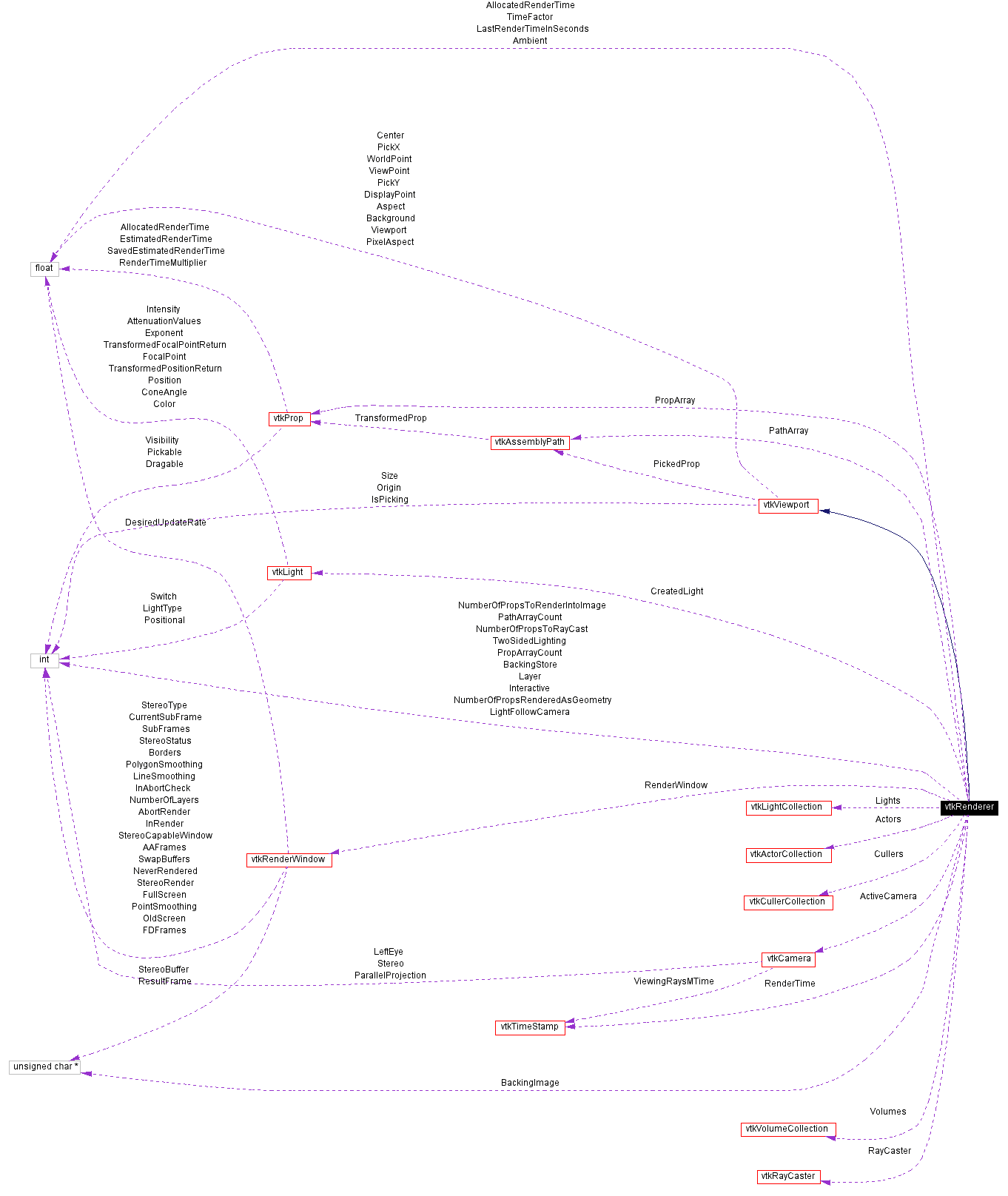

Collaboration diagram for vtkRenderer:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void AddLight (vtkLight *)
void RemoveLight (vtkLight *)
vtkLightCollection * GetLights ()
vtkVolumeCollection * GetVolumes ()
vtkActorCollection * GetActors ()
void SetActiveCamera (vtkCamera *)
vtkCamera * GetActiveCamera ()
virtual vtkCamera * MakeCamera ()
void AddCuller (vtkCuller *)
void RemoveCuller (vtkCuller *)
vtkCullerCollection * GetCullers ()
virtual float GetTimeFactor ()
virtual void Render ()
virtual void DeviceRender ()=0
virtual void Clear ()
int VisibleActorCount ()
int VisibleVolumeCount ()
void CreateLight (void)
virtual vtkLight * MakeLight ()
void ComputeVisiblePropBounds (float bounds[6])
void ResetCameraClippingRange ()
void ResetCamera ()
void ResetCamera (float bounds[6])
int Transparent ()
void WorldToView ()
virtual void WorldToView (float &wx, float &wy, float &wz)
float GetZ (int x, int y)
void RenderOverlay ()
unsigned long GetMTime ()
vtkAssemblyPath * PickProp (float selectionX, float selectionY)
vtkRayCaster * GetRayCaster ()
void AddActor (vtkProp *p)
void AddVolume (vtkProp *p)
void RemoveActor (vtkProp *p)
void RemoveVolume (vtkProp *p)
virtual void SetAmbient (float, float, float)
virtual void SetAmbient (float[3])
virtual float * GetAmbient ()
virtual void GetAmbient (float data[3])
virtual void SetAllocatedRenderTime (float)
virtual float GetAllocatedRenderTime ()
void ResetCameraClippingRange (float bounds[6])
void ResetCameraClippingRange (float xmin, float xmax, float ymin, float ymax, float zmin, float zmax)
void ResetCamera (float xmin, float xmax, float ymin, float ymax, float zmin, float zmax)
void SetRenderWindow (vtkRenderWindow *)
vtkRenderWindow * GetRenderWindow ()
virtual vtkWindow * GetVTKWindow ()
virtual int GetTwoSidedLighting ()
virtual void SetTwoSidedLighting (int)
virtual void TwoSidedLightingOn ()
virtual void TwoSidedLightingOff ()
virtual void SetBackingStore (int)
virtual int GetBackingStore ()
virtual void BackingStoreOn ()
virtual void BackingStoreOff ()
virtual void SetInteractive (int)
virtual int GetInteractive ()
virtual void InteractiveOn ()
virtual void InteractiveOff ()
virtual void SetLayer (int)
virtual int GetLayer ()
void ViewToWorld ()
virtual void ViewToWorld (float &wx, float &wy, float &wz)
virtual float GetLastRenderTimeInSeconds ()
virtual int GetNumberOfPropsRenderedAsGeometry ()
virtual void SetLightFollowCamera (int)
virtual int GetLightFollowCamera ()
virtual void LightFollowCameraOn ()
virtual void LightFollowCameraOff ()

Static Public Methods

int IsTypeOf (const char *type)
vtkRenderer * SafeDownCast (vtkObject *o)
vtkRenderer * New ()

Protected Methods

 vtkRenderer ()
 ~vtkRenderer ()
virtual void PickRender (vtkPropCollection *props)
virtual void PickGeometry ()
void AllocateTime ()
virtual int UpdateGeometry (void)
virtual int UpdateCamera (void)
virtual int UpdateLightGeometry (void)
virtual int UpdateLights (void)

Protected Attributes

vtkCamera * ActiveCamera
vtkLight * CreatedLight
vtkLightCollection * Lights
vtkCullerCollection * Cullers
vtkActorCollection * Actors
vtkVolumeCollection * Volumes
float Ambient [3]
vtkRenderWindow * RenderWindow
float AllocatedRenderTime
float TimeFactor
int TwoSidedLighting
int BackingStore
unsigned char * BackingImage
vtkTimeStamp RenderTime
float LastRenderTimeInSeconds
int LightFollowCamera
int NumberOfPropsRenderedAsGeometry
int NumberOfPropsToRayCast
int NumberOfPropsToRenderIntoImage
vtkProp ** PropArray
int PropArrayCount
vtkAssemblyPath ** PathArray
int PathArrayCount
int Interactive
int Layer
vtkRayCaster * RayCaster

Detailed Description

abstract specification for renderers.

Date:
2001/11/13 14:17:28
Revision:
1.101

vtkRenderer provides an abstract specification for renderers. A renderer is an object that controls the rendering process for objects. Rendering is the process of converting geometry, a specification for lights, and a camera view into an image. vtkRenderer also performs coordinate transformation between world coordinates, view coordinates (the computer graphics rendering coordinate system), and display coordinates (the actual screen coordinates on the display device). Certain advanced rendering features such as two-sided lighting can also be controlled.

See also:
vtkRenderWindow vtkActor vtkCamera vtkLight vtkVolume
Events:
vtkCommand::StartEvent vtkCommand::ResetCameraClippingRangeEvent vtkCommand::EndEvent vtkCommand::ResetCameraEvent
Examples:
vtkRenderer (Examples)
Tests:
vtkRenderer (Tests)

Definition at line 86 of file vtkRenderer.h.

Constructor & Destructor Documentation

vtkRenderer::vtkRenderer (    )  [protected]


vtkRenderer::~vtkRenderer (    )  [protected]


Member Function Documentation

virtual const char* vtkRenderer::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

int vtkRenderer::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

virtual int vtkRenderer::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

vtkRenderer* vtkRenderer::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

void vtkRenderer::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

vtkRenderer* vtkRenderer::New (    )  [static]


Create a vtkRenderer with a black background, a white ambient light, two-sided lighting turned on, a viewport of (0,0,1,1), and backface culling turned off.

Reimplemented from vtkObject.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

void vtkRenderer::AddLight (  vtkLight *    )


Add a light to the list of lights.

void vtkRenderer::AddActor (  vtkProp *    p )  [inline]


Add/Remove different types of props to the renderer. These methods are all synonyms to AddProp and RemoveProp. They are here for convenience and backwards compatibility.

Definition at line 104 of file vtkRenderer.h.

void vtkRenderer::AddVolume (  vtkProp *    p )  [inline]


Add/Remove different types of props to the renderer. These methods are all synonyms to AddProp and RemoveProp. They are here for convenience and backwards compatibility.

Definition at line 105 of file vtkRenderer.h.

void vtkRenderer::RemoveActor (  vtkProp *    p )  [inline]


Add/Remove different types of props to the renderer. These methods are all synonyms to AddProp and RemoveProp. They are here for convenience and backwards compatibility.

Definition at line 106 of file vtkRenderer.h.

void vtkRenderer::RemoveVolume (  vtkProp *    p )  [inline]


Add/Remove different types of props to the renderer. These methods are all synonyms to AddProp and RemoveProp. They are here for convenience and backwards compatibility.

Definition at line 107 of file vtkRenderer.h.

void vtkRenderer::RemoveLight (  vtkLight *    )


Remove a light from the list of lights.

vtkLightCollection * vtkRenderer::GetLights (    )  [inline]


Return the collection of lights.

Definition at line 420 of file vtkRenderer.h.

vtkVolumeCollection* vtkRenderer::GetVolumes (    )


Return the collection of volumes.

vtkActorCollection* vtkRenderer::GetActors (    )


Return any actors in this renderer.

void vtkRenderer::SetActiveCamera (  vtkCamera *    )


Specify the camera to use for this renderer.

vtkCamera* vtkRenderer::GetActiveCamera (    )


Get the current camera.

virtual vtkCamera* vtkRenderer::MakeCamera (    )  [virtual]


Create a new Camera sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaCamera in this function. The default is to just call vtkCamera::New.

Reimplemented in vtkMesaRenderer.

void vtkRenderer::AddCuller (  vtkCuller *    )


Add an culler to the list of cullers.

void vtkRenderer::RemoveCuller (  vtkCuller *    )


Remove an actor from the list of cullers.

vtkCullerCollection * vtkRenderer::GetCullers (    )  [inline]


Return the collection of cullers.

Definition at line 423 of file vtkRenderer.h.

virtual void vtkRenderer::SetAmbient (  float   ,
float   ,
float
)  [virtual]


Set the intensity of ambient lighting.

virtual void vtkRenderer::SetAmbient (  float   [3] )  [virtual]


Set the intensity of ambient lighting.

virtual float* vtkRenderer::GetAmbient (    )  [virtual]


Set the intensity of ambient lighting.

virtual void vtkRenderer::GetAmbient (  float    data[3] )  [virtual]


Set the intensity of ambient lighting.

virtual void vtkRenderer::SetAllocatedRenderTime (  float    )  [virtual]


Set/Get the amount of time this renderer is allowed to spend rendering its scene. This is used by vtkLODActor's.

virtual float vtkRenderer::GetAllocatedRenderTime (    )  [virtual]


Set/Get the amount of time this renderer is allowed to spend rendering its scene. This is used by vtkLODActor's.

virtual float vtkRenderer::GetTimeFactor (    )  [virtual]


Get the ratio between allocated time and actual render time. TimeFactor has been taken out of the render process. It is still computed in case someone finds it useful. It may be taken away in the future.

virtual void vtkRenderer::Render (  void    )  [virtual]


Create an image. This is a superclass method which will in turn call the DeviceRender method of Subclasses of vtkRenderer

virtual void vtkRenderer::DeviceRender (  void    )  [pure virtual]


Create an image. Subclasses of vtkRenderer must implement this method.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

virtual void vtkRenderer::Clear (  void    )  [inline, virtual]


Clear the image to the background color.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

Definition at line 171 of file vtkRenderer.h.

int vtkRenderer::VisibleActorCount (    )


Returns the number of visible actors.

int vtkRenderer::VisibleVolumeCount (    )


Returns the number of visible volumes.

void vtkRenderer::CreateLight (  void    )


Create and add a light to renderer.

virtual vtkLight* vtkRenderer::MakeLight (    )  [virtual]


Create a new Light sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaLight in this function. The default is to just call vtkLight::New.

Reimplemented in vtkMesaRenderer.

void vtkRenderer::ComputeVisiblePropBounds (  float    bounds[6] )


Compute the bounding box of all the visible props Used in ResetCamera() and ResetCameraClippingRange()

void vtkRenderer::ResetCameraClippingRange (    )


Reset the camera clipping range based on the bounds of the visible actors. This ensures that no props are cut off

void vtkRenderer::ResetCameraClippingRange (  float    bounds[6] )


Reset the camera clipping range based on a bounding box. This method is called from ResetCameraClippingRange()

void vtkRenderer::ResetCameraClippingRange (  float    xmin,
float    xmax,
float    ymin,
float    ymax,
float    zmin,
float    zmax
)


Reset the camera clipping range based on a bounding box. This method is called from ResetCameraClippingRange()

void vtkRenderer::ResetCamera (    )


Automatically set up the camera based on the visible actors. The camera will reposition itself to view the center point of the actors, and move along its initial view plane normal (i.e., vector defined from camera position to focal point) so that all of the actors can be seen.

void vtkRenderer::ResetCamera (  float    bounds[6] )


Automatically set up the camera based on a specified bounding box (xmin,xmax, ymin,ymax, zmin,zmax). Camera will reposition itself so that its focal point is the center of the bounding box, and adjust its distance and position to preserve its initial view plane normal (i.e., vector defined from camera position to focal point). Note: is the view plane is parallel to the view up axis, the view up axis will be reset to one of the three coordinate axes.

void vtkRenderer::ResetCamera (  float    xmin,
float    xmax,
float    ymin,
float    ymax,
float    zmin,
float    zmax
)


Alternative version of ResetCamera(bounds[6]);

void vtkRenderer::SetRenderWindow (  vtkRenderWindow *    )


Specify the rendering window in which to draw. This is automatically set when the renderer is created by MakeRenderer. The user probably shouldn't ever need to call this method.

vtkRenderWindow* vtkRenderer::GetRenderWindow (    )  [inline]


Specify the rendering window in which to draw. This is automatically set when the renderer is created by MakeRenderer. The user probably shouldn't ever need to call this method.

Definition at line 231 of file vtkRenderer.h.

virtual vtkWindow* vtkRenderer::GetVTKWindow (    )  [virtual]


Specify the rendering window in which to draw. This is automatically set when the renderer is created by MakeRenderer. The user probably shouldn't ever need to call this method.

Reimplemented from vtkViewport.

virtual int vtkRenderer::GetTwoSidedLighting (    )  [virtual]


Turn on/off two-sided lighting of surfaces. If two-sided lighting is off, then only the side of the surface facing the light(s) will be lit, and the other side dark. If two-sided lighting on, both sides of the surface will be lit.

virtual void vtkRenderer::SetTwoSidedLighting (  int    )  [virtual]


Turn on/off two-sided lighting of surfaces. If two-sided lighting is off, then only the side of the surface facing the light(s) will be lit, and the other side dark. If two-sided lighting on, both sides of the surface will be lit.

virtual void vtkRenderer::TwoSidedLightingOn (    )  [virtual]


Turn on/off two-sided lighting of surfaces. If two-sided lighting is off, then only the side of the surface facing the light(s) will be lit, and the other side dark. If two-sided lighting on, both sides of the surface will be lit.

virtual void vtkRenderer::TwoSidedLightingOff (    )  [virtual]


Turn on/off two-sided lighting of surfaces. If two-sided lighting is off, then only the side of the surface facing the light(s) will be lit, and the other side dark. If two-sided lighting on, both sides of the surface will be lit.

virtual void vtkRenderer::SetBackingStore (  int    )  [virtual]


Turn on/off using backing store. This may cause the re-rendering time to be slightly slower when the view changes. But it is much faster when the image has not changed, such as during an expose event.

virtual int vtkRenderer::GetBackingStore (    )  [virtual]


Turn on/off using backing store. This may cause the re-rendering time to be slightly slower when the view changes. But it is much faster when the image has not changed, such as during an expose event.

virtual void vtkRenderer::BackingStoreOn (    )  [virtual]


Turn on/off using backing store. This may cause the re-rendering time to be slightly slower when the view changes. But it is much faster when the image has not changed, such as during an expose event.

virtual void vtkRenderer::BackingStoreOff (    )  [virtual]


Turn on/off using backing store. This may cause the re-rendering time to be slightly slower when the view changes. But it is much faster when the image has not changed, such as during an expose event.

virtual void vtkRenderer::SetInteractive (  int    )  [virtual]


Turn on/off interactive status. An interactive renderer is one that can receive events from an interactor. Should only be set if there are multiple renderers in the same section of the viewport.

virtual int vtkRenderer::GetInteractive (    )  [virtual]


Turn on/off interactive status. An interactive renderer is one that can receive events from an interactor. Should only be set if there are multiple renderers in the same section of the viewport.

virtual void vtkRenderer::InteractiveOn (    )  [virtual]


Turn on/off interactive status. An interactive renderer is one that can receive events from an interactor. Should only be set if there are multiple renderers in the same section of the viewport.

virtual void vtkRenderer::InteractiveOff (    )  [virtual]


Turn on/off interactive status. An interactive renderer is one that can receive events from an interactor. Should only be set if there are multiple renderers in the same section of the viewport.

virtual void vtkRenderer::SetLayer (  int    )  [virtual]


Set/Get the layer that this renderer belongs to. This is only used if there are layered renderers.

virtual int vtkRenderer::GetLayer (    )  [virtual]


Set/Get the layer that this renderer belongs to. This is only used if there are layered renderers.

int vtkRenderer::Transparent (    )


Returns a boolean indicating if this renderer is transparent. It is transparent if it is not in the deepest layer of its render window.

void vtkRenderer::WorldToView (    )  [virtual]


Convert world point coordinates to view coordinates.

Reimplemented from vtkViewport.

void vtkRenderer::ViewToWorld (    )  [virtual]


Convert view point coordinates to world coordinates.

Reimplemented from vtkViewport.

virtual void vtkRenderer::ViewToWorld (  float &    wx,
float &    wy,
float &    wz
)  [virtual]


Convert view point coordinates to world coordinates.

Reimplemented from vtkViewport.

virtual void vtkRenderer::WorldToView (  float &    wx,
float &    wy,
float &    wz
)  [virtual]


Convert world point coordinates to view coordinates.

Reimplemented from vtkViewport.

float vtkRenderer::GetZ (  int    x,
int    y
)


Given a pixel location, return the Z value

void vtkRenderer::RenderOverlay (    )


Render the overlay actors. This gets called from the RenderWindow because it may need to be synchronized to happen after the buffers have been swapped.

unsigned long vtkRenderer::GetMTime (    )  [virtual]


Return the MTime of the renderer also considering its ivars.

Reimplemented from vtkObject.

virtual float vtkRenderer::GetLastRenderTimeInSeconds (    )  [virtual]


Get the time required, in seconds, for the last Render call.

virtual int vtkRenderer::GetNumberOfPropsRenderedAsGeometry (    )  [virtual]


Should be used internally only during a render Get the number of props that were rendered using a RenderOpaqueGeometry or RenderTranslucentGeometry call. This is used to know if something is in the frame buffer.

vtkAssemblyPath* vtkRenderer::PickProp (  float    selectionX,
float    selectionY
)  [virtual]


Return the prop (via a vtkAssemblyPath) that has the highest z value at the given x, y position in the viewport. Basically, the top most prop that renders the pixel at selectionX, selectionY will be returned. If nothing was picked then NULL is returned. This method selects from the renderers Prop list.

Reimplemented from vtkViewport.

virtual void vtkRenderer::SetLightFollowCamera (  int    )  [virtual]


Turn on/off the automatic repositioning of lights as the camera moves. If LightFollowCamera is on, lights that are designated as Headlights or CameraLights will be adjusted to move with this renderer's camera. If LightFollowCamera is off, the lights will not be adjusted. (Note: In previous versions of vtk, this light-tracking functionality was part of the interactors, not the renderer. For backwards compatibility, the older, more limited interactor behavior is enabled by default. This mode has the possibly unexpected property of turning the first light into a headlight, no matter what its light type is. To disable this mode, turn the interactor's LightFollowCamera flag OFF, and leave the renderer's LightFollowCamera flag ON.)

virtual int vtkRenderer::GetLightFollowCamera (    )  [virtual]


Turn on/off the automatic repositioning of lights as the camera moves. If LightFollowCamera is on, lights that are designated as Headlights or CameraLights will be adjusted to move with this renderer's camera. If LightFollowCamera is off, the lights will not be adjusted. (Note: In previous versions of vtk, this light-tracking functionality was part of the interactors, not the renderer. For backwards compatibility, the older, more limited interactor behavior is enabled by default. This mode has the possibly unexpected property of turning the first light into a headlight, no matter what its light type is. To disable this mode, turn the interactor's LightFollowCamera flag OFF, and leave the renderer's LightFollowCamera flag ON.)

virtual void vtkRenderer::LightFollowCameraOn (    )  [virtual]


Turn on/off the automatic repositioning of lights as the camera moves. If LightFollowCamera is on, lights that are designated as Headlights or CameraLights will be adjusted to move with this renderer's camera. If LightFollowCamera is off, the lights will not be adjusted. (Note: In previous versions of vtk, this light-tracking functionality was part of the interactors, not the renderer. For backwards compatibility, the older, more limited interactor behavior is enabled by default. This mode has the possibly unexpected property of turning the first light into a headlight, no matter what its light type is. To disable this mode, turn the interactor's LightFollowCamera flag OFF, and leave the renderer's LightFollowCamera flag ON.)

virtual void vtkRenderer::LightFollowCameraOff (    )  [virtual]


Turn on/off the automatic repositioning of lights as the camera moves. If LightFollowCamera is on, lights that are designated as Headlights or CameraLights will be adjusted to move with this renderer's camera. If LightFollowCamera is off, the lights will not be adjusted. (Note: In previous versions of vtk, this light-tracking functionality was part of the interactors, not the renderer. For backwards compatibility, the older, more limited interactor behavior is enabled by default. This mode has the possibly unexpected property of turning the first light into a headlight, no matter what its light type is. To disable this mode, turn the interactor's LightFollowCamera flag OFF, and leave the renderer's LightFollowCamera flag ON.)

vtkRayCaster* vtkRenderer::GetRayCaster (    )  [inline]


Definition at line 335 of file vtkRenderer.h.

virtual void vtkRenderer::PickRender (  vtkPropCollection *    props )  [protected, virtual]


virtual void vtkRenderer::PickGeometry (    )  [protected, virtual]


void vtkRenderer::AllocateTime (    )  [protected]


virtual int vtkRenderer::UpdateGeometry (  void    )  [protected, virtual]


Ask all props to update and draw any opaque and translucent geometry. This includes both vtkActors and vtkVolumes Returns the number of props that rendered geometry.

virtual int vtkRenderer::UpdateCamera (  void    )  [protected, virtual]


Ask the active camera to do whatever it needs to do prior to rendering. Creates a camera if none found active.

virtual int vtkRenderer::UpdateLightGeometry (  void    )  [protected, virtual]


Update the geometry of the lights in the scene that are not in world space (for instance, Headlights or CameraLights that are attached to the camera).

virtual int vtkRenderer::UpdateLights (  void    )  [inline, protected, virtual]


Ask all lights to load themselves into rendering pipeline. This method will return the actual number of lights that were on.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

Definition at line 411 of file vtkRenderer.h.

Member Data Documentation

vtkCamera* vtkRenderer::ActiveCamera [protected]


Definition at line 347 of file vtkRenderer.h.

vtkLight* vtkRenderer::CreatedLight [protected]


Definition at line 348 of file vtkRenderer.h.

vtkLightCollection* vtkRenderer::Lights [protected]


Definition at line 350 of file vtkRenderer.h.

vtkCullerCollection* vtkRenderer::Cullers [protected]


Definition at line 351 of file vtkRenderer.h.

vtkActorCollection* vtkRenderer::Actors [protected]


Definition at line 353 of file vtkRenderer.h.

vtkVolumeCollection* vtkRenderer::Volumes [protected]


Definition at line 354 of file vtkRenderer.h.

float vtkRenderer::Ambient[3] [protected]


Definition at line 356 of file vtkRenderer.h.

vtkRenderWindow* vtkRenderer::RenderWindow [protected]


Definition at line 357 of file vtkRenderer.h.

float vtkRenderer::AllocatedRenderTime [protected]


Definition at line 358 of file vtkRenderer.h.

float vtkRenderer::TimeFactor [protected]


Definition at line 359 of file vtkRenderer.h.

int vtkRenderer::TwoSidedLighting [protected]


Definition at line 360 of file vtkRenderer.h.

int vtkRenderer::BackingStore [protected]


Definition at line 361 of file vtkRenderer.h.

unsigned char* vtkRenderer::BackingImage [protected]


Definition at line 362 of file vtkRenderer.h.

vtkTimeStamp vtkRenderer::RenderTime [protected]


Definition at line 363 of file vtkRenderer.h.

float vtkRenderer::LastRenderTimeInSeconds [protected]


Definition at line 365 of file vtkRenderer.h.

int vtkRenderer::LightFollowCamera [protected]


Definition at line 367 of file vtkRenderer.h.

int vtkRenderer::NumberOfPropsRenderedAsGeometry [protected]


Definition at line 374 of file vtkRenderer.h.

int vtkRenderer::NumberOfPropsToRayCast [protected]


Definition at line 375 of file vtkRenderer.h.

int vtkRenderer::NumberOfPropsToRenderIntoImage [protected]


Definition at line 376 of file vtkRenderer.h.

vtkProp** vtkRenderer::PropArray [protected]


Definition at line 380 of file vtkRenderer.h.

int vtkRenderer::PropArrayCount [protected]


Definition at line 381 of file vtkRenderer.h.

vtkAssemblyPath** vtkRenderer::PathArray [protected]


Definition at line 384 of file vtkRenderer.h.

int vtkRenderer::PathArrayCount [protected]


Definition at line 385 of file vtkRenderer.h.

int vtkRenderer::Interactive [protected]


Definition at line 389 of file vtkRenderer.h.

int vtkRenderer::Layer [protected]


Definition at line 393 of file vtkRenderer.h.

vtkRayCaster* vtkRenderer::RayCaster [protected]


Definition at line 413 of file vtkRenderer.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:41:26 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
