vtkOpenGLActor Class Reference

OpenGL actor. More...

#include <vtkOpenGLActor.h>

Inheritance diagram for vtkOpenGLActor:

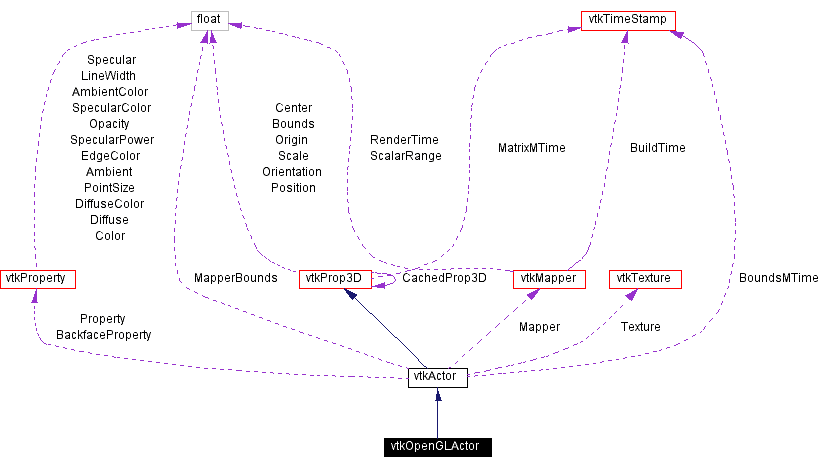

[legend]Collaboration diagram for vtkOpenGLActor:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	Render (vtkRenderer *ren, vtkMapper *mapper)
Static Public Methods
vtkOpenGLActor *	New ()
int	IsTypeOf (const char *type)
vtkOpenGLActor *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkOpenGLActor ()
	~vtkOpenGLActor ()

---

Detailed Description

OpenGL actor.

Date:

2001/10/11 13:38:17

Revision:

1.15

vtkOpenGLActor is a concrete implementation of the abstract class vtkActor. vtkOpenGLActor interfaces to the OpenGL rendering library.

Definition at line 57 of file vtkOpenGLActor.h.

---

Constructor & Destructor Documentation

vtkOpenGLActor::vtkOpenGLActor (    )  [inline, protected]

Definition at line 69 of file vtkOpenGLActor.h.

vtkOpenGLActor::~vtkOpenGLActor (    )  [inline, protected]

Definition at line 70 of file vtkOpenGLActor.h.

---

Member Function Documentation

vtkOpenGLActor* vtkOpenGLActor::New (    )  [static]

Creates an actor with the following defaults: origin(0,0,0) position=(0,0,0) scale=(1,1,1) visibility=1 pickable=1 dragable=1 orientation=(0,0,0). No user defined matrix and no texture map. Reimplemented from vtkActor.

virtual const char* vtkOpenGLActor::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkActor.

int vtkOpenGLActor::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkActor.

virtual int vtkOpenGLActor::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkActor.

vtkOpenGLActor* vtkOpenGLActor::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkActor.

void vtkOpenGLActor::Render (  vtkRenderer *    ren, vtkMapper *    mapper )  [virtual]

Actual actor render method. Reimplemented from vtkActor.

---

The documentation for this class was generated from the following file:

• Rendering/vtkOpenGLActor.h

---
