vtkOpenGLImageWindow Class Reference

OpenGL Imageing window. More...

#include <vtkOpenGLImageWindow.h>

Inheritance diagram for vtkOpenGLImageWindow:

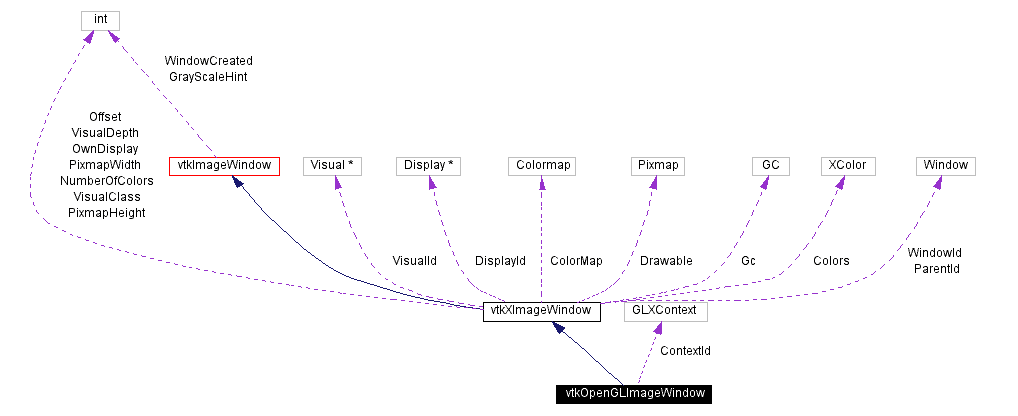

[legend]Collaboration diagram for vtkOpenGLImageWindow:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	MakeDefaultWindow ()
void	SwapBuffers ()
void	Frame ()
void	Render ()
void	MakeCurrent ()
virtual void	EraseWindow ()

virtual void *	GetGenericDisplayId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual void *	GetGenericContext ()
virtual void *	GetGenericDrawable ()

virtual Colormap	GetDesiredColormap ()
virtual Visual *	GetDesiredVisual ()
XVisualInfo *	GetDesiredVisualInfo ()
virtual int	GetDesiredDepth ()

virtual unsigned char *	GetPixelData (int x, int y, int x2, int y2, int front)
virtual void	SetPixelData (int x, int y, int x2, int y2, unsigned char *, int front)

virtual float *	GetRGBAPixelData (int x, int y, int x2, int y2, int front)
virtual void	SetRGBAPixelData (int x, int y, int x2, int y2, float *, int front, int blend=0)
Static Public Methods
vtkOpenGLImageWindow *	New ()
int	IsTypeOf (const char *type)
vtkOpenGLImageWindow *	SafeDownCast (vtkObject *o)
Public Attributes
GLXContext	ContextId
Protected Methods
	vtkOpenGLImageWindow ()
	~vtkOpenGLImageWindow ()

Detailed Description

OpenGL Imageing window.

Date:: 2001/11/13 14:17:24

Revision:: 1.19

vtkOpenGLImageWindow is a concrete implementation of the abstract class vtkImageWindow. vtkOpenGLImageer interfaces to the standard OpenGL graphics library in the Windows/NT environment..

Definition at line 62 of file vtkOpenGLImageWindow.h.

Constructor & Destructor Documentation

vtkOpenGLImageWindow::vtkOpenGLImageWindow ( ) [protected]

vtkOpenGLImageWindow::~vtkOpenGLImageWindow ( ) [protected]

Member Function Documentation

vtkOpenGLImageWindow* vtkOpenGLImageWindow::New ( ) [static]

Creates a vtkImageWindow with background erasing disabled and gray scale hint off
Reimplemented from vtkXImageWindow.

virtual const char* vtkOpenGLImageWindow::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkXImageWindow.

int vtkOpenGLImageWindow::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkXImageWindow.

virtual int vtkOpenGLImageWindow::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkXImageWindow.

vtkOpenGLImageWindow* vtkOpenGLImageWindow::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkXImageWindow.

void vtkOpenGLImageWindow::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkXImageWindow.

virtual void vtkOpenGLImageWindow::MakeDefaultWindow ( ) [virtual]

Initialize the window for rendering.
Reimplemented from vtkXImageWindow.

void vtkOpenGLImageWindow::SwapBuffers ( ) [virtual]

Swap the front and back buffers if double buffering is being used.
Reimplemented from vtkXImageWindow.

void vtkOpenGLImageWindow::Frame ( ) [virtual]

Flush the buffers and swap if necessary
Reimplemented from vtkXImageWindow.

void vtkOpenGLImageWindow::Render ( void ) [virtual]

Draw the contents of the window
Reimplemented from vtkImageWindow.

virtual void* vtkOpenGLImageWindow::GetGenericDisplayId ( ) [inline, virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.
Definition at line 83 of file vtkOpenGLImageWindow.h.

virtual void* vtkOpenGLImageWindow::GetGenericWindowId ( ) [inline, virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.
Definition at line 84 of file vtkOpenGLImageWindow.h.

virtual void* vtkOpenGLImageWindow::GetGenericParentId ( ) [inline, virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.
Definition at line 85 of file vtkOpenGLImageWindow.h.

virtual void* vtkOpenGLImageWindow::GetGenericContext ( ) [virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.

virtual void* vtkOpenGLImageWindow::GetGenericDrawable ( ) [inline, virtual]

Xwindow get set functions
Reimplemented from vtkXImageWindow.
Definition at line 87 of file vtkOpenGLImageWindow.h.

virtual Colormap vtkOpenGLImageWindow::GetDesiredColormap ( ) [virtual]

Get the X properties of an ideal rendering window.
Reimplemented from vtkXImageWindow.

virtual Visual* vtkOpenGLImageWindow::GetDesiredVisual ( ) [virtual]

Get the X properties of an ideal rendering window.
Reimplemented from vtkXImageWindow.

XVisualInfo* vtkOpenGLImageWindow::GetDesiredVisualInfo ( )

Get the X properties of an ideal rendering window.

virtual int vtkOpenGLImageWindow::GetDesiredDepth ( ) [virtual]

Get the X properties of an ideal rendering window.
Reimplemented from vtkXImageWindow.

virtual unsigned char* vtkOpenGLImageWindow::GetPixelData ( int x,

int y,

int x2,

int y2,

int front

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...
Reimplemented from vtkXImageWindow.

virtual void vtkOpenGLImageWindow::SetPixelData ( int x,

int y,

int x2,

int y2,

unsigned char * ,

int front

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB...

virtual float* vtkOpenGLImageWindow::GetRGBAPixelData ( int x,

int y,

int x2,

int y2,

int front

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

virtual void vtkOpenGLImageWindow::SetRGBAPixelData ( int x,

int y,

int x2,

int y2,

float * ,

int front,

int blend = 0

) [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

void vtkOpenGLImageWindow::MakeCurrent ( ) [virtual]

Make this windows OpenGL context the current context.
Reimplemented from vtkImageWindow.

virtual void vtkOpenGLImageWindow::EraseWindow ( ) [inline, virtual]

Erase the window contents
Reimplemented from vtkXImageWindow.
Definition at line 116 of file vtkOpenGLImageWindow.h.

Member Data Documentation

GLXContext vtkOpenGLImageWindow::ContextId

Definition at line 118 of file vtkOpenGLImageWindow.h.

The documentation for this class was generated from the following file:

Rendering/vtkOpenGLImageWindow.h

Generated on Thu Mar 28 14:37:31 2002 for VTK by
