vtkOpenGLRenderer Class Reference

OpenGL renderer. More...

#include <vtkOpenGLRenderer.h>

Inheritance diagram for vtkOpenGLRenderer:

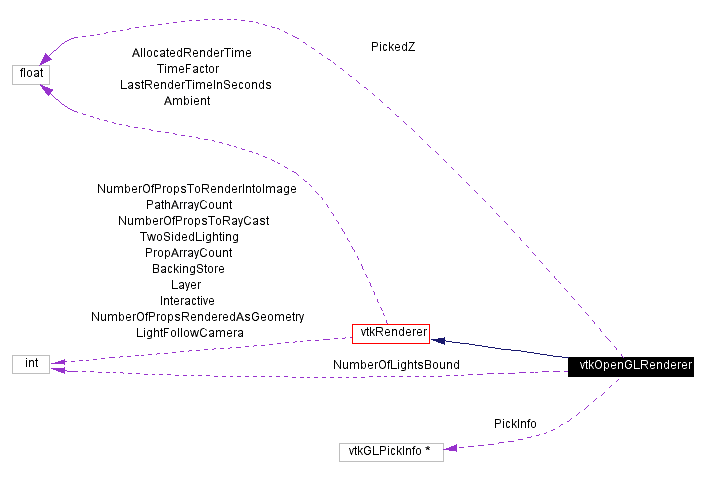

[legend]Collaboration diagram for vtkOpenGLRenderer:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	DeviceRender (void)
void	ClearLights (void)
void	Clear (void)
int	UpdateLights (void)
Static Public Methods
vtkOpenGLRenderer *	New ()
int	IsTypeOf (const char *type)
vtkOpenGLRenderer *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkOpenGLRenderer ()
	~vtkOpenGLRenderer ()
virtual void	DevicePickRender ()
virtual void	StartPick (unsigned int pickFromSize)
virtual void	UpdatePickId ()
virtual void	DonePick ()
virtual unsigned int	GetPickedId ()
virtual float	GetPickedZ ()
Protected Attributes
int	NumberOfLightsBound
vtkGLPickInfo *	PickInfo
float	PickedZ

---

Detailed Description

OpenGL renderer.

Date:

2001/10/11 13:38:19

Revision:

1.26

vtkOpenGLRenderer is a concrete implementation of the abstract class vtkRenderer. vtkOpenGLRenderer interfaces to the OpenGL graphics library.

Definition at line 56 of file vtkOpenGLRenderer.h.

---

Constructor & Destructor Documentation

vtkOpenGLRenderer::vtkOpenGLRenderer (    )  [protected]

vtkOpenGLRenderer::~vtkOpenGLRenderer (    )  [protected]

---

Member Function Documentation

vtkOpenGLRenderer* vtkOpenGLRenderer::New (    )  [static]

Create a vtkRenderer with a black background, a white ambient light, two-sided lighting turned on, a viewport of (0,0,1,1), and backface culling turned off. Reimplemented from vtkRenderer.

virtual const char* vtkOpenGLRenderer::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkRenderer.

int vtkOpenGLRenderer::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkRenderer.

virtual int vtkOpenGLRenderer::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkRenderer.

vtkOpenGLRenderer* vtkOpenGLRenderer::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkRenderer.

void vtkOpenGLRenderer::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkRenderer.

void vtkOpenGLRenderer::DeviceRender (  void    )  [virtual]

Concrete open gl render method. Reimplemented from vtkRenderer.

void vtkOpenGLRenderer::ClearLights (  void    )

Internal method temporarily removes lights before reloading them into graphics pipeline.

void vtkOpenGLRenderer::Clear (  void    )  [virtual]

Clear the image to the background color. Reimplemented from vtkRenderer.

int vtkOpenGLRenderer::UpdateLights (  void    )  [virtual]

Ask lights to load themselves into graphics pipeline. Reimplemented from vtkRenderer.

virtual void vtkOpenGLRenderer::DevicePickRender (    )  [protected, virtual]

Reimplemented from vtkViewport.

virtual void vtkOpenGLRenderer::StartPick (  unsigned int    pickFromSize )  [protected, virtual]

Reimplemented from vtkViewport.

virtual void vtkOpenGLRenderer::UpdatePickId (    )  [protected, virtual]

Reimplemented from vtkViewport.

virtual void vtkOpenGLRenderer::DonePick (    )  [protected, virtual]

Reimplemented from vtkViewport.

virtual unsigned int vtkOpenGLRenderer::GetPickedId (    )  [protected, virtual]

Reimplemented from vtkViewport.

virtual float vtkOpenGLRenderer::GetPickedZ (    )  [protected, virtual]

Return the Z value for the last picked Prop. Reimplemented from vtkViewport.

---

Member Data Documentation

int vtkOpenGLRenderer::NumberOfLightsBound [protected]

Definition at line 59 of file vtkOpenGLRenderer.h.

class vtkGLPickInfo* vtkOpenGLRenderer::PickInfo [protected]

Definition at line 91 of file vtkOpenGLRenderer.h.

float vtkOpenGLRenderer::PickedZ [protected]

Definition at line 93 of file vtkOpenGLRenderer.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkOpenGLRenderer.h

---
