vtkPNGWriter Class Reference

Writes PNG files. More...

#include <vtkPNGWriter.h>

Inheritance diagram for vtkPNGWriter:

Inheritance graph
[legend]

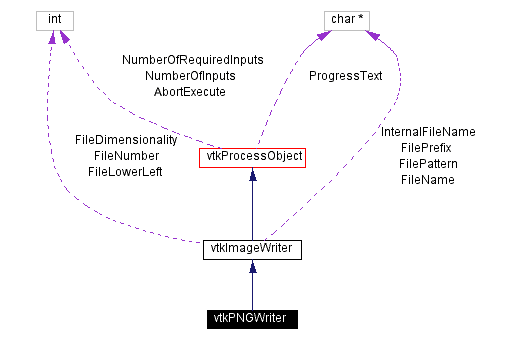

Collaboration diagram for vtkPNGWriter:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void Write ()

Static Public Methods

vtkPNGWriter * New ()
int IsTypeOf (const char *type)
vtkPNGWriter * SafeDownCast (vtkObject *o)

Protected Methods

 vtkPNGWriter ()
 ~vtkPNGWriter ()
void WriteSlice (vtkImageData *data)

Detailed Description

Writes PNG files.

Date:
2001/10/11 13:37:32
Revision:
1.4

vtkPNGWriter writes PNG files. It supports 1 to 4 component data of unsigned char or unsigned short

See also:
vtkPNGReader
Examples:
vtkPNGWriter (Examples)
Tests:
vtkPNGWriter (Tests)

Definition at line 64 of file vtkPNGWriter.h.


Constructor & Destructor Documentation

vtkPNGWriter::vtkPNGWriter   [protected]


vtkPNGWriter::~vtkPNGWriter   [inline, protected]


Definition at line 75 of file vtkPNGWriter.h.


Member Function Documentation

vtkPNGWriter* vtkPNGWriter::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageWriter.

virtual const char* vtkPNGWriter::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageWriter.

int vtkPNGWriter::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageWriter.

virtual int vtkPNGWriter::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageWriter.

vtkPNGWriter* vtkPNGWriter::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageWriter.

virtual void vtkPNGWriter::Write   [virtual]


The main interface which triggers the writer to start.

Reimplemented from vtkImageWriter.

void vtkPNGWriter::WriteSlice vtkImageData   data [protected]



The documentation for this class was generated from the following file:
