vtkPlane Class Reference

perform various plane computations. More...

#include <vtkPlane.h>

Inheritance diagram for vtkPlane:

[legend]Collaboration diagram for vtkPlane:

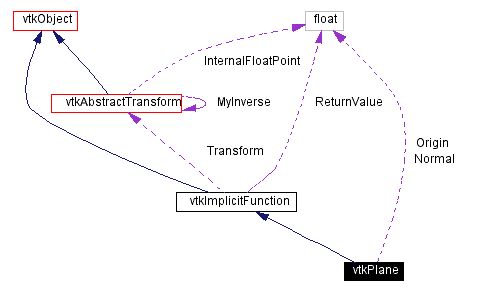

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	EvaluateGradient (float x[3], float g[3])
float	EvaluateFunction (float x[3])
float	EvaluateFunction (float x, float y, float z)
virtual void	SetNormal (float, float, float)
virtual void	SetNormal (float[3])
virtual float *	GetNormal ()
virtual void	GetNormal (float data[3])
virtual void	SetOrigin (float, float, float)
virtual void	SetOrigin (float[3])
virtual float *	GetOrigin ()
virtual void	GetOrigin (float data[3])
Static Public Methods
vtkPlane *	New ()
int	IsTypeOf (const char *type)
vtkPlane *	SafeDownCast (vtkObject *o)
float	DistanceToPlane (float x[3], float n[3], float p0[3])
void	ProjectPoint (float x[3], float origin[3], float normal[3], float xproj[3])
void	ProjectPoint (double x[3], double origin[3], double normal[3], double xproj[3])
void	GeneralizedProjectPoint (float x[3], float origin[3], float normal[3], float xproj[3])
float	Evaluate (float normal[3], float origin[3], float x[3])
float	Evaluate (double normal[3], double origin[3], double x[3])
int	IntersectWithLine (float p1[3], float p2[3], float n[3], float p0[3], float &t, float x[3])
Protected Methods
	vtkPlane ()
	~vtkPlane ()
Protected Attributes
float	Normal [3]
float	Origin [3]

---

Detailed Description

perform various plane computations.

Date:

2001/11/13 14:09:27

Revision:

1.45

vtkPlane provides methods for various plane computations. These include projecting points onto a plane, evaluating the plane equation, and returning plane normal. vtkPlane is a concrete implementation of the abstract class vtkImplicitFunction.

Examples:

vtkPlane (Examples)

Tests:

vtkPlane (Tests)

Definition at line 64 of file vtkPlane.h.

---

Constructor & Destructor Documentation

vtkPlane::vtkPlane (    )  [protected]

vtkPlane::~vtkPlane (    )  [inline, protected]

Definition at line 137 of file vtkPlane.h.

---

Member Function Documentation

vtkPlane* vtkPlane::New (    )  [static]

Construct plane passing through origin and normal to z-axis. Reimplemented from vtkObject.

virtual const char* vtkPlane::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImplicitFunction.

int vtkPlane::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImplicitFunction.

virtual int vtkPlane::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImplicitFunction.

vtkPlane* vtkPlane::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImplicitFunction.

void vtkPlane::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImplicitFunction.

float vtkPlane::EvaluateFunction (  float    x[3] )  [virtual]

Evaluate plane equation for point x[3]. Reimplemented from vtkImplicitFunction.

float vtkPlane::EvaluateFunction (  float    x, float    y, float    z )  [inline]

Evaluate plane equation for point x[3]. Reimplemented from vtkImplicitFunction. Definition at line 76 of file vtkPlane.h.

void vtkPlane::EvaluateGradient (  float    x[3], float    g[3] )  [virtual]

Evaluate function gradient at point x[3]. Reimplemented from vtkImplicitFunction.

virtual void vtkPlane::SetNormal (  float   , float   , float    )  [virtual]

Set/get plane normal. Plane is defined by point and normal.

virtual void vtkPlane::SetNormal (  float   [3] )  [virtual]

Set/get plane normal. Plane is defined by point and normal.

virtual float* vtkPlane::GetNormal (    )  [virtual]

Set/get plane normal. Plane is defined by point and normal.

virtual void vtkPlane::GetNormal (  float    data[3] )  [virtual]

Set/get plane normal. Plane is defined by point and normal.

virtual void vtkPlane::SetOrigin (  float   , float   , float    )  [virtual]

Set/get point through which plane passes. Plane is defined by point and normal.

virtual void vtkPlane::SetOrigin (  float   [3] )  [virtual]

Set/get point through which plane passes. Plane is defined by point and normal.

virtual float* vtkPlane::GetOrigin (    )  [virtual]

Set/get point through which plane passes. Plane is defined by point and normal.

virtual void vtkPlane::GetOrigin (  float    data[3] )  [virtual]

Set/get point through which plane passes. Plane is defined by point and normal.

void vtkPlane::ProjectPoint (  float    x[3], float    origin[3], float    normal[3], float    xproj[3] )  [static]

Project a point x onto plane defined by origin and normal. The projected point is returned in xproj. NOTE : normal assumed to have magnitude 1.

void vtkPlane::ProjectPoint (  double    x[3], double    origin[3], double    normal[3], double    xproj[3] )  [static]

Project a point x onto plane defined by origin and normal. The projected point is returned in xproj. NOTE : normal assumed to have magnitude 1.

void vtkPlane::GeneralizedProjectPoint (  float    x[3], float    origin[3], float    normal[3], float    xproj[3] )  [static]

Project a point x onto plane defined by origin and normal. The projected point is returned in xproj. NOTE : normal does NOT have to have magnitude 1.

float vtkPlane::Evaluate (  float    normal[3], float    origin[3], float    x[3] )  [inline, static]

Quick evaluation of plane equation n(x-origin)=0. Definition at line 147 of file vtkPlane.h.

float vtkPlane::Evaluate (  double    normal[3], double    origin[3], double    x[3] )  [inline, static]

Quick evaluation of plane equation n(x-origin)=0. Definition at line 152 of file vtkPlane.h.

float vtkPlane::DistanceToPlane (  float    x[3], float    n[3], float    p0[3] )  [inline, static]

Return the distance of a point x to a plane defined by n(x-p0) = 0. The normal n[3] must be magnitude=1. Definition at line 158 of file vtkPlane.h.

int vtkPlane::IntersectWithLine (  float    p1[3], float    p2[3], float    n[3], float    p0[3], float &    t, float    x[3] )  [static]

Given a line defined by the two points p1,p2; and a plane defined by the normal n and point p0, compute an intersection. The parametric coordinate along the line is returned in t, and the coordinates of intersection are returned in x. A zero is returned if the plane and line are parallel.

---

Member Data Documentation

float vtkPlane::Normal[3] [protected]

Definition at line 139 of file vtkPlane.h.

float vtkPlane::Origin[3] [protected]

Definition at line 140 of file vtkPlane.h.

---

The documentation for this class was generated from the following file:

• Common/vtkPlane.h

---
