vtkPlanes Class Reference

implicit function for convex set of planes. More...

#include <vtkPlanes.h>

Inheritance diagram for vtkPlanes:

Inheritance graph
[legend]

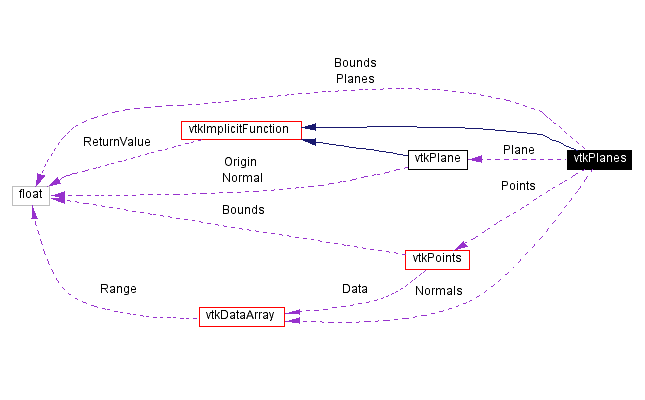

Collaboration diagram for vtkPlanes:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void EvaluateGradient (float x[3], float n[3])
void SetFrustumPlanes (float planes[24])
int GetNumberOfPlanes ()
vtkPlaneGetPlane (int i)
float EvaluateFunction (float x[3])
float EvaluateFunction (float x, float y, float z)
virtual void SetPoints (vtkPoints *)
virtual vtkPointsGetPoints ()
void SetNormals (vtkDataArray *normals)
virtual vtkDataArrayGetNormals ()
void SetBounds (float bounds[6])
void SetBounds (float xmin, float xmax, float ymin, float ymax, float zmin, float zmax)

Static Public Methods

vtkPlanes * New ()
int IsTypeOf (const char *type)
vtkPlanes * SafeDownCast (vtkObject *o)

Protected Methods

 vtkPlanes ()
 ~vtkPlanes ()

Protected Attributes

vtkPointsPoints
vtkDataArrayNormals
vtkPlanePlane

Detailed Description

implicit function for convex set of planes.

Date:
2001/11/02 16:41:14
Revision:
1.8

vtkPlanes computes the implicit function and function gradient for a set of planes. The planes must define a convex space.

The function value is the closest first order distance of a point to the convex region defined by the planes. The function gradient is the plane normal at the function value. Note that the normals must point outside of the convex region. Thus, a negative function value means that a point is inside the convex region.

There are several methods to define the set of planes. The most general is to supply an instance of vtkPoints and an instance of vtkDataArray. (The points define a point on the plane, and the normals corresponding plane normals.) Two other specialized ways are to 1) supply six planes defining the view frustrum of a camera, and 2) provide a bounding box.

See also:
vtkCamera
Tests:
vtkPlanes (Tests)

Definition at line 75 of file vtkPlanes.h.


Constructor & Destructor Documentation

vtkPlanes::vtkPlanes   [protected]


vtkPlanes::~vtkPlanes   [protected]



Member Function Documentation

vtkPlanes* vtkPlanes::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkPlanes::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImplicitFunction.

int vtkPlanes::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImplicitFunction.

virtual int vtkPlanes::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImplicitFunction.

vtkPlanes* vtkPlanes::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImplicitFunction.

void vtkPlanes::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImplicitFunction.

float vtkPlanes::EvaluateFunction float    x[3] [virtual]


Evaluate plane equations. Return smallest absolute value.

Reimplemented from vtkImplicitFunction.

float vtkPlanes::EvaluateFunction float    x,
float    y,
float    z
[inline]


Evaluate plane equations. Return smallest absolute value.

Reimplemented from vtkImplicitFunction.

Definition at line 85 of file vtkPlanes.h.

void vtkPlanes::EvaluateGradient float    x[3],
float    n[3]
[virtual]


Evaluate planes gradient.

Reimplemented from vtkImplicitFunction.

virtual void vtkPlanes::SetPoints vtkPoints   [virtual]


Specify a list of points defining points through which the planes pass.

virtual vtkPoints* vtkPlanes::GetPoints   [virtual]


Specify a list of points defining points through which the planes pass.

void vtkPlanes::SetNormals vtkDataArray   normals


Specify a list of normal vectors for the planes. There is a one-to-one correspondence between plane points and plane normals.

virtual vtkDataArray* vtkPlanes::GetNormals   [virtual]


Specify a list of normal vectors for the planes. There is a one-to-one correspondence between plane points and plane normals.

void vtkPlanes::SetFrustumPlanes float    planes[24]


An alternative method to specify six planes defined by the camera view frustrum. See vtkCamera::GetFrustumPlanes() documentation.

void vtkPlanes::SetBounds float    bounds[6]


An alternative method to specify six planes defined by a bounding box. The bounding box is a six-vector defined as (xmin,xmax,ymin,ymax,zmin,zmax). It defines six planes orthogonal to the x-y-z coordinate axes.

void vtkPlanes::SetBounds float    xmin,
float    xmax,
float    ymin,
float    ymax,
float    zmin,
float    zmax


An alternative method to specify six planes defined by a bounding box. The bounding box is a six-vector defined as (xmin,xmax,ymin,ymax,zmin,zmax). It defines six planes orthogonal to the x-y-z coordinate axes.

int vtkPlanes::GetNumberOfPlanes


Return the number of planes in the set of planes.

vtkPlane* vtkPlanes::GetPlane int    i


Create and return a pointer to a vtkPlane object at the ith position. It is your responsibility to delete the vtkPlane when done with it. Asking for a plane outside the allowable range returns NULL.


Member Data Documentation

vtkPoints* vtkPlanes::Points [protected]


Definition at line 132 of file vtkPlanes.h.

vtkDataArray* vtkPlanes::Normals [protected]


Definition at line 133 of file vtkPlanes.h.

vtkPlane* vtkPlanes::Plane [protected]


Definition at line 134 of file vtkPlanes.h.


The documentation for this class was generated from the following file:
