vtkPolyDataToImageStencil Class Reference

clip an image with polydata. More...

#include <vtkPolyDataToImageStencil.h>

Inheritance diagram for vtkPolyDataToImageStencil:

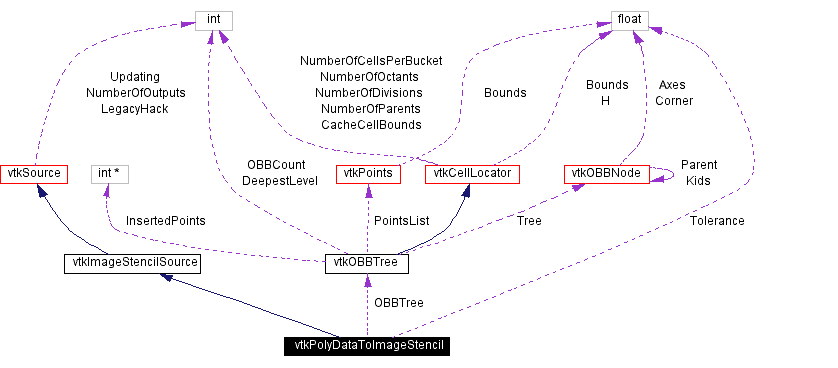

[legend]Collaboration diagram for vtkPolyDataToImageStencil:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetInput (vtkPolyData *input)
vtkPolyData *	GetInput ()
virtual void	SetTolerance (float)
virtual float	GetTolerance ()
Static Public Methods
vtkPolyDataToImageStencil *	New ()
int	IsTypeOf (const char *type)
vtkPolyDataToImageStencil *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkPolyDataToImageStencil ()
	~vtkPolyDataToImageStencil ()
void	operator= (const vtkPolyDataToImageStencil &)
void	ExecuteData (vtkDataObject *out)
void	ThreadedExecute (vtkImageStencilData *output, int extent[6], int threadId)
Protected Attributes
float	Tolerance
vtkOBBTree *	OBBTree

---

Detailed Description

clip an image with polydata.

Date:

2001/10/11 13:37:25

Revision:

1.4

Thanks:

Thanks to David G. Gobbi who developed this class.

vtkPolyDataToImageStencil will convert a vtkPolyData into an image that can be used with vtkImageStecil or other vtk classes that apply a stencil to an image.

See also:

vtkPolyData vtkImageStencil vtkImplicitFunctionToImageStencil

Tests:

vtkPolyDataToImageStencil (Tests)

Definition at line 65 of file vtkPolyDataToImageStencil.h.

---

Constructor & Destructor Documentation

vtkPolyDataToImageStencil::vtkPolyDataToImageStencil (    )  [protected]

vtkPolyDataToImageStencil::~vtkPolyDataToImageStencil (    )  [protected]

---

Member Function Documentation

vtkPolyDataToImageStencil* vtkPolyDataToImageStencil::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageStencilSource.

virtual const char* vtkPolyDataToImageStencil::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageStencilSource.

int vtkPolyDataToImageStencil::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageStencilSource.

virtual int vtkPolyDataToImageStencil::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageStencilSource.

vtkPolyDataToImageStencil* vtkPolyDataToImageStencil::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageStencilSource.

void vtkPolyDataToImageStencil::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageStencilSource.

void vtkPolyDataToImageStencil::SetInput (  vtkPolyData *    input )

Specify the polydata to convert into a stencil.

vtkPolyData* vtkPolyDataToImageStencil::GetInput (    )

Specify the polydata to convert into a stencil.

virtual void vtkPolyDataToImageStencil::SetTolerance (  float    )  [virtual]

Set the tolerance for doing spatial searches of the polydata.

virtual float vtkPolyDataToImageStencil::GetTolerance (    )  [virtual]

Set the tolerance for doing spatial searches of the polydata.

void vtkPolyDataToImageStencil::operator= (  const vtkPolyDataToImageStencil &    )  [protected]

void vtkPolyDataToImageStencil::ExecuteData (  vtkDataObject *    out )  [protected]

Reimplemented from vtkImageStencilSource.

void vtkPolyDataToImageStencil::ThreadedExecute (  vtkImageStencilData *    output, int    extent[6], int    threadId )  [protected, virtual]

Override this method to support clipping with different kinds of objects. Eventually the extent could be split up and handled by multiple threads, but it isn't for now. But please ensure that all code inside this method is thread-safe. Reimplemented from vtkImageStencilSource.

---

Member Data Documentation

float vtkPolyDataToImageStencil::Tolerance [protected]

Definition at line 93 of file vtkPolyDataToImageStencil.h.

vtkOBBTree* vtkPolyDataToImageStencil::OBBTree [protected]

Definition at line 94 of file vtkPolyDataToImageStencil.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkPolyDataToImageStencil.h

---
