vtkImageStencil Class Reference

combine images via a cookie-cutter operation. More...

#include <vtkImageStencil.h>

Inheritance diagram for vtkImageStencil:

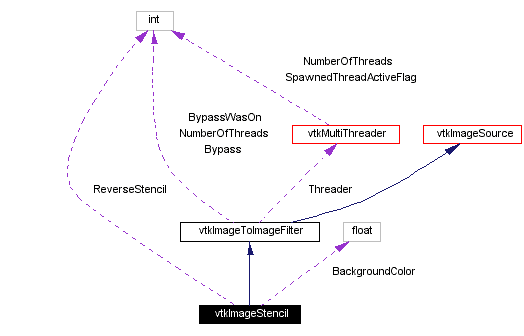

[legend]Collaboration diagram for vtkImageStencil:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetStencil (vtkImageStencilData *stencil)
vtkImageStencilData *	GetStencil ()
virtual void	SetReverseStencil (int)
virtual void	ReverseStencilOn ()
virtual void	ReverseStencilOff ()
virtual int	GetReverseStencil ()
virtual void	SetBackgroundInput (vtkImageData *input)
vtkImageData *	GetBackgroundInput ()
void	SetBackgroundValue (float val)
float	GetBackgroundValue ()
virtual void	SetBackgroundColor (float, float, float, float)
virtual void	SetBackgroundColor (float[4])
virtual float *	GetBackgroundColor ()
virtual void	GetBackgroundColor (float &, float &, float &, float &)
virtual void	GetBackgroundColor (float[4])
Static Public Methods
vtkImageStencil *	New ()
int	IsTypeOf (const char *type)
vtkImageStencil *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageStencil ()
	~vtkImageStencil ()
void	ExecuteInformation ()
void	ExecuteInformation (vtkImageData *inData, vtkImageData *outData)
void	ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int id)
Protected Attributes
int	ReverseStencil
float	BackgroundColor [4]

---

Detailed Description

combine images via a cookie-cutter operation.

Date:

2001/10/11 13:37:54

Revision:

1.4

Thanks:

Thanks to David G Gobbi who developed this class.

vtkImageStencil will combine two images together using a stencil. The stencil should be provided in the form of a vtkImageStencilData,

Tests:

vtkImageStencil (Tests)

Definition at line 60 of file vtkImageStencil.h.

---

Constructor & Destructor Documentation

vtkImageStencil::vtkImageStencil (    )  [protected]

vtkImageStencil::~vtkImageStencil (    )  [protected]

---

Member Function Documentation

vtkImageStencil* vtkImageStencil::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageStencil::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

int vtkImageStencil::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

virtual int vtkImageStencil::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

vtkImageStencil* vtkImageStencil::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

void vtkImageStencil::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageToImageFilter.

virtual void vtkImageStencil::SetStencil (  vtkImageStencilData *    stencil )  [virtual]

Specify the stencil to use. The stencil can be created from a vtkImplicitFunction or a vtkPolyData.

vtkImageStencilData* vtkImageStencil::GetStencil (    )

Specify the stencil to use. The stencil can be created from a vtkImplicitFunction or a vtkPolyData.

virtual void vtkImageStencil::SetReverseStencil (  int    )  [virtual]

Reverse the stencil.

virtual void vtkImageStencil::ReverseStencilOn (    )  [virtual]

Reverse the stencil.

virtual void vtkImageStencil::ReverseStencilOff (    )  [virtual]

Reverse the stencil.

virtual int vtkImageStencil::GetReverseStencil (    )  [virtual]

Reverse the stencil.

virtual void vtkImageStencil::SetBackgroundInput (  vtkImageData *    input )  [virtual]

NOTE: Not yet implemented, use SetBackgroundValue instead. Set the second input. This image will be used for the 'outside' of the stencil. If not set, the output voxels will be filled with BackgroundValue instead.

vtkImageData* vtkImageStencil::GetBackgroundInput (    )

NOTE: Not yet implemented, use SetBackgroundValue instead. Set the second input. This image will be used for the 'outside' of the stencil. If not set, the output voxels will be filled with BackgroundValue instead.

void vtkImageStencil::SetBackgroundValue (  float    val )  [inline]

Set the default output value to use when the second input is not set. Definition at line 92 of file vtkImageStencil.h.

float vtkImageStencil::GetBackgroundValue (    )  [inline]

Set the default output value to use when the second input is not set. Definition at line 94 of file vtkImageStencil.h.

virtual void vtkImageStencil::SetBackgroundColor (  float   , float   , float   , float    )  [virtual]

Set the default color to use when the second input is not set. This is like SetBackgroundValue, but for multi-component images.

virtual void vtkImageStencil::SetBackgroundColor (  float   [4] )  [virtual]

Set the default color to use when the second input is not set. This is like SetBackgroundValue, but for multi-component images.

virtual float* vtkImageStencil::GetBackgroundColor (    )  [virtual]

Set the default color to use when the second input is not set. This is like SetBackgroundValue, but for multi-component images.

virtual void vtkImageStencil::GetBackgroundColor (  float &   , float &   , float &   , float &    )  [virtual]

Set the default color to use when the second input is not set. This is like SetBackgroundValue, but for multi-component images.

virtual void vtkImageStencil::GetBackgroundColor (  float   [4] )  [virtual]

Set the default color to use when the second input is not set. This is like SetBackgroundValue, but for multi-component images.

void vtkImageStencil::ExecuteInformation (    )  [inline, protected, virtual]

Reimplemented from vtkImageToImageFilter. Definition at line 109 of file vtkImageStencil.h.

void vtkImageStencil::ExecuteInformation (  vtkImageData *    inData, vtkImageData *    outData )  [protected, virtual]

Reimplemented from vtkImageToImageFilter.

void vtkImageStencil::ThreadedExecute (  vtkImageData *    inData, vtkImageData *    outData, int    extent[6], int    id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkImageToImageFilter.

---

Member Data Documentation

int vtkImageStencil::ReverseStencil [protected]

Definition at line 116 of file vtkImageStencil.h.

float vtkImageStencil::BackgroundColor[4] [protected]

Definition at line 117 of file vtkImageStencil.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageStencil.h

---
