vtkProperty2D Class Reference

#include <vtkProperty2D.h>

Inheritance diagram for vtkProperty2D:

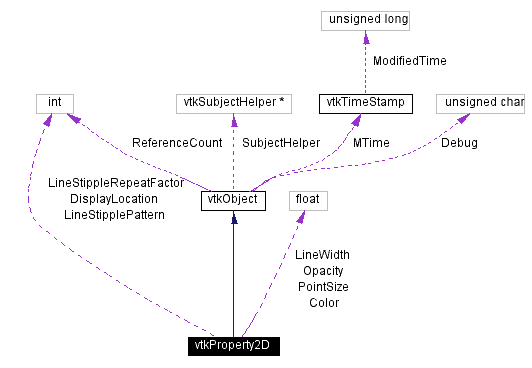

[legend]Collaboration diagram for vtkProperty2D:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	DeepCopy (vtkProperty2D *p)
virtual void	Render (vtkViewport *vtkNotUsed(viewport))
virtual void	SetColor (float, float, float)
virtual void	SetColor (float[3])
virtual float *	GetColor ()
virtual void	GetColor (float data[3])
virtual float	GetOpacity ()
virtual void	SetOpacity (float)
virtual void	SetPointSize (float)
virtual float	GetPointSize ()
virtual void	SetLineWidth (float)
virtual float	GetLineWidth ()
virtual void	SetLineStipplePattern (int)
virtual int	GetLineStipplePattern ()
virtual void	SetLineStippleRepeatFactor (int)
virtual int	GetLineStippleRepeatFactor ()
virtual void	SetDisplayLocation (int)
virtual int	GetDisplayLocation ()
void	SetDisplayLocationToBackground ()
void	SetDisplayLocationToForeground ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkProperty2D *	SafeDownCast (vtkObject *o)
vtkProperty2D *	New ()
Protected Methods
	vtkProperty2D ()
	~vtkProperty2D ()
Protected Attributes
float	Color [3]
float	Opacity
float	PointSize
float	LineWidth
int	LineStipplePattern
int	LineStippleRepeatFactor
int	DisplayLocation

---

Detailed Description

Date:

2001/10/11 13:36:22

Revision:

1.24

Thanks:

Thanks to Matt Turek who developed this class.

vtkProperty2D contains properties used to render two dimensional images and annotations.

See also:

vtkActor2D

Definition at line 63 of file vtkProperty2D.h.

---

Constructor & Destructor Documentation

vtkProperty2D::vtkProperty2D (    )  [protected]

vtkProperty2D::~vtkProperty2D (    )  [protected]

---

Member Function Documentation

virtual const char* vtkProperty2D::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

int vtkProperty2D::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

virtual int vtkProperty2D::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

vtkProperty2D* vtkProperty2D::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject.

void vtkProperty2D::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkObject.

vtkProperty2D* vtkProperty2D::New (    )  [static]

Creates a vtkProperty2D with the following default values: Opacity 1, Color (1,1,1) Reimplemented from vtkObject.

void vtkProperty2D::DeepCopy (  vtkProperty2D *    p )

Assign one property to another.

virtual void vtkProperty2D::SetColor (  float   , float   , float    )  [virtual]

Set/Get the RGB color of this property.

virtual void vtkProperty2D::SetColor (  float   [3] )  [virtual]

Set/Get the RGB color of this property.

virtual float* vtkProperty2D::GetColor (    )  [virtual]

Set/Get the RGB color of this property.

virtual void vtkProperty2D::GetColor (  float    data[3] )  [virtual]

Set/Get the RGB color of this property.

virtual float vtkProperty2D::GetOpacity (    )  [virtual]

Set/Get the Opacity of this property.

virtual void vtkProperty2D::SetOpacity (  float    )  [virtual]

Set/Get the Opacity of this property.

virtual void vtkProperty2D::SetPointSize (  float    )  [virtual]

Set/Get the diameter of a Point. The size is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual float vtkProperty2D::GetPointSize (    )  [virtual]

Set/Get the diameter of a Point. The size is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual void vtkProperty2D::SetLineWidth (  float    )  [virtual]

Set/Get the width of a Line. The width is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual float vtkProperty2D::GetLineWidth (    )  [virtual]

Set/Get the width of a Line. The width is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual void vtkProperty2D::SetLineStipplePattern (  int    )  [virtual]

Set/Get the stippling pattern of a Line, as a 16-bit binary pattern (1 = pixel on, 0 = pixel off). This is only implemented for OpenGL. The default is 0xFFFF.

virtual int vtkProperty2D::GetLineStipplePattern (    )  [virtual]

Set/Get the stippling pattern of a Line, as a 16-bit binary pattern (1 = pixel on, 0 = pixel off). This is only implemented for OpenGL. The default is 0xFFFF.

virtual void vtkProperty2D::SetLineStippleRepeatFactor (  int    )  [virtual]

Set/Get the stippling repeat factor of a Line, which specifies how many times each bit in the pattern is to be repeated. This is only implemented for OpenGL. The default is 1.

virtual int vtkProperty2D::GetLineStippleRepeatFactor (    )  [virtual]

Set/Get the stippling repeat factor of a Line, which specifies how many times each bit in the pattern is to be repeated. This is only implemented for OpenGL. The default is 1.

virtual void vtkProperty2D::SetDisplayLocation (  int    )  [virtual]

The DisplayLocation is either background or foreground. If it is background, then this 2D actor will be drawn behind all 3D props or foreground 2D actors. If it is background, then this 2D actor will be drawn in front of all 3D props and background 2D actors. Within 2D actors of the same DisplayLocation type, order is determined by the order in which the 2D actors were added to the viewport.

virtual int vtkProperty2D::GetDisplayLocation (    )  [virtual]

The DisplayLocation is either background or foreground. If it is background, then this 2D actor will be drawn behind all 3D props or foreground 2D actors. If it is background, then this 2D actor will be drawn in front of all 3D props and background 2D actors. Within 2D actors of the same DisplayLocation type, order is determined by the order in which the 2D actors were added to the viewport.

void vtkProperty2D::SetDisplayLocationToBackground (    )  [inline]

The DisplayLocation is either background or foreground. If it is background, then this 2D actor will be drawn behind all 3D props or foreground 2D actors. If it is background, then this 2D actor will be drawn in front of all 3D props and background 2D actors. Within 2D actors of the same DisplayLocation type, order is determined by the order in which the 2D actors were added to the viewport. Definition at line 128 of file vtkProperty2D.h.

void vtkProperty2D::SetDisplayLocationToForeground (    )  [inline]

The DisplayLocation is either background or foreground. If it is background, then this 2D actor will be drawn behind all 3D props or foreground 2D actors. If it is background, then this 2D actor will be drawn in front of all 3D props and background 2D actors. Within 2D actors of the same DisplayLocation type, order is determined by the order in which the 2D actors were added to the viewport. Definition at line 130 of file vtkProperty2D.h.

virtual void vtkProperty2D::Render (  vtkViewport *vtkNotUsed(viewport)    )  [inline, virtual]

Have the device specific subclass render this property. Definition at line 136 of file vtkProperty2D.h.

---

Member Data Documentation

float vtkProperty2D::Color[3] [protected]

Definition at line 142 of file vtkProperty2D.h.

float vtkProperty2D::Opacity [protected]

Definition at line 143 of file vtkProperty2D.h.

float vtkProperty2D::PointSize [protected]

Definition at line 144 of file vtkProperty2D.h.

float vtkProperty2D::LineWidth [protected]

Definition at line 145 of file vtkProperty2D.h.

int vtkProperty2D::LineStipplePattern [protected]

Definition at line 146 of file vtkProperty2D.h.

int vtkProperty2D::LineStippleRepeatFactor [protected]

Definition at line 147 of file vtkProperty2D.h.

int vtkProperty2D::DisplayLocation [protected]

Definition at line 148 of file vtkProperty2D.h.

---

The documentation for this class was generated from the following file:

• Common/vtkProperty2D.h

---
