vtkRIBLight Class Reference

RIP Light. More...

#include <vtkRIBLight.h>

Inheritance diagram for vtkRIBLight:

Inheritance graph
[legend]

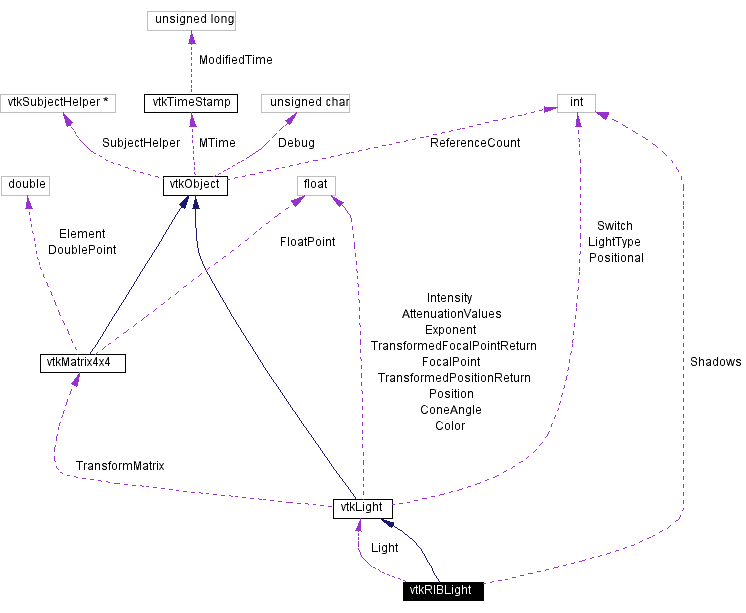

Collaboration diagram for vtkRIBLight:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void ShadowsOn ()
virtual void ShadowsOff ()
virtual void SetShadows (int)
virtual int GetShadows ()
void Render (vtkRenderer *ren, int index)

Static Public Methods

vtkRIBLight * New ()
int IsTypeOf (const char *type)
vtkRIBLight * SafeDownCast (vtkObject *o)

Protected Methods

 vtkRIBLight ()
 ~vtkRIBLight ()

Protected Attributes

vtkLightLight
int Shadows

Detailed Description

RIP Light.

Date:
2001/10/11 13:37:26
Revision:
1.13

vtkRIBLight is a subclass of vtkLight that allows the user to specify light source shaders and shadow casting lights for use with RenderMan.

See also:
vtkRIBExporter
Tests:
vtkRIBLight (Tests)

Definition at line 64 of file vtkRIBLight.h.


Constructor & Destructor Documentation

vtkRIBLight::vtkRIBLight   [protected]


vtkRIBLight::~vtkRIBLight   [protected]



Member Function Documentation

vtkRIBLight* vtkRIBLight::New   [static]


Create a light with the focal point at the origin and its position set to (0,0,1). The light is a SceneLight, its color is white, intensity=1, and the light is turned on.

Reimplemented from vtkLight.

virtual const char* vtkRIBLight::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLight.

int vtkRIBLight::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLight.

virtual int vtkRIBLight::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLight.

vtkRIBLight* vtkRIBLight::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkLight.

void vtkRIBLight::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkLight.

virtual void vtkRIBLight::ShadowsOn   [virtual]


virtual void vtkRIBLight::ShadowsOff   [virtual]


virtual void vtkRIBLight::SetShadows int    [virtual]


virtual int vtkRIBLight::GetShadows   [virtual]


void vtkRIBLight::Render vtkRenderer   ren,
int    index
[virtual]


Abstract interface to renderer. Each concrete subclass of vtkLight will load its data into the graphics system in response to this method invocation. The actual loading is performed by a vtkLightDevice subclass, which will get created automatically.

Reimplemented from vtkLight.


Member Data Documentation

vtkLight* vtkRIBLight::Light [protected]


Definition at line 80 of file vtkRIBLight.h.

int vtkRIBLight::Shadows [protected]


Definition at line 81 of file vtkRIBLight.h.


The documentation for this class was generated from the following file:
