vtkRectilinearGrid Class Reference

a datset that is topologically regular with variable spacing in the three coordinate directions. More...

#include <vtkRectilinearGrid.h>

Inheritance diagram for vtkRectilinearGrid:

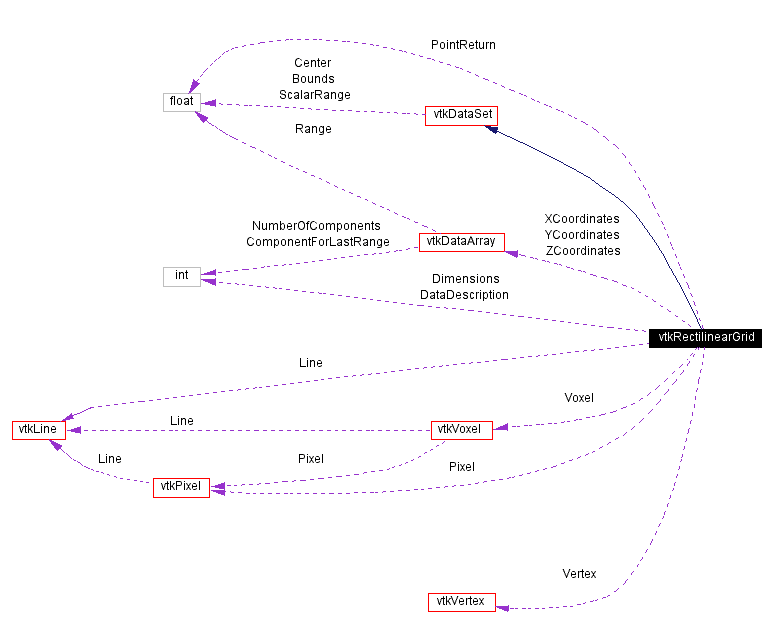

[legend]Collaboration diagram for vtkRectilinearGrid:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkDataObject *	MakeObject ()
int	GetDataObjectType ()
void	CopyStructure (vtkDataSet *ds)
void	Initialize ()
int	GetDataDimension ()
int	ComputeStructuredCoordinates (float x[3], int ijk[3], float pcoords[3])
vtkIdType	ComputePointId (int ijk[3])
vtkIdType	ComputeCellId (int ijk[3])
unsigned long	GetActualMemorySize ()

vtkIdType	GetNumberOfCells ()
vtkIdType	GetNumberOfPoints ()
float *	GetPoint (vtkIdType ptId)
void	GetPoint (vtkIdType id, float x[3])
vtkCell *	GetCell (vtkIdType cellId)
void	GetCell (vtkIdType cellId, vtkGenericCell *cell)
void	GetCellBounds (vtkIdType cellId, float bounds[6])
int	FindPoint (float x, float y, float z)
vtkIdType	FindPoint (float x[3])
vtkIdType	FindCell (float x[3], vtkCell cell, vtkIdType cellId, float tol2, int &subId, float pcoords[3], float weights)
vtkIdType	FindCell (float x[3], vtkCell cell, vtkGenericCell gencell, vtkIdType cellId, float tol2, int &subId, float pcoords[3], float *weights)
vtkCell *	FindAndGetCell (float x[3], vtkCell cell, vtkIdType cellId, float tol2, int &subId, float pcoords[3], float weights)
int	GetCellType (vtkIdType cellId)
void	GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)
void	GetPointCells (vtkIdType ptId, vtkIdList *cellIds)
void	ComputeBounds ()
int	GetMaxCellSize ()
void	GetCellNeighbors (vtkIdType cellId, vtkIdList ptIds, vtkIdList cellIds)

void	SetDimensions (int i, int j, int k)
void	SetDimensions (int dim[3])

virtual int *	GetDimensions ()
virtual void	GetDimensions (int data[3])

virtual void	SetXCoordinates (vtkDataArray *)
virtual vtkDataArray *	GetXCoordinates ()

virtual void	SetYCoordinates (vtkDataArray *)
virtual vtkDataArray *	GetYCoordinates ()

virtual void	SetZCoordinates (vtkDataArray *)
virtual vtkDataArray *	GetZCoordinates ()

void	SetUpdateExtent (int piece, int numPieces, int ghostLevel)
void	SetUpdateExtent (int piece, int numPieces)

void	SetUpdateExtent (int x1, int x2, int y1, int y2, int z1, int z2)
void	SetUpdateExtent (int ext[6])

void	SetExtent (int extent[6])
void	SetExtent (int x1, int x2, int y1, int y2, int z1, int z2)
virtual int *	GetExtent ()
virtual void	GetExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetExtent (int[6])

void	ShallowCopy (vtkDataObject *src)
void	DeepCopy (vtkDataObject *src)
Static Public Methods
vtkRectilinearGrid *	New ()
int	IsTypeOf (const char *type)
vtkRectilinearGrid *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkRectilinearGrid ()
	~vtkRectilinearGrid ()
int	GetExtentType ()
virtual void	Crop ()
Protected Attributes
vtkVertex *	Vertex
vtkLine *	Line
vtkPixel *	Pixel
vtkVoxel *	Voxel
int	Dimensions [3]
int	DataDescription
vtkDataArray *	XCoordinates
vtkDataArray *	YCoordinates
vtkDataArray *	ZCoordinates
float	PointReturn [3]

Detailed Description

a datset that is topologically regular with variable spacing in the three coordinate directions.

Date:: 2001/11/15 14:20:15

Revision:: 1.54

vtkRectilinearGrid is a data object that is a concrete implementation of vtkDataSet. vtkRectilinearGrid represents a geometric structure that is topologically regular with variable spacing in the three coordinate directions x-y-z.

To define a vtkRectilinearGrid, you must specify the dimensions of the data and provide three arrays of values specifying the coordinates along the x-y-z axes. The coordinate arrays are specified using three vtkDataArray objects (one for x, one for y, one for z).

Warning:: Make sure that the dimensions of the grid match the number of coordinates in the x-y-z directions. If not, unpredictable results (including program failure) may result. Also, you must supply coordinates in all three directions, even if the dataset topology is 2D, 1D, or 0D.

Examples:: vtkRectilinearGrid (Examples)

Tests:: vtkRectilinearGrid (Tests)

Definition at line 80 of file vtkRectilinearGrid.h.

Constructor & Destructor Documentation

vtkRectilinearGrid::vtkRectilinearGrid ( ) [protected]

vtkRectilinearGrid::~vtkRectilinearGrid ( ) [protected]

Member Function Documentation

vtkRectilinearGrid* vtkRectilinearGrid::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkDataObject.
Referenced by MakeObject().

virtual const char* vtkRectilinearGrid::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkDataSet.

int vtkRectilinearGrid::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkDataSet.

virtual int vtkRectilinearGrid::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkDataSet.

vtkRectilinearGrid* vtkRectilinearGrid::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkDataSet.

void vtkRectilinearGrid::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkDataSet.

vtkDataObject* vtkRectilinearGrid::MakeObject ( ) [inline, virtual]

Create a similar type object.
Reimplemented from vtkDataObject.
Definition at line 89 of file vtkRectilinearGrid.h.

int vtkRectilinearGrid::GetDataObjectType ( ) [inline, virtual]

Return what type of dataset this is.
Reimplemented from vtkDataSet.
Definition at line 92 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::CopyStructure ( vtkDataSet * ds ) [virtual]

Copy the geometric and topological structure of an input rectilinear grid object.
Reimplemented from vtkDataSet.

void vtkRectilinearGrid::Initialize ( ) [virtual]

Restore object to initial state. Release memory back to system.
Reimplemented from vtkDataSet.

vtkIdType vtkRectilinearGrid::GetNumberOfCells ( ) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.
Definition at line 261 of file vtkRectilinearGrid.h.

vtkIdType vtkRectilinearGrid::GetNumberOfPoints ( ) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.
Definition at line 281 of file vtkRectilinearGrid.h.

float* vtkRectilinearGrid::GetPoint ( vtkIdType ptId ) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

void vtkRectilinearGrid::GetPoint ( vtkIdType id,

float x[3]

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

vtkCell* vtkRectilinearGrid::GetCell ( vtkIdType cellId ) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

void vtkRectilinearGrid::GetCell ( vtkIdType cellId,

vtkGenericCell * cell

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

void vtkRectilinearGrid::GetCellBounds ( vtkIdType cellId,

float bounds[6]

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

int vtkRectilinearGrid::FindPoint ( float x,

float y,

float z

) [inline]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.
Definition at line 110 of file vtkRectilinearGrid.h.

vtkIdType vtkRectilinearGrid::FindPoint ( float x[3] ) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

vtkIdType vtkRectilinearGrid::FindCell ( float x[3],

vtkCell * cell,

vtkIdType cellId,

float tol2,

int & subId,

float pcoords[3],

float * weights

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

vtkIdType vtkRectilinearGrid::FindCell ( float x[3],

vtkCell * cell,

vtkGenericCell * gencell,

vtkIdType cellId,

float tol2,

int & subId,

float pcoords[3],

float * weights

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

vtkCell* vtkRectilinearGrid::FindAndGetCell ( float x[3],

vtkCell * cell,

vtkIdType cellId,

float tol2,

int & subId,

float pcoords[3],

float * weights

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetCellType ( vtkIdType cellId ) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

void vtkRectilinearGrid::GetCellPoints ( vtkIdType cellId,

vtkIdList * ptIds

) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.
Definition at line 121 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::GetPointCells ( vtkIdType ptId,

vtkIdList * cellIds

) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.
Definition at line 124 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::ComputeBounds ( ) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetMaxCellSize ( ) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.
Definition at line 127 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::GetCellNeighbors ( vtkIdType cellId,

vtkIdList * ptIds,

vtkIdList * cellIds

) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.
Reimplemented from vtkDataSet.

void vtkRectilinearGrid::SetDimensions ( int i,

int j,

int k

)

Set dimensions of rectilinear grid dataset. This also sets the extent.

void vtkRectilinearGrid::SetDimensions ( int dim[3] )

Set dimensions of rectilinear grid dataset. This also sets the extent.

virtual int* vtkRectilinearGrid::GetDimensions ( ) [virtual]

Get dimensions of this rectilinear grid dataset.

virtual void vtkRectilinearGrid::GetDimensions ( int data[3] ) [virtual]

Get dimensions of this rectilinear grid dataset.

int vtkRectilinearGrid::GetDataDimension ( ) [inline]

Return the dimensionality of the data.
Definition at line 286 of file vtkRectilinearGrid.h.

int vtkRectilinearGrid::ComputeStructuredCoordinates ( float x[3],

int ijk[3],

float pcoords[3]

)

Convenience function computes the structured coordinates for a point x[3]. The cell is specified by the array ijk[3], and the parametric coordinates in the cell are specified with pcoords[3]. The function returns a 0 if the point x is outside of the grid, and a 1 if inside the grid.

vtkIdType vtkRectilinearGrid::ComputePointId ( int ijk[3] ) [inline]

Given a location in structured coordinates (i-j-k), return the point id.
Definition at line 291 of file vtkRectilinearGrid.h.

vtkIdType vtkRectilinearGrid::ComputeCellId ( int ijk[3] ) [inline]

Given a location in structured coordinates (i-j-k), return the cell id.
Definition at line 296 of file vtkRectilinearGrid.h.

virtual void vtkRectilinearGrid::SetXCoordinates ( vtkDataArray * ) [virtual]

Specify the grid coordinates in the x-direction.

virtual vtkDataArray* vtkRectilinearGrid::GetXCoordinates ( ) [virtual]

Specify the grid coordinates in the x-direction.

virtual void vtkRectilinearGrid::SetYCoordinates ( vtkDataArray * ) [virtual]

Specify the grid coordinates in the y-direction.

virtual vtkDataArray* vtkRectilinearGrid::GetYCoordinates ( ) [virtual]

Specify the grid coordinates in the y-direction.

virtual void vtkRectilinearGrid::SetZCoordinates ( vtkDataArray * ) [virtual]

Specify the grid coordinates in the z-direction.

virtual vtkDataArray* vtkRectilinearGrid::GetZCoordinates ( ) [virtual]

Specify the grid coordinates in the z-direction.

void vtkRectilinearGrid::SetUpdateExtent ( int piece,

int numPieces,

int ghostLevel

)

Required for the lowest common denominator for setting the UpdateExtent (i.e. vtkDataSetToStructuredPointsFilter). This assumes that WholeExtent is valid (UpdateInformation has been called).

void vtkRectilinearGrid::SetUpdateExtent ( int piece,

int numPieces

) [inline]

Required for the lowest common denominator for setting the UpdateExtent (i.e. vtkDataSetToStructuredPointsFilter). This assumes that WholeExtent is valid (UpdateInformation has been called).
Reimplemented from vtkDataObject.
Definition at line 185 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::SetUpdateExtent ( int x1,

int x2,

int y1,

int y2,

int z1,

int z2

) [inline, virtual]

Call superclasses method to avoid hiding
Reimplemented from vtkDataObject.
Definition at line 191 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::SetUpdateExtent ( int ext[6] ) [inline, virtual]

Call superclasses method to avoid hiding
Reimplemented from vtkDataObject.
Definition at line 193 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::SetExtent ( int extent[6] )

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

void vtkRectilinearGrid::SetExtent ( int x1,

int x2,

int y1,

int y2,

int z1,

int z2

)

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual int* vtkRectilinearGrid::GetExtent ( ) [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkRectilinearGrid::GetExtent ( int & ,

int & ,

int & ,

int & ,

int & ,

int &

) [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkRectilinearGrid::GetExtent ( int [6] ) [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

unsigned long vtkRectilinearGrid::GetActualMemorySize ( ) [virtual]

Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE.
Reimplemented from vtkDataSet.

void vtkRectilinearGrid::ShallowCopy ( vtkDataObject * src ) [virtual]

Shallow and Deep copy.
Reimplemented from vtkDataSet.

void vtkRectilinearGrid::DeepCopy ( vtkDataObject * src ) [virtual]

Shallow and Deep copy.
Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetExtentType ( ) [inline, protected, virtual]

Reimplemented from vtkDataObject.
Definition at line 230 of file vtkRectilinearGrid.h.

virtual void vtkRectilinearGrid::Crop ( ) [protected, virtual]

Reallocates and copies to set the Extent to the UpdateExtent. This is used internally when the exact extent is requested, and the source generated more than the update extent.
Reimplemented from vtkDataObject.

Member Data Documentation

vtkVertex* vtkRectilinearGrid::Vertex [protected]

Definition at line 224 of file vtkRectilinearGrid.h.

vtkLine* vtkRectilinearGrid::Line [protected]

Definition at line 225 of file vtkRectilinearGrid.h.

vtkPixel* vtkRectilinearGrid::Pixel [protected]

Definition at line 226 of file vtkRectilinearGrid.h.

vtkVoxel* vtkRectilinearGrid::Voxel [protected]

Definition at line 227 of file vtkRectilinearGrid.h.

int vtkRectilinearGrid::Dimensions[3] [protected]

Definition at line 237 of file vtkRectilinearGrid.h.

int vtkRectilinearGrid::DataDescription [protected]

Definition at line 238 of file vtkRectilinearGrid.h.

vtkDataArray* vtkRectilinearGrid::XCoordinates [protected]

Definition at line 240 of file vtkRectilinearGrid.h.

vtkDataArray* vtkRectilinearGrid::YCoordinates [protected]

Definition at line 241 of file vtkRectilinearGrid.h.

vtkDataArray* vtkRectilinearGrid::ZCoordinates [protected]

Definition at line 242 of file vtkRectilinearGrid.h.

float vtkRectilinearGrid::PointReturn[3] [protected]

Definition at line 245 of file vtkRectilinearGrid.h.

The documentation for this class was generated from the following file:

Common/vtkRectilinearGrid.h

Generated on Thu Mar 28 14:41:10 2002 for VTK by

vtkRectilinearGrid Class Reference

Public Methods

Static Public Methods

Protected Methods

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
