vtkRenderLargeImage Class Reference

Use tiling to generate a large rendering. More...

#include <vtkRenderLargeImage.h>

Inheritance diagram for vtkRenderLargeImage:

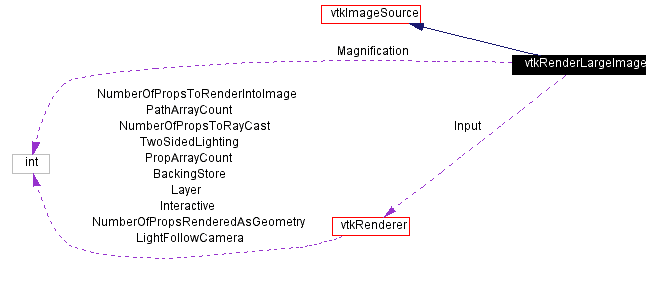

[legend]Collaboration diagram for vtkRenderLargeImage:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetMagnification (int)
virtual int	GetMagnification ()
virtual void	SetInput (vtkRenderer *)
virtual vtkRenderer *	GetInput ()
Static Public Methods
vtkRenderLargeImage *	New ()
int	IsTypeOf (const char *type)
vtkRenderLargeImage *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkRenderLargeImage ()
	~vtkRenderLargeImage ()
void	ExecuteData (vtkDataObject *data)
void	ExecuteInformation ()
Protected Attributes
int	Magnification
vtkRenderer *	Input

---

Detailed Description

Use tiling to generate a large rendering.

Date:

2001/10/11 13:37:26

Revision:

1.20

vtkRenderLargeImage provides methods needed to read a region from a file.

Examples:

vtkRenderLargeImage (Examples)

Tests:

vtkRenderLargeImage (Tests)

Definition at line 60 of file vtkRenderLargeImage.h.

---

Constructor & Destructor Documentation

vtkRenderLargeImage::vtkRenderLargeImage (    )  [protected]

vtkRenderLargeImage::~vtkRenderLargeImage (    )  [protected]

---

Member Function Documentation

vtkRenderLargeImage* vtkRenderLargeImage::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageSource.

virtual const char* vtkRenderLargeImage::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

int vtkRenderLargeImage::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

virtual int vtkRenderLargeImage::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

vtkRenderLargeImage* vtkRenderLargeImage::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageSource.

void vtkRenderLargeImage::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

virtual void vtkRenderLargeImage::SetMagnification (  int    )  [virtual]

The magnification of the current render window

virtual int vtkRenderLargeImage::GetMagnification (    )  [virtual]

The magnification of the current render window

virtual void vtkRenderLargeImage::SetInput (  vtkRenderer *    )  [virtual]

Indicates what renderer to get the pixel data from.

virtual vtkRenderer* vtkRenderLargeImage::GetInput (    )  [virtual]

Returns which renderer is being used as the source for the pixel data.

void vtkRenderLargeImage::ExecuteData (  vtkDataObject *    data )  [protected]

void vtkRenderLargeImage::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource.

---

Member Data Documentation

int vtkRenderLargeImage::Magnification [protected]

Definition at line 88 of file vtkRenderLargeImage.h.

vtkRenderer* vtkRenderLargeImage::Input [protected]

Definition at line 89 of file vtkRenderLargeImage.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkRenderLargeImage.h

---
