vtkStructuredGridReader Class Reference

read vtk structured grid data file. More...

#include <vtkStructuredGridReader.h>

Inheritance diagram for vtkStructuredGridReader:

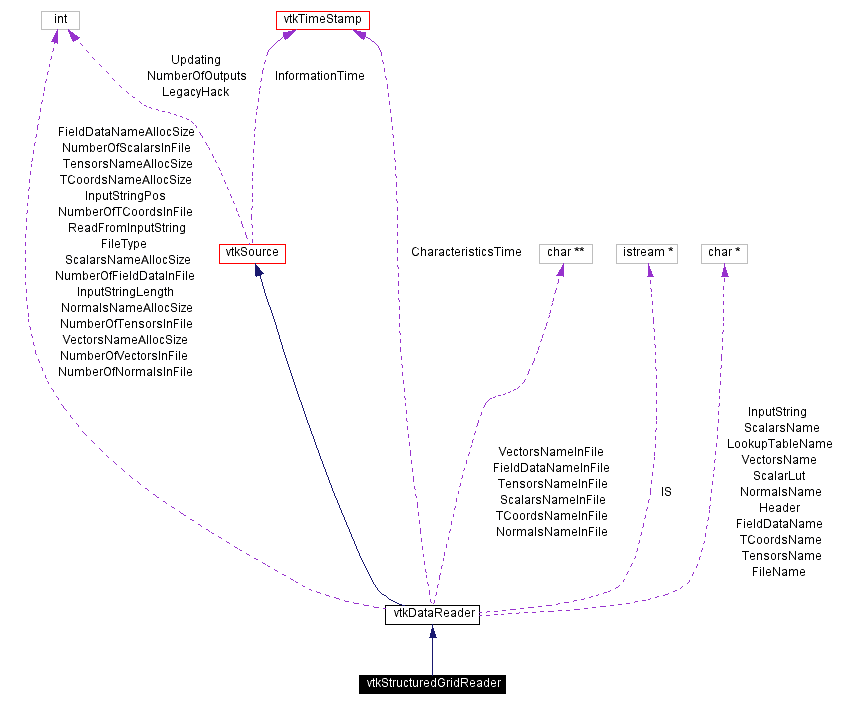

[legend]Collaboration diagram for vtkStructuredGridReader:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkStructuredGrid *	GetOutput ()
vtkStructuredGrid *	GetOutput (int idx)
void	SetOutput (vtkStructuredGrid *output)
Static Public Methods
vtkStructuredGridReader *	New ()
int	IsTypeOf (const char *type)
vtkStructuredGridReader *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkStructuredGridReader ()
	~vtkStructuredGridReader ()
void	ExecuteInformation ()
void	Execute ()

---

Detailed Description

read vtk structured grid data file.

Date:

2001/10/11 13:37:34

Revision:

1.43

vtkStructuredGridReader is a source object that reads ASCII or binary structured grid data files in vtk format. (see text for format details). The output of this reader is a single vtkStructuredGrid data object. The superclass of this class, vtkDataReader, provides many methods for controlling the reading of the data file, see vtkDataReader for more information.

Warning:

Binary files written on one system may not be readable on other systems.

See also:

vtkStructuredGrid vtkDataReader

Examples:

vtkStructuredGridReader (Examples)

Tests:

vtkStructuredGridReader (Tests)

Definition at line 70 of file vtkStructuredGridReader.h.

---

Constructor & Destructor Documentation

vtkStructuredGridReader::vtkStructuredGridReader (    )  [protected]

vtkStructuredGridReader::~vtkStructuredGridReader (    )  [protected]

---

Member Function Documentation

vtkStructuredGridReader* vtkStructuredGridReader::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkDataReader.

virtual const char* vtkStructuredGridReader::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataReader.

int vtkStructuredGridReader::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataReader.

virtual int vtkStructuredGridReader::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataReader.

vtkStructuredGridReader* vtkStructuredGridReader::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataReader.

void vtkStructuredGridReader::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkDataReader.

vtkStructuredGrid* vtkStructuredGridReader::GetOutput (    )

Get the output of this reader.

vtkStructuredGrid* vtkStructuredGridReader::GetOutput (  int    idx )  [inline]

Get the output of this reader. Reimplemented from vtkSource. Definition at line 80 of file vtkStructuredGridReader.h.

void vtkStructuredGridReader::SetOutput (  vtkStructuredGrid *    output )

Get the output of this reader.

void vtkStructuredGridReader::ExecuteInformation (    )  [protected, virtual]

Reimplemented from vtkSource.

void vtkStructuredGridReader::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

---

The documentation for this class was generated from the following file:

• IO/vtkStructuredGridReader.h

---
